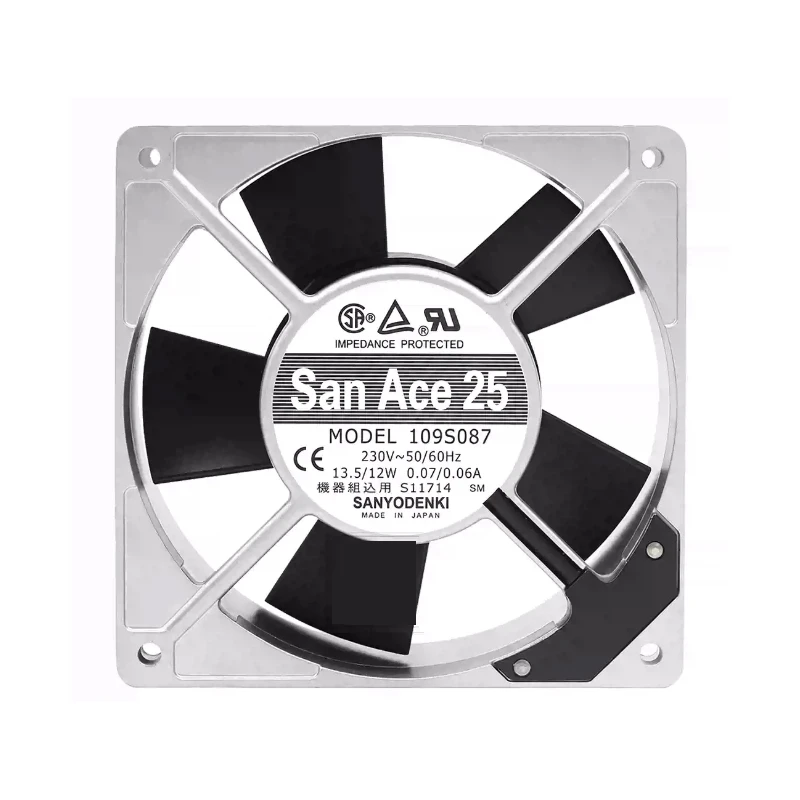

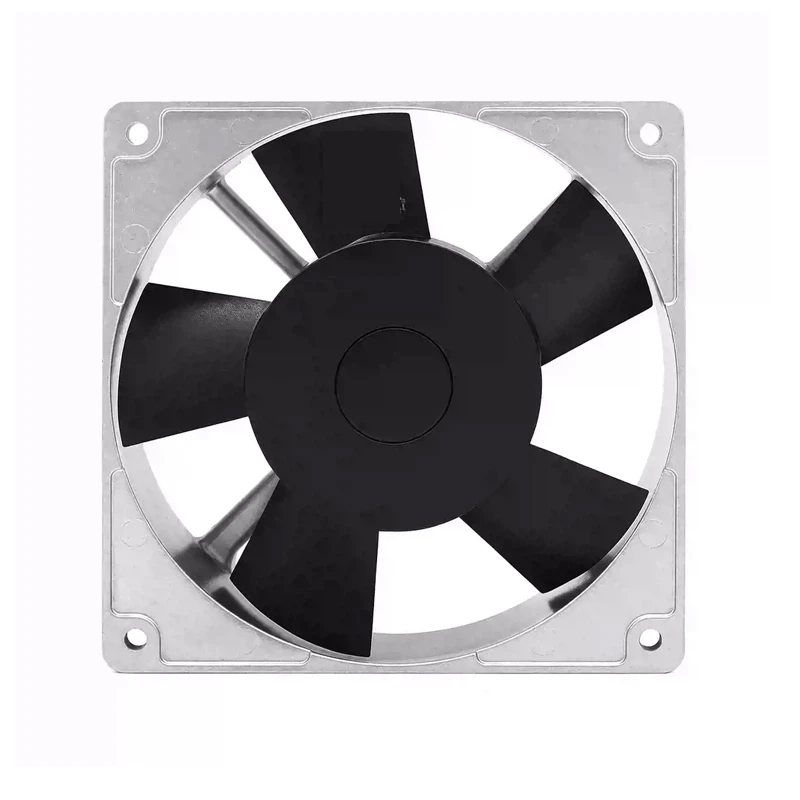

109S087 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S087 | Sanyo Denki 230VAC 13.5/12W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Designed for servers, UPS systems, and telecom equipment, Sanyo Denki 109S087 is a 230 VAC AC axial fan in a 120 × 120 × 25 mm frame. Its 2500/2900 rpm rating defines a lower-speed operating point. The series cooling function is confirmed; suffix-specific options require datasheet verification. Focus: replacement fit screening duty-point values.

Datasheet:: 109S087 | Sanyo Denki 230VAC 13.5/12W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	12012025
Max.Air Flow(m³/h)	117/138
Max.Pressure(Pa)	48/51.9
Input Power(W)	13.5/12
Speed(rpm)	2500/2900
Noise(db)	38/41

Product Features

Stable San Ace Fan

109S087 is intended for dependable forced-air cooling in automation controls, PLC cabinets and drive systems. This SANYO DENKI AC axial fan fits equipment designs where thermal stability affects service continuity.

Its 117/138 m3/h maximum airflow supports rapid air exchange, while 48/51.9 Pa pressure capability helps overcome resistance within the finished equipment. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Include filter loading in the airflow margin. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

SANYO DENKI 109S087 serves automation and electrical control cabinets that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

PLC Systems

109S087 is suitable for PLC and motion-control equipment. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service. Selection should follow the approved full model code.

Variable Speed Drives

The San Ace 109S087 supports thermal management in inverters and industrial drive systems. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

What supply voltage does 109S087 require?

The worksheet lists 230 VAC. Check polarity or AC frequency and the wiring diagram before commissioning.

What should be checked if 109S087 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What should procurement confirm for 109S087?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 109S087 be matched to an enclosure?

Check its 120 × 120 × 25 mm size, 117/138 m³/h airflow, 48/51.9 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109S087?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109S087?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.
