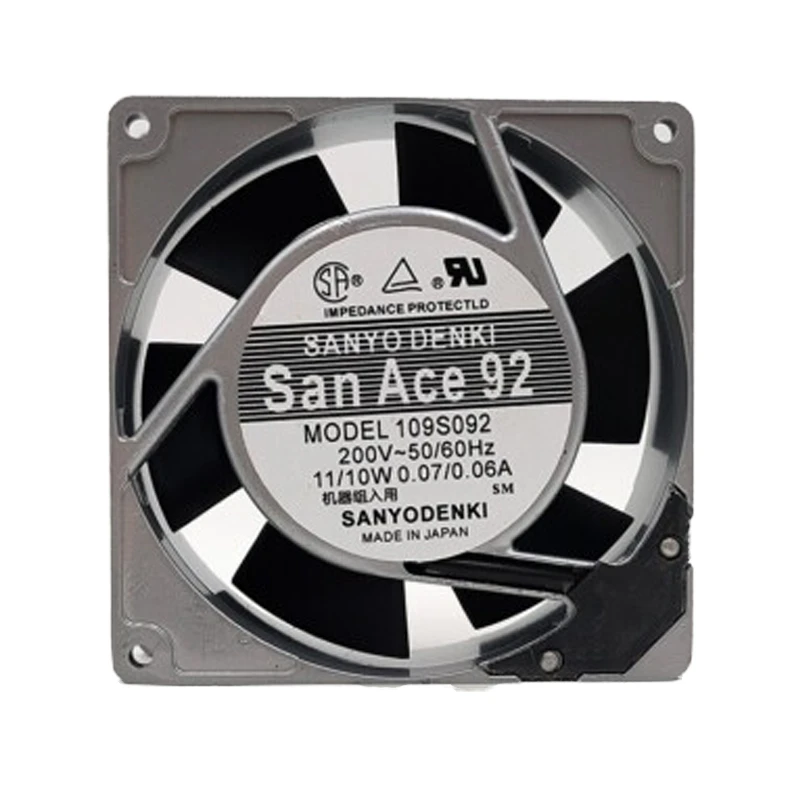

109S092 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S092 | Sanyo Denki 200VAC 11/10W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Sanyo Denki 109S092 combines a size not stated AC axial fan platform with a 200 VAC rating for servers, UPS systems, and telecom equipment. Series options require suffix verification. Its 2700/3100 rpm rating defines a lower-speed operating point. Focus: enclosure space planning duty-point values.

Datasheet:: 109S092 | Sanyo Denki 200VAC 11/10W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	200
Max.Air Flow(m³/h)	57/66
Max.Pressure(Pa)	39.2/49
Input Power(W)	11/10
Speed(rpm)	2700/3100
Noise(db)	35/38

Product Features

Low Vibration Fan

109S092 is intended for dependable forced-air cooling in automation controls, PLC cabinets and drive systems. This SANYO DENKI AC axial fan fits equipment designs where thermal stability affects service continuity.

The rated peak airflow of 57/66 m3/h combines with 39.2/49 Pa pressure capability to support useful flow after installation losses are considered. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Allow service access for fan replacement. This keeps sourcing decisions tied to validated system needs. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

For automation and electrical control cabinets, 109S092 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

PLC Systems

SANYO DENKI 109S092 serves PLC and motion-control equipment that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Variable Speed Drives

109S092 is suitable for inverters and industrial drive systems. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Frequently Asked Questions

What maintenance does 109S092 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 109S092 instead of a standard fan?

Its 200 VAC rating and documented its 2700/3100 rpm rating defines a lower-speed operating point. provide model-specific selection data without relying on unlisted claims.

How noisy is 109S092?

The worksheet lists 35/38 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What speed is listed for 109S092?

The listed speed is 2700/3100 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109S092?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.
