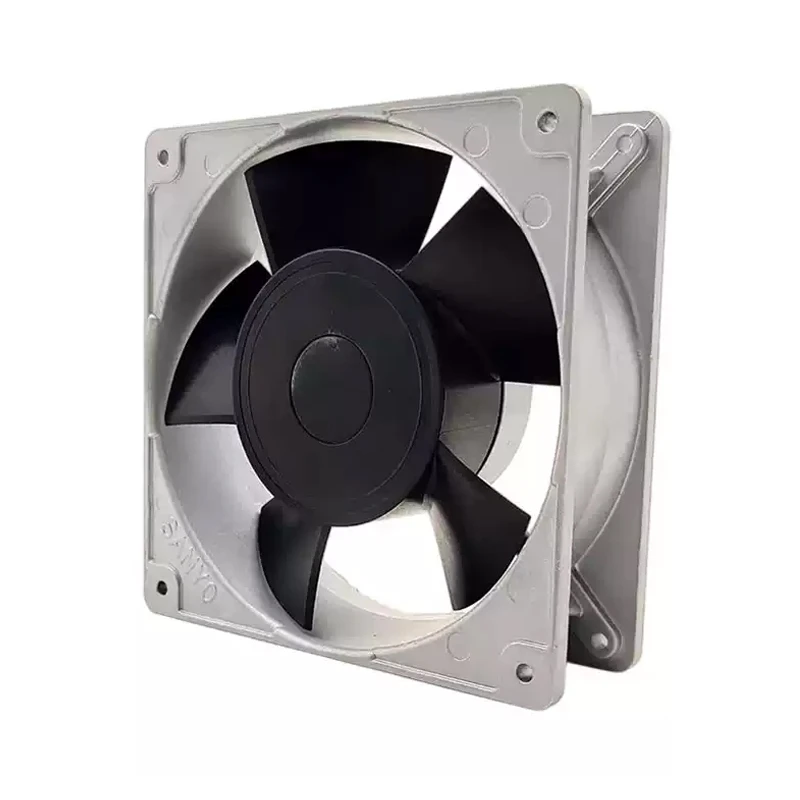

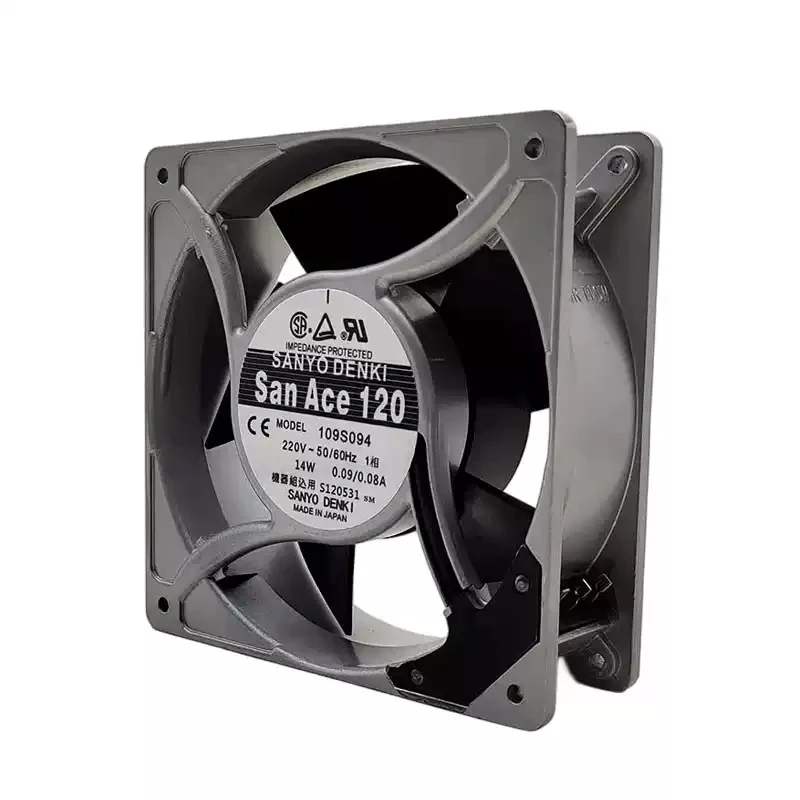

109S094 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S094 | Sanyo Denki 230VAC 10/9W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Sanyo Denki 109S094 combines a 92 × 92 × 25 mm AC axial fan platform with a 230 VAC rating for servers, UPS systems, and telecom equipment. The series cooling function is confirmed; suffix-specific options require datasheet verification. Its 2700/3100 rpm rating defines a lower-speed operating point. Focus: power budget review power demand.

Datasheet:: 109S094 | Sanyo Denki 230VAC 10/9W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	929225
Max.Air Flow(m³/h)	57/66
Max.Pressure(Pa)	39.2/49.0
Input Power(W)	10/9
Speed(rpm)	2700/3100
Noise(db)	35/38

Product Features

Pressure Cooling

109S094 brings San Ace AC axial fan cooling to automation controls, PLC cabinets and drive systems. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

A listed maximum airflow of 57/66 m3/h and maximum pressure of 39.2/49 Pa give engineers a clear basis for matching the fan to enclosure resistance. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Verify the mating connector and lead reach. This keeps sourcing decisions tied to validated system needs. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

109S094 is suitable for automation and electrical control cabinets. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

PLC Systems

The San Ace 109S094 supports thermal management in PLC and motion-control equipment. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Variable Speed Drives

For inverters and industrial drive systems, 109S094 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What input power is listed for 109S094?

The worksheet lists 10/9 W. Check supply capacity and operating conditions before commissioning.

Can 109S094 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

What bearing type does 109S094 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 109S094 be matched to an enclosure?

Check its 92 × 92 × 25 mm size, 57/66 m³/h airflow, 39.2/49.0 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109S094 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Related Products

S4D450-AU01-01 | ebm-papst 400V 205W AC Axial Fan for Refrigeration Cooling

Selected for Refrigeration Cooling, ebm-papst S4D450-AU01-01 is a 400 V AC axial fan, with a focus on a documented 205 W input rating. It gives engineers a clear comparison point. Its documented data supports integration planning.

S4D350-AP08-30 | ebm-papst 230V 115W AC Axial Fan for Refrigeration Cooling

Suited to Refrigeration Cooling, the ebm-papst S4D350-AP08-30 is a 230 V AC axial fan, whose supplied data highlights a documented 115 W input rating. The rating aids system-fit checks.

S4D560-AM03-01 | ebm-papst 400V 650W AC Axial Fan for Refrigeration Cooling

Selected for Refrigeration Cooling, ebm-papst S4D560-AM03-01 is a 400 V AC axial fan, noted for a listed airflow of 11,245 m³/h. This supports duty-point selection. Its documented data supports integration planning.

S4D500-AM03-02 | ebm-papst 400V 720W AC Axial Fan for Refrigeration Cooling

Specified for Refrigeration Cooling, the ebm-papst S4D500-AM03-02 is a 400 V AC axial fan, distinguished by a listed pressure capability of 140 Pa. It provides a practical sizing reference.

S4D450-AO14-01 | ebm-papst 400V 400W AC Axial Fan for Refrigeration Cooling

Applied in Refrigeration Cooling, ebm-papst S4D450-AO14-01 is a 400 V AC axial fan, offering a listed acoustic value of 56 dB. This assists electrical and mechanical review. Its documented data supports integration planning.

S4D450-AU01-02 | ebm-papst 400V 415W AC Axial Fan for Refrigeration Cooling

Suited to Refrigeration Cooling, ebm-papst S4D450-AU01-02 is a 400 V AC axial fan, distinguished by a listed acoustic value of 73 dB. The rating aids system-fit checks. Its documented data supports integration planning.
