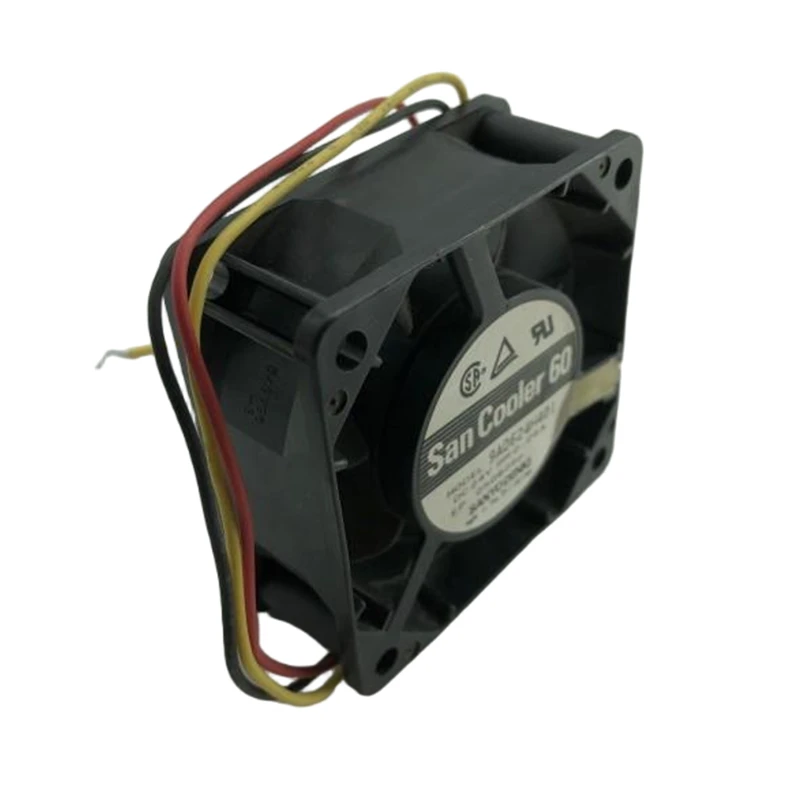

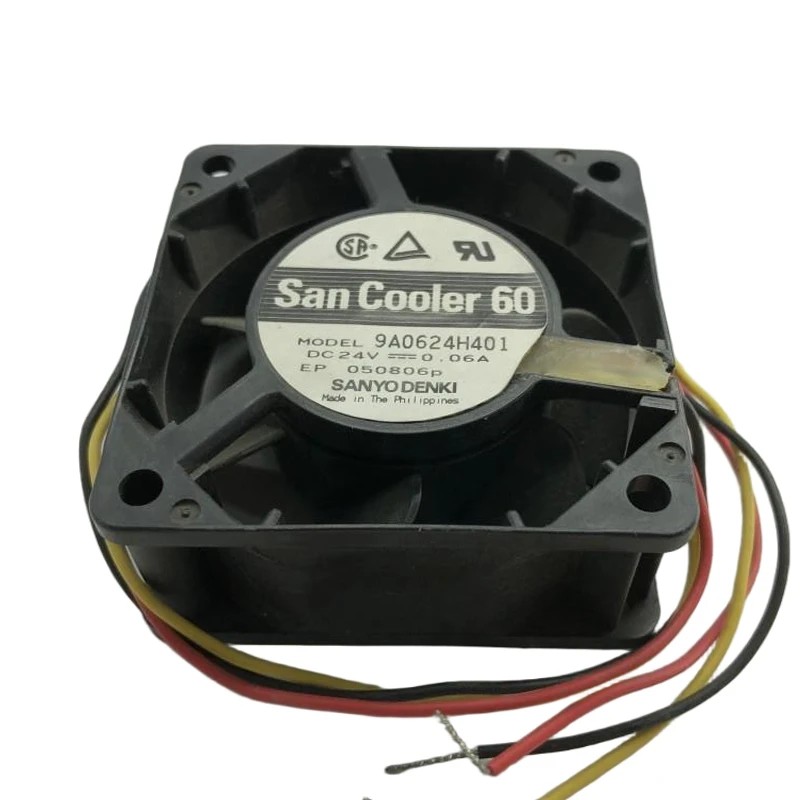

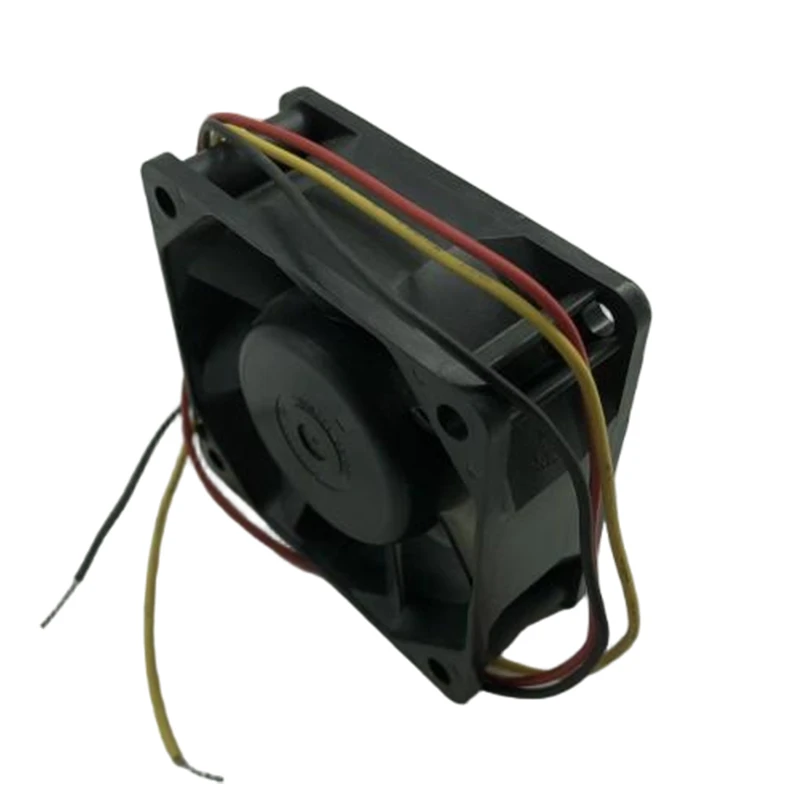

9A0624H401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9A0624H401 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 9A0624H401 addresses servers, UPS systems, and telecom equipment through a 24 VDC DC axial fan platform measuring 60 × 60 × 25 mm. Series focus: high airflow and pressure. A listed input of 1.44 W is the notable efficiency-related parameter. Check duty point matching duty-point values. Focus: duty point matching duty-point values.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	31.4
Max.Pressure(Pa)	40.2
Input Power(W)	1.44
Speed(rpm)	3800
Noise(db)	28

Product Features

Pressure Cooling

The San Ace 9A0624H401 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

A listed maximum airflow of 31.4 m3/h and maximum pressure of 40.2 Pa give engineers a clear basis for matching the fan to enclosure resistance. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Measure installed sound in the final cabinet. The result supports repeatable OEM assembly. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

9A0624H401 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

Storage Systems

The San Ace 9A0624H401 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

ICT Equipment

For network and other ICT hardware, 9A0624H401 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Frequently Asked Questions

Which application details matter most for 9A0624H401?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 9A0624H401?

The worksheet lists 31.4 m³/h. Compare the operating point with system resistance and the official performance curve.

Why choose 9A0624H401 instead of a standard fan?

Its 24 VDC rating and documented a listed input of 1.44 w is the notable efficiency-related parameter. provide model-specific selection data without relying on unlisted claims.

How noisy is 9A0624H401?

The worksheet lists 28 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

Can 9A0624H401 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
