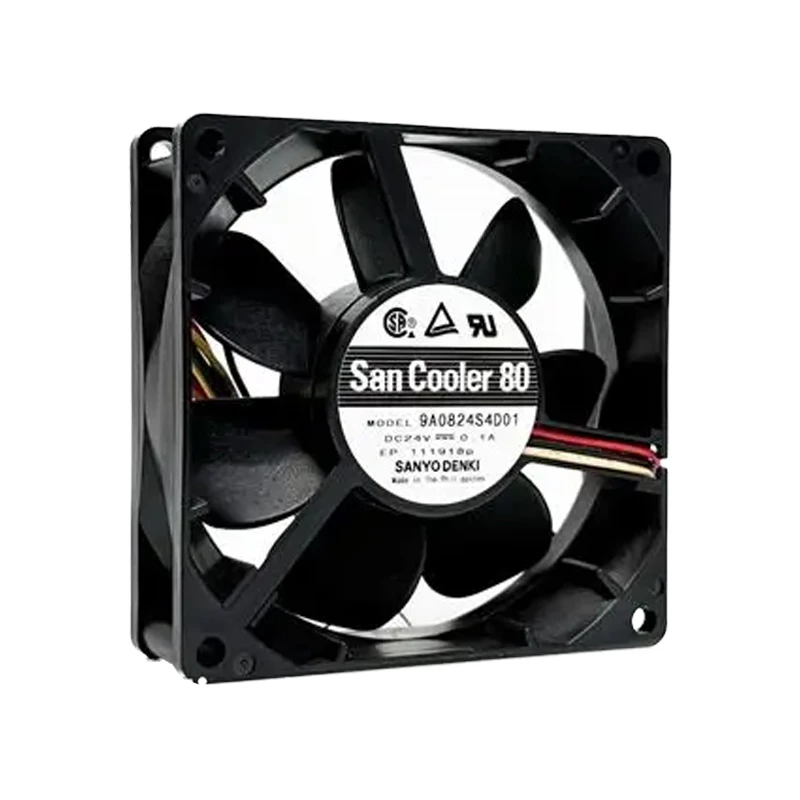

9A0824S4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9A0824S4D01 | Sanyo Denki 24VDC 2.4W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 80 × 80 × 25 mm frame and 24 VDC rating define 9A0824S4D01, a DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. 48.1 Pa maximum pressure is the most distinctive duty-point parameter. Check equipment integration review operating point.

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	71.4
Max.Pressure(Pa)	48.1
Input Power(W)	2.4
Speed(rpm)	3400
Noise(db)	34

Product Features

Efficient Cooling

9A0824S4D01 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 71.4 m3/h airflow and 48.1 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Test component temperatures at peak load. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 9A0824S4D01 supports thermal management in server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Storage Systems

For storage arrays and data appliances, 9A0824S4D01 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

ICT Equipment

SANYO DENKI 9A0824S4D01 serves network and other ICT hardware that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

What input power is listed for 9A0824S4D01?

The worksheet lists 2.4 W. Check supply capacity and operating conditions before commissioning.

What speed is listed for 9A0824S4D01?

The listed speed is 3400 rpm. Confirm control conditions and the actual duty point.

Is 9A0824S4D01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 9A0824S4D01 be matched to an enclosure?

Check its 80 × 80 × 25 mm size, 71.4 m³/h airflow, 48.1 Pa pressure, mounting points, airflow direction, and system resistance.

Is 9A0824S4D01 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Which application details matter most for 9A0824S4D01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.
