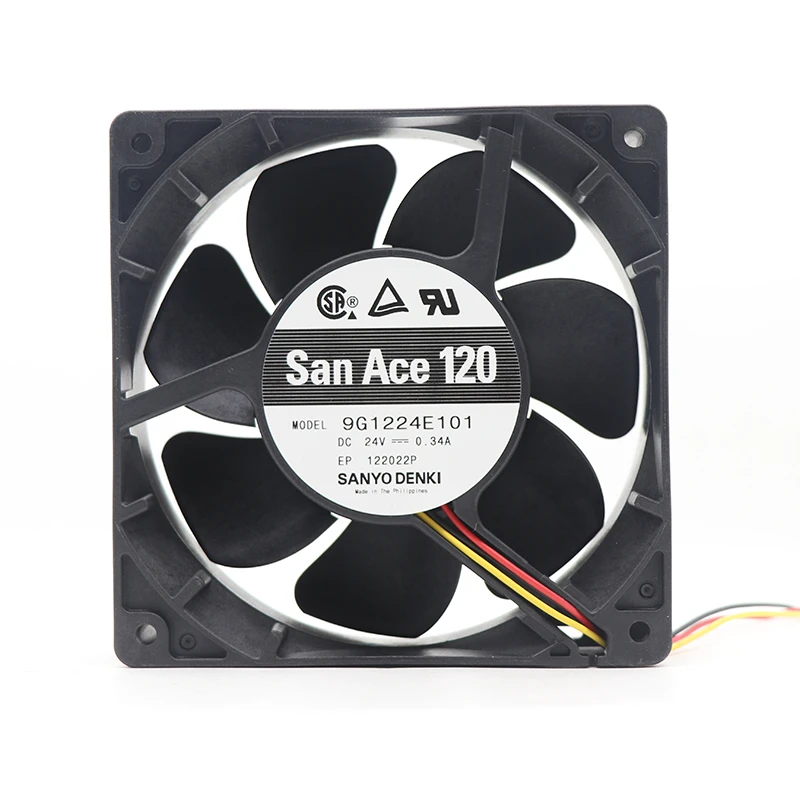

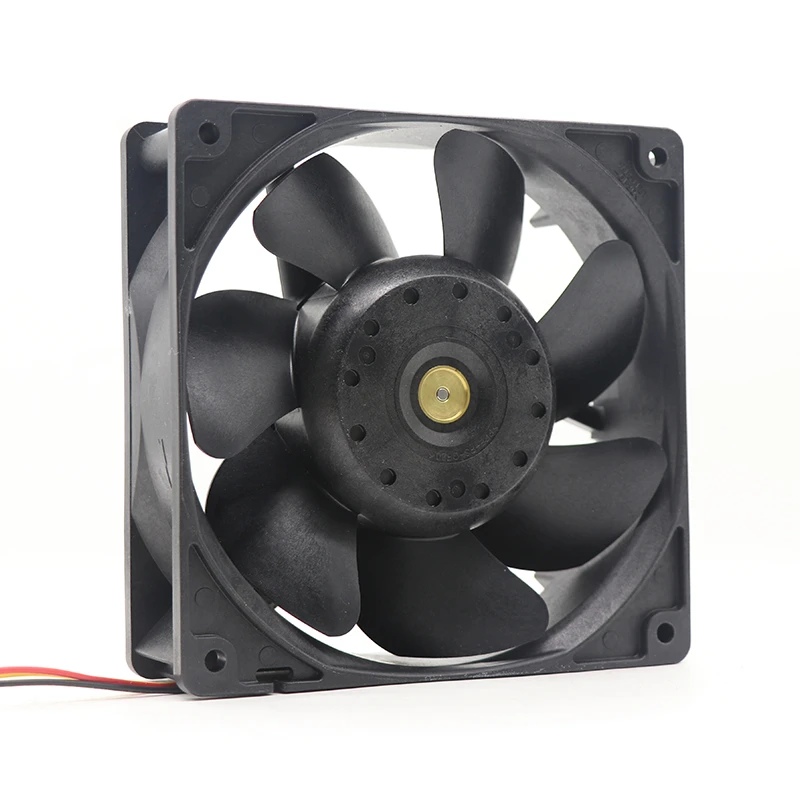

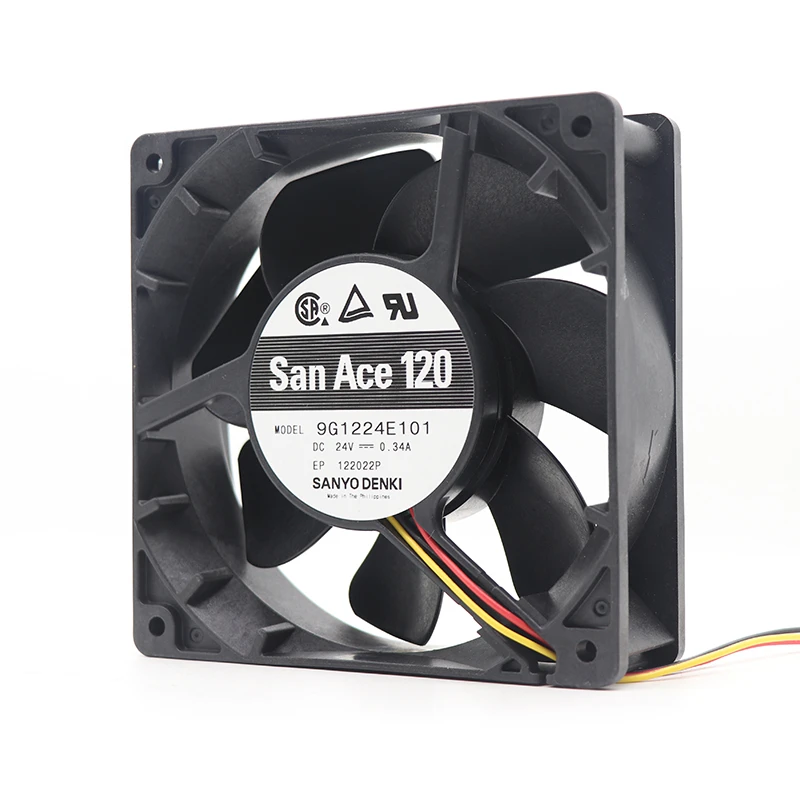

9G1224E101 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224E101 | Sanyo Denki 24VDC 8.16W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 9G1224E101 serves servers, UPS systems, and telecom equipment as a 119 × 119 × 38 mm DC axial fan rated at 24 VDC. High airflow is highlighted together with a high-static-pressure design. Its listed airflow of 201 m³/h is the standout performance value. Check wiring scheme review frame geometry. Selection focus: wiring scheme review frame geometry.

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	201
Max.Pressure(Pa)	100
Input Power(W)	8.16
Speed(rpm)	3100
Noise(db)	46

Product Features

Pressure Cooling

9G1224E101 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

A listed maximum airflow of 201 m3/h and maximum pressure of 100 Pa give engineers a clear basis for matching the fan to enclosure resistance. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Assess vibration transfer into enclosure panels. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

9G1224E101 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

Storage Systems

The San Ace 9G1224E101 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

ICT Equipment

For network and other ICT hardware, 9G1224E101 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Frequently Asked Questions

Is 9G1224E101 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 9G1224E101 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 9G1224E101 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 9G1224E101 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 201 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.

How noisy is 9G1224E101?

The worksheet lists 46 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
