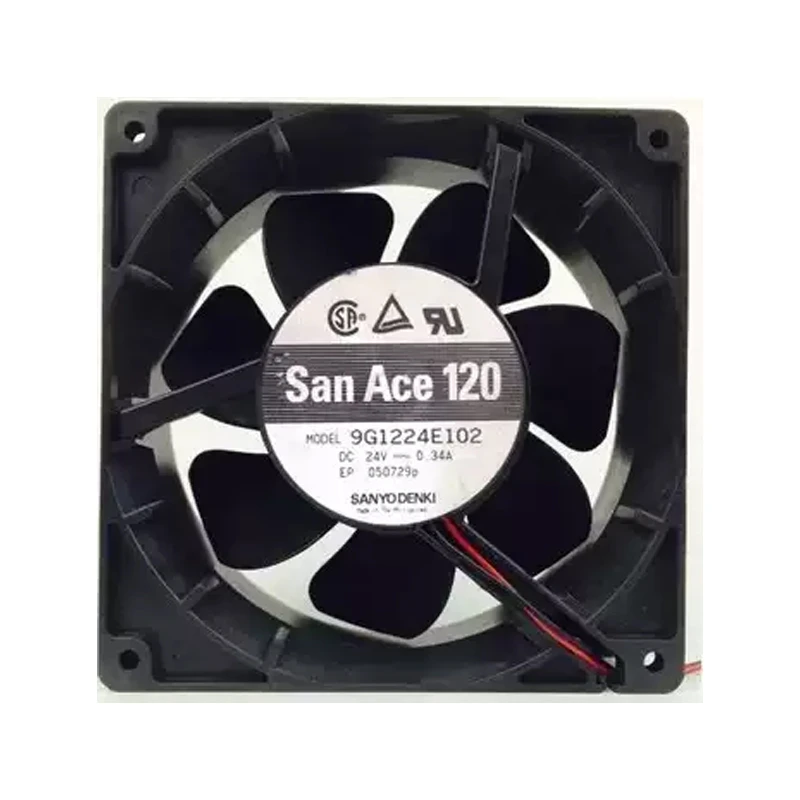

9G1224E102 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224E102 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 9G1224E102 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 120 × 120 × 38 mm dimensions. The 120 × 120 × 38 mm format is the primary stated selection detail. Treat the installation footprint as a primary input to controller selection. Verify the exact bearing and signal options in the datasheet.

Datasheet:: 9G1224E102 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038

Product Features

Reliable Fan Cooling

For servers, storage systems and ICT equipment, the SANYO DENKI 9G1224E102 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Verify mounting rigidity under continuous duty. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 9G1224E102 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

SANYO DENKI 9G1224E102 serves storage arrays and data appliances that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

9G1224E102 is suitable for network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Frequently Asked Questions

What should be checked if 9G1224E102 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What should procurement confirm for 9G1224E102?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 9G1224E102 have a pressure rating?

No pressure value is supplied; request the performance curve if static pressure is important.

Is 9G1224E102 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 9G1224E102 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
