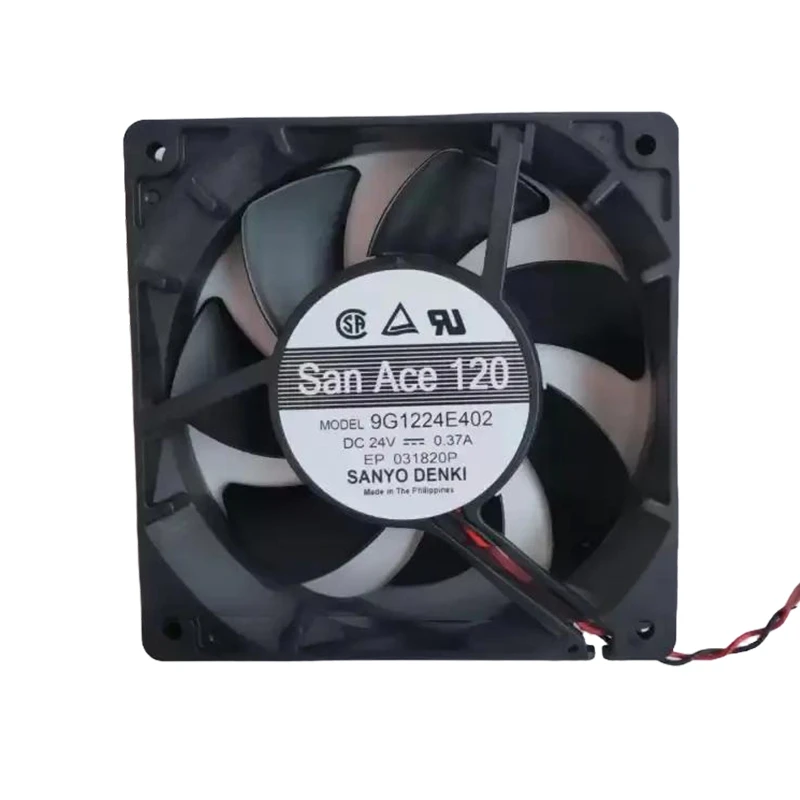

9G1224E402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224E402 | Sanyo Denki 24VDC 8.88W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 119 × 119 × 25 mm frame and 24 VDC rating define 9G1224E402, a DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Its listed airflow of 195.4 m³/h is the standout performance value. Check thermal margin assessment power demand. Focus: thermal margin assessment.

Datasheet:: 9G1224E402 | Sanyo Denki 24VDC 8.88W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911925
Max.Air Flow(m³/h)	195.4
Max.Pressure(Pa)	98.1
Input Power(W)	8.88
Speed(rpm)	3650
Noise(db)	48

Product Features

Pressure Cooling

9G1224E402 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

The rated peak airflow of 195.4 m3/h combines with 98.1 Pa pressure capability to support useful flow after installation losses are considered. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Verify the mating connector and lead reach. The process documents the required installation conditions. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 9G1224E402 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Storage Systems

SANYO DENKI 9G1224E402 serves storage arrays and data appliances that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

ICT Equipment

9G1224E402 is suitable for network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Frequently Asked Questions

What should procurement confirm for 9G1224E402?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 9G1224E402 have a pressure rating?

The worksheet lists 98.1 Pa. Use the official curve to match it to system resistance.

Is 9G1224E402 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 9G1224E402 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 9G1224E402 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.
