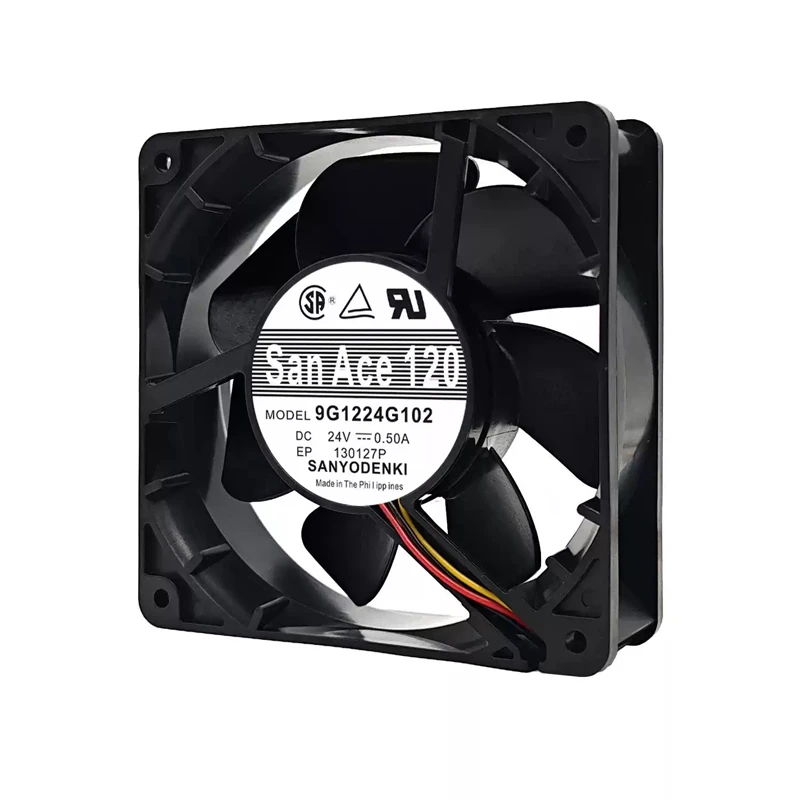

9G1224G102 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224G102 | Sanyo Denki 24VDC 12W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 9G1224G102 is a Sanyo Denki 24 VDC, 119 × 119 × 38 mm DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Review its frame geometry during mounting verification. Check the full suffix before confirming connector details. Focus: duty point matching suffix definition.

Datasheet:: 9G1224G102 | Sanyo Denki 24VDC 12W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	230.4
Max.Pressure(Pa)	135
Input Power(W)	12
Speed(rpm)	3600
Noise(db)	49

Product Features

High Airflow Design

The SANYO DENKI 9G1224G102 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 230.4 m3/h airflow and 135 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Allow service access for fan replacement. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 9G1224G102 supports thermal management in server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 9G1224G102 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 9G1224G102 serves network and other ICT hardware that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What is the lead time for 9G1224G102?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What input power is listed for 9G1224G102?

The worksheet lists 12 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 9G1224G102 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What should procurement confirm for 9G1224G102?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 9G1224G102 be matched to an enclosure?

Check its 119 × 119 × 38 mm size, 230.4 m³/h airflow, 135 Pa pressure, mounting points, airflow direction, and system resistance.

Is 9G1224G102 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.
