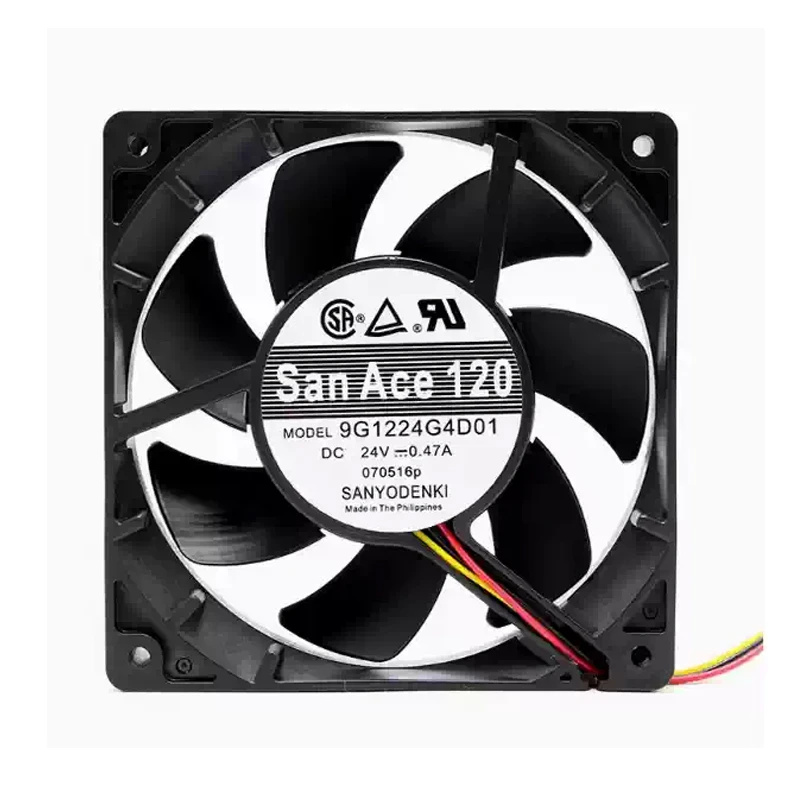

9G1224G4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9G1224G4D01 | Sanyo Denki 24VDC 11.28W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 119 × 119 × 25 mm Sanyo Denki 9G1224G4D01 brings 24 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. For cooling-margin review, start with the supplied pressure capability. Check the full suffix before confirming connector details. Focus: enclosure space planning.

Datasheet:: 9G1224G4D01 | Sanyo Denki 24VDC 11.28W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911925
Max.Air Flow(m³/h)	218.4
Max.Pressure(Pa)	120
Input Power(W)	11.28
Speed(rpm)	4100
Noise(db)	51

Product Features

High Airflow Design

For servers, storage systems and ICT equipment, the SANYO DENKI 9G1224G4D01 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

With up to 218.4 m3/h airflow and 120 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Verify the mating connector and lead reach. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 9G1224G4D01 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Storage Systems

For storage arrays and data appliances, 9G1224G4D01 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

ICT Equipment

SANYO DENKI 9G1224G4D01 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Frequently Asked Questions

Why choose 9G1224G4D01 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 218.4 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.

How noisy is 9G1224G4D01?

The worksheet lists 51 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What speed is listed for 9G1224G4D01?

The listed speed is 4100 rpm. Confirm control conditions and the actual duty point.

Is 9G1224G4D01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 9G1224G4D01 be matched to an enclosure?

Check its 119 × 119 × 25 mm size, 218.4 m³/h airflow, 120 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 9G1224G4D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.
