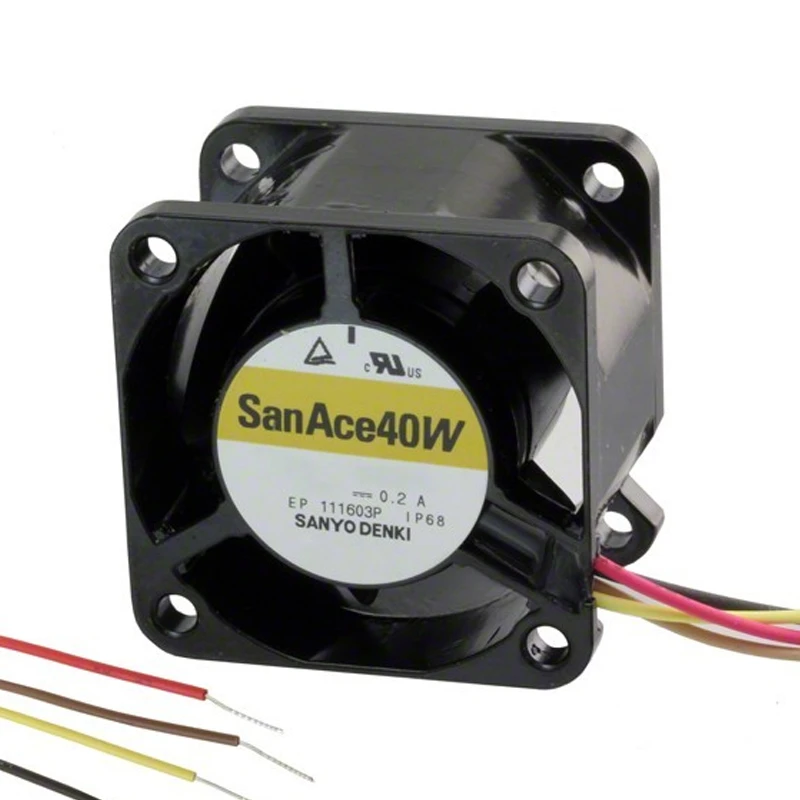

9GA0424P3M001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GA0424P3M001 | Sanyo Denki 24VDC 2.64W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 9GA0424P3M001 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 40 × 40 × 28 mm dimensions. 12500 rpm is the model's most prominent operating value. For airflow-path design, start with the supplied system interface. Obtain the applicable curve before final duty-point approval.

Datasheet:: 9GA0424P3M001 | Sanyo Denki 24VDC 2.64W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404028
Max.Air Flow(m³/h)	28
Max.Pressure(Pa)	258
Input Power(W)	2.64
Speed(rpm)	12500
Noise(db)	47

Product Features

Stable San Ace Fan

9GA0424P3M001 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 28 m3/h airflow and 258 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Confirm inlet clearance around nearby cables. This improves consistency between prototype and production. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 9GA0424P3M001 supports thermal management in server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 9GA0424P3M001 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 9GA0424P3M001 serves network and other ICT hardware that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What certifications apply to 9GA0424P3M001?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 9GA0424P3M001 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What airflow is listed for 9GA0424P3M001?

The worksheet lists 28 m³/h. Compare the operating point with system resistance and the official performance curve.

Why choose 9GA0424P3M001 instead of a standard fan?

Its 24 VDC rating and documented 12500 rpm is the model's most prominent operating value. provide model-specific selection data without relying on unlisted claims.

What input power is listed for 9GA0424P3M001?

The worksheet lists 2.64 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 9GA0424P3M001 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.
