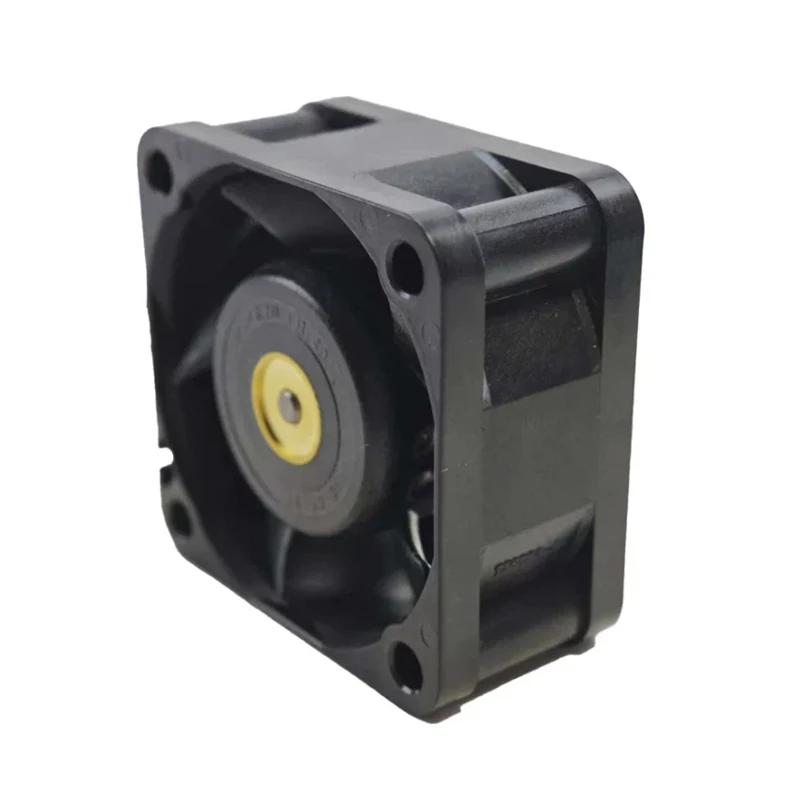

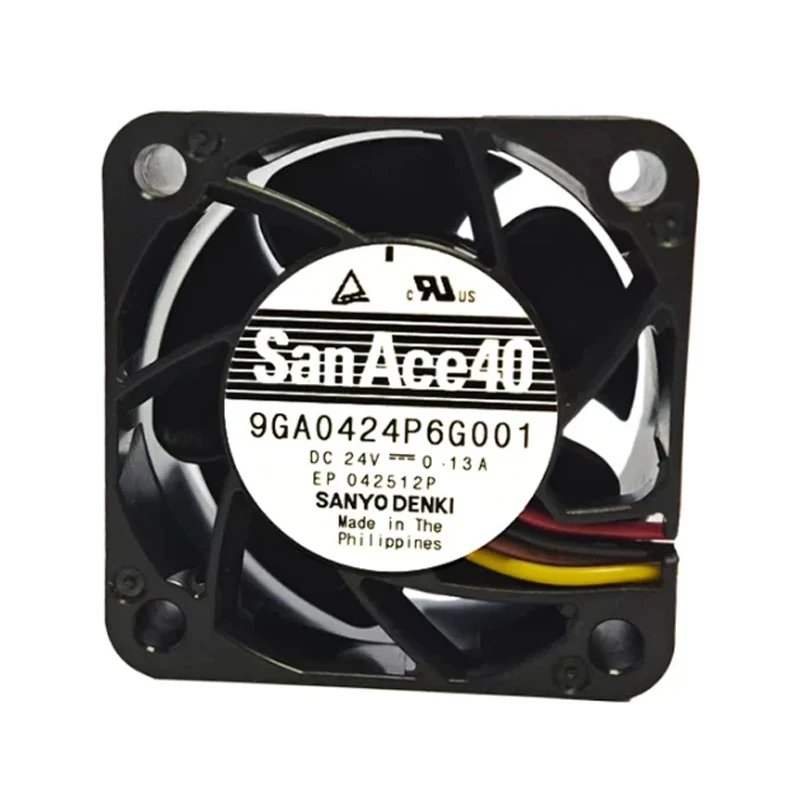

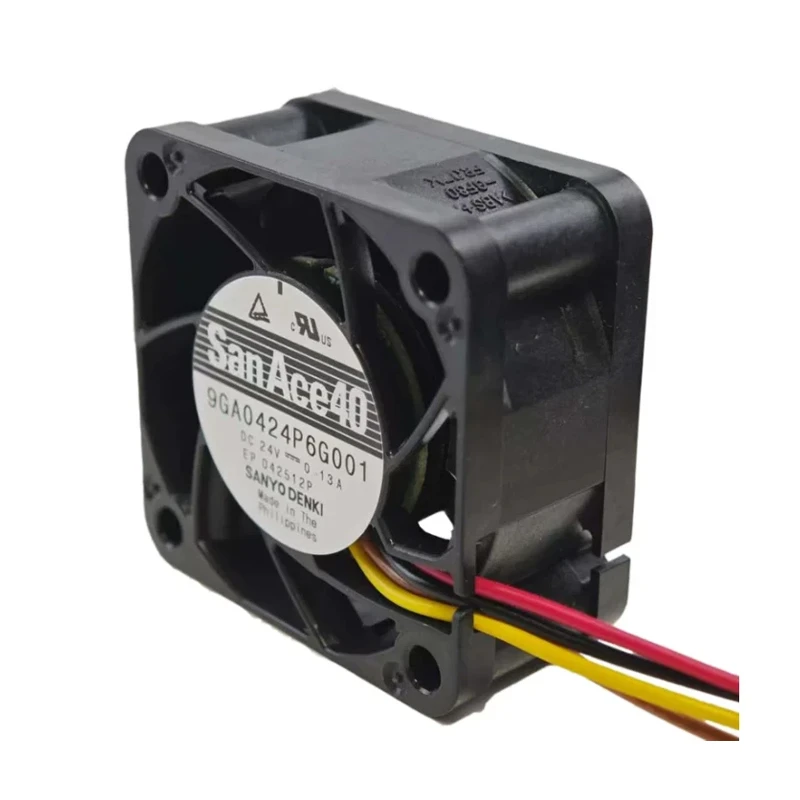

9GA0424P6G001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GA0424P6G001 | Sanyo Denki 24VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 9GA0424P6G001 is a Sanyo Denki 24 VDC, 40 × 40 × 20 mm DC axial fan for servers, UPS systems, and telecom equipment. Long-life series construction is the main characteristic stated in the supplied reference. During duty-point matching, compare the model's duty-point values. Confirm control inputs against the complete ordering code.

Datasheet:: 9GA0424P6G001 | Sanyo Denki 24VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404020
Max.Air Flow(m³/h)	25.16
Max.Pressure(Pa)	318
Input Power(W)	3.12
Speed(rpm)	16000
Noise(db)	47

Product Features

High Airflow Design

The San Ace 9GA0424P6G001 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Its 25.16 m3/h maximum airflow supports rapid air exchange, while 318 Pa pressure capability helps overcome resistance within the finished equipment. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Measure installed sound in the final cabinet. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 9GA0424P6G001 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Storage Systems

9GA0424P6G001 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

ICT Equipment

The San Ace 9GA0424P6G001 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What speed is listed for 9GA0424P6G001?

The listed speed is 16000 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 9GA0424P6G001?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 9GA0424P6G001 be matched to an enclosure?

Check its 40 × 40 × 20 mm size, 25.16 m³/h airflow, 318 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 9GA0424P6G001?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 9GA0424P6G001 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 9GA0424P6G001 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.
