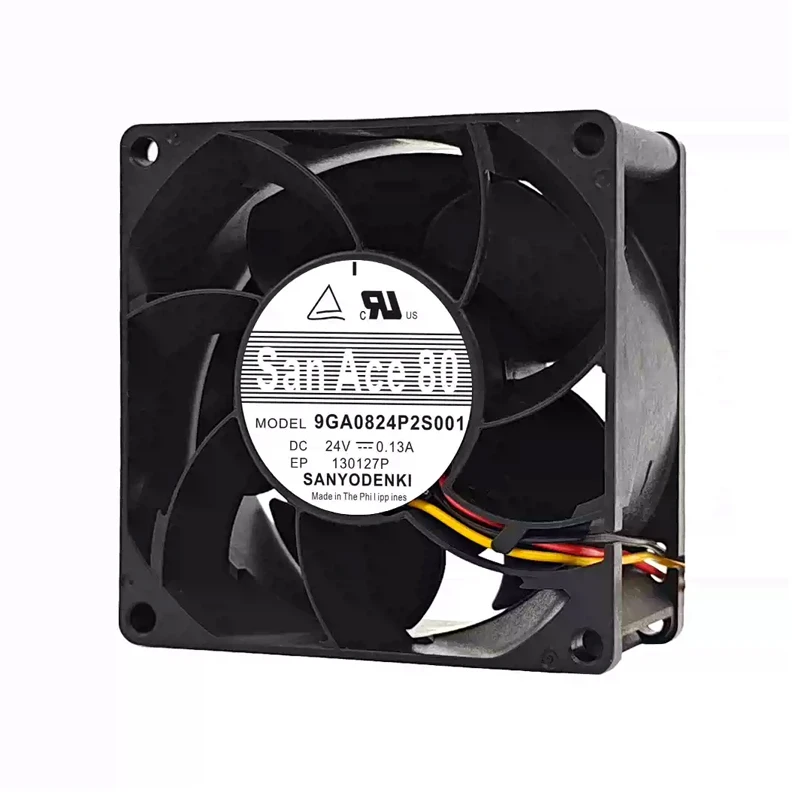

9GA0824P2S001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GA0824P2S001 | Sanyo Denki 24VDC 10.1W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Built around servers, UPS systems, and telecom equipment, Sanyo Denki 9GA0824P2S001 is a 24 VDC DC axial fan in a 80 × 80 × 32 mm frame. 361.2 Pa maximum pressure is the most distinctive duty-point parameter. Long-life series construction is the main characteristic stated in the supplied reference. Focus: cabinet ventilation planning.

Datasheet:: 9GA0824P2S001 | Sanyo Denki 24VDC 10.1W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808032
Max.Air Flow(m³/h)	147.05
Max.Pressure(Pa)	361.2
Input Power(W)	10.1
Speed(rpm)	9700
Noise(db)	57

Product Features

Low Vibration Fan

For servers, storage systems and ICT equipment, the SANYO DENKI 9GA0824P2S001 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

A listed maximum airflow of 147.05 m3/h and maximum pressure of 361.2 Pa give engineers a clear basis for matching the fan to enclosure resistance. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Review grille loss at the required duty point. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

9GA0824P2S001 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation. Verified.

Storage Systems

The San Ace 9GA0824P2S001 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

ICT Equipment

For network and other ICT hardware, 9GA0824P2S001 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. This helps maintain dependable equipment operation.

Frequently Asked Questions

What IP protection is documented for 9GA0824P2S001?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

What airflow is listed for 9GA0824P2S001?

The worksheet lists 147.05 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 9GA0824P2S001 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 9GA0824P2S001 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What should be checked if 9GA0824P2S001 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.
