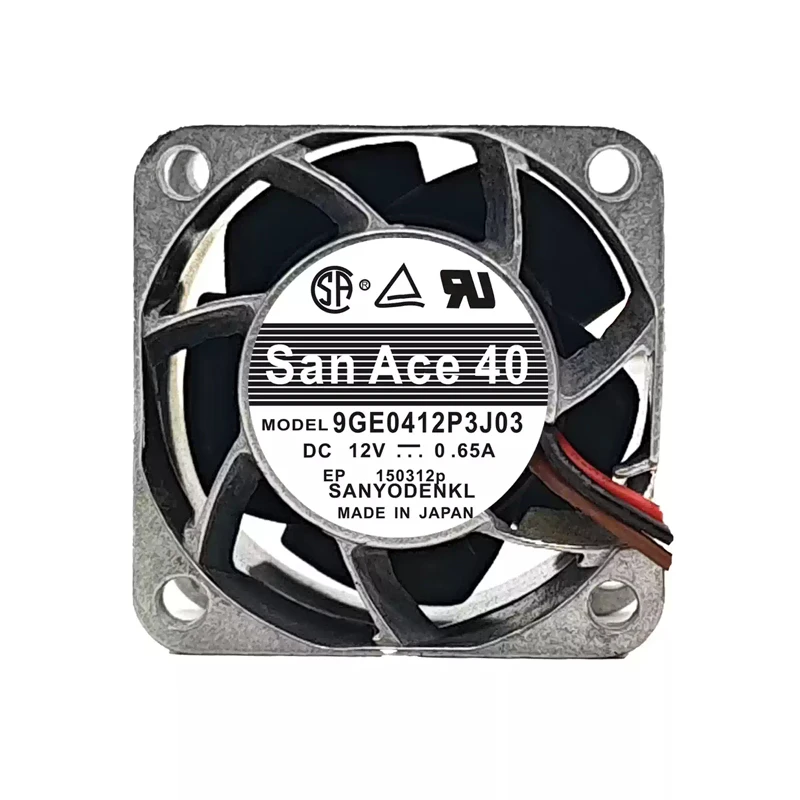

9GE0412P3J03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GE0412P3J03 | Sanyo Denki 12VDC 7.8W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 40 × 40 × 28 mm frame and 12 VDC rating define 9GE0412P3J03, a DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. 15000 rpm is the model's most prominent operating value. Check service access planning system interface. Focus: service access planning.

Datasheet:: 9GE0412P3J03 | Sanyo Denki 12VDC 7.8W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404028
Max.Air Flow(m³/h)	41
Max.Pressure(Pa)	343
Input Power(W)	7.8
Speed(rpm)	15000
Noise(db)	56

Product Features

Reliable Fan Cooling

SANYO DENKI positions 9GE0412P3J03 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 41 m3/h and maximum pressure of 343 Pa give engineers a clear basis for matching the fan to enclosure resistance. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Assess vibration transfer into enclosure panels. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

9GE0412P3J03 is suitable for server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service. Selection should follow the approved full model code.

Storage Systems

The San Ace 9GE0412P3J03 supports thermal management in storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

ICT Equipment

For network and other ICT hardware, 9GE0412P3J03 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

What equipment is 9GE0412P3J03 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 9GE0412P3J03 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 9GE0412P3J03 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Can 9GE0412P3J03 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 9GE0412P3J03 require?

The worksheet lists 12 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.
