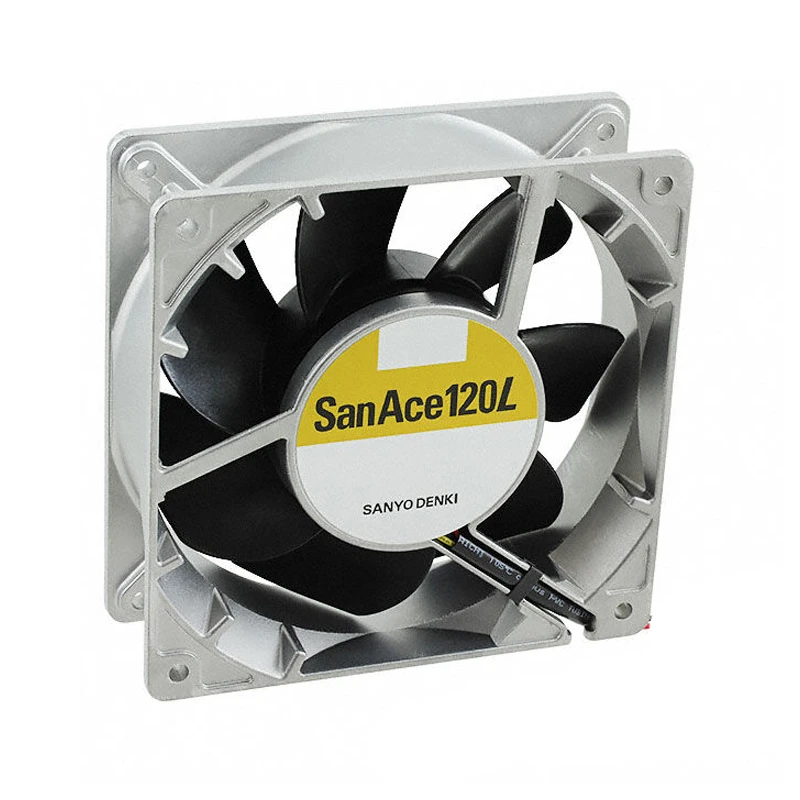

9GL1224E1D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GL1224E1D01 | Sanyo Denki 24VDC 8.16W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 119 × 119 × 38 mm frame and 24 VDC rating define 9GL1224E1D01, a DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Its listed airflow of 198 m³/h is the standout performance value. Check duty point matching mounting size. Focus: duty point matching mounting size.

Datasheet:: 9GL1224E1D01 | Sanyo Denki 24VDC 8.16W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	198
Max.Pressure(Pa)	100
Input Power(W)	8.16
Speed(rpm)	3100
Noise(db)	46

Product Features

Stable San Ace Fan

9GL1224E1D01 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 198 m3/h airflow and 100 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Preserve outlet space to limit recirculation. The result supports repeatable OEM assembly. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 9GL1224E1D01 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 9GL1224E1D01 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 9GL1224E1D01 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Does 9GL1224E1D01 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Can 9GL1224E1D01 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 9GL1224E1D01?

The worksheet lists 46 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 9GL1224E1D01 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 9GL1224E1D01 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 9GL1224E1D01 be matched to an enclosure?

Check its 119 × 119 × 38 mm size, 198 m³/h airflow, 100 Pa pressure, mounting points, airflow direction, and system resistance.
