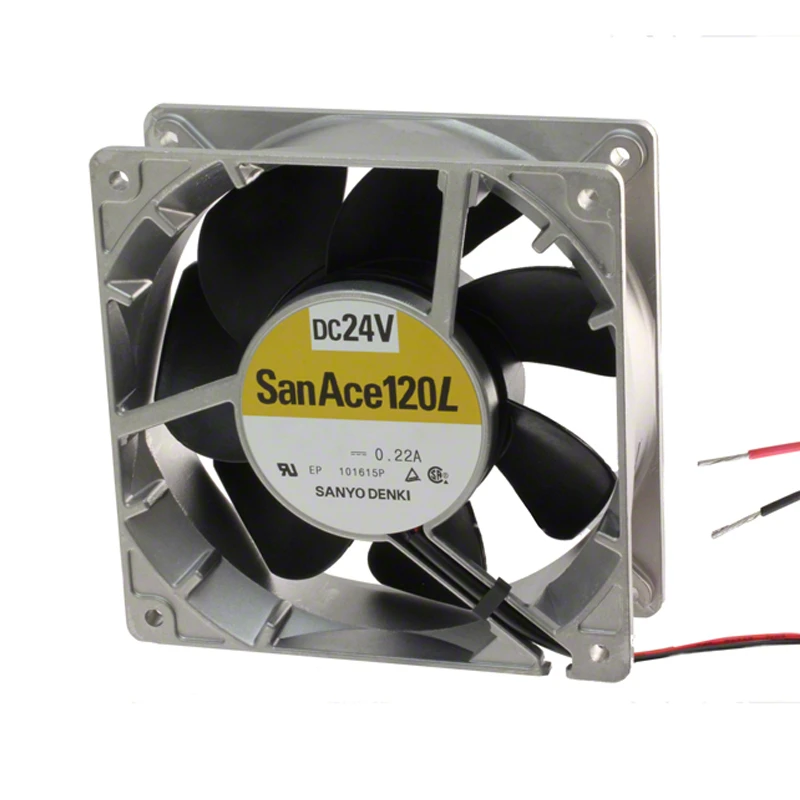

9GL1224G102 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GL1224G102 | Sanyo Denki 24VDC 12W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 119 × 119 × 38 mm frame and 24 VDC rating define 9GL1224G102, a DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Its listed airflow of 230.4 m³/h is the standout performance value. Check cabinet ventilation planning selection parameters. Focus: cabinet ventilation planning.

Datasheet:: 9GL1224G102 | Sanyo Denki 24VDC 12W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	230.4
Max.Pressure(Pa)	135
Input Power(W)	12
Speed(rpm)	3600
Noise(db)	49

Product Features

Low Vibration Fan

The San Ace 9GL1224G102 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

A listed maximum airflow of 230.4 m3/h and maximum pressure of 135 Pa give engineers a clear basis for matching the fan to enclosure resistance. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Keep the impeller path clear of wiring. This keeps sourcing decisions tied to validated system needs. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

9GL1224G102 is suitable for server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Storage Systems

The San Ace 9GL1224G102 supports thermal management in storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 9GL1224G102 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Can 9GL1224G102 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 9GL1224G102 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 9GL1224G102 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 230.4 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.

How noisy is 9GL1224G102?

The worksheet lists 49 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 9GL1224G102 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.
