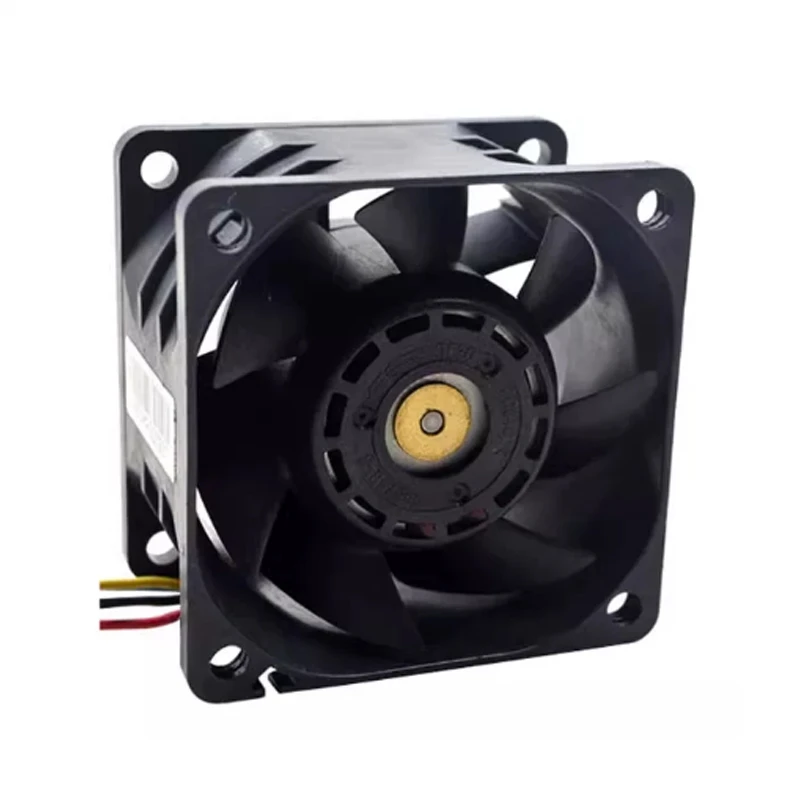

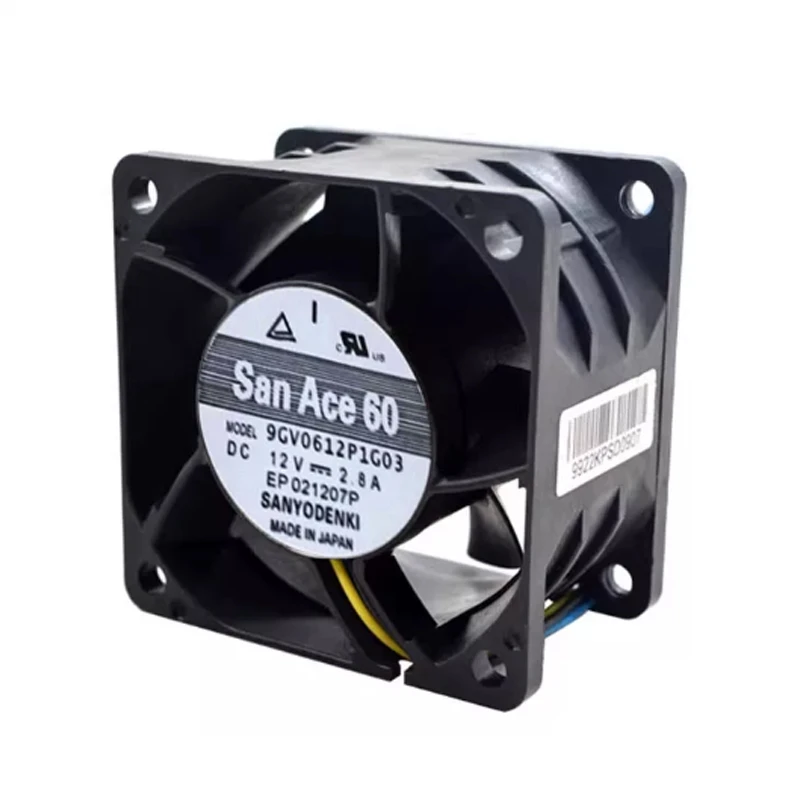

9GV0612P1G03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV0612P1G03 | Sanyo Denki 12VDC 33.6W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: A 60×60×38 mm frame and 12 VDC rating define 9GV0612P1G03, a DC axial fan for industrial controls, power cabinets, and energy systems. High airflow is highlighted together with a high-static-pressure design. The supplied row lists 66 dB as an important acoustic selection value. Check thermal margin assessment cooling output.

Datasheet:: 9GV0612P1G03 | Sanyo Denki 12VDC 33.6W DC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	60×60×38
Max.Air Flow(m³/h)	142.2
Max.Pressure(Pa)	751
Input Power(W)	33.6
Speed(rpm)	16000
Noise(db)	66

Product Features

Reliable Fan Cooling

9GV0612P1G03 brings San Ace DC axial fan cooling to automation controls, PLC cabinets and drive systems. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

A listed maximum airflow of 142.2 m3/h and maximum pressure of 751 Pa give engineers a clear basis for matching the fan to enclosure resistance. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Measure installed sound in the final cabinet. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

9GV0612P1G03 is suitable for automation and electrical control cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

PLC Systems

The San Ace 9GV0612P1G03 supports thermal management in PLC and motion-control equipment. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Verified.

Variable Speed Drives

For inverters and industrial drive systems, 9GV0612P1G03 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What supply voltage does 9GV0612P1G03 require?

The worksheet lists 12 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 9GV0612P1G03 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

What bearing type does 9GV0612P1G03 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 9GV0612P1G03?

Use rated voltage, 60×60×38 mm dimensions, 142.2 m³/h airflow, 16000 rpm, and 33.6 W input for preliminary comparison.

What certifications apply to 9GV0612P1G03?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.
