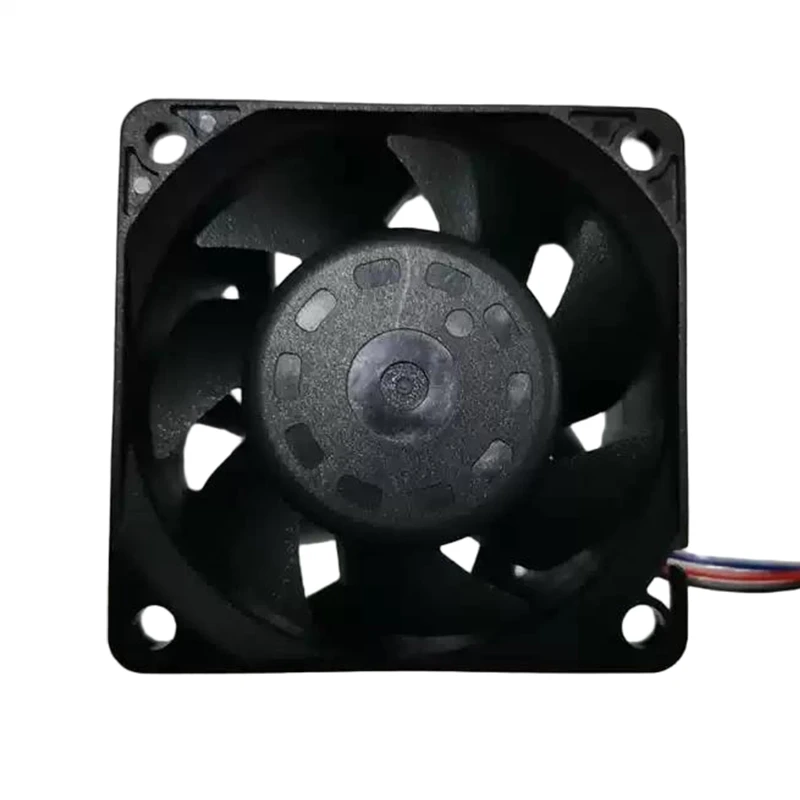

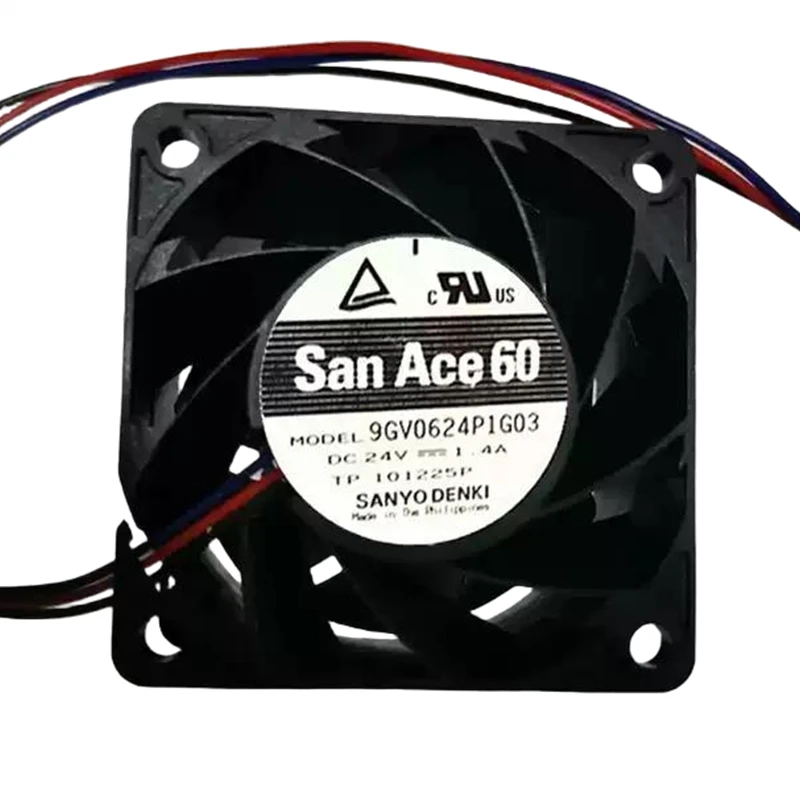

9GV0624P1G03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV0624P1G03 | Sanyo Denki 24VDC 33.6W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Sanyo Denki 9GV0624P1G03 combines a 60 × 60 × 38 mm DC axial fan platform with a 24 VDC rating for industrial controls, power cabinets, and energy systems. Series focus: high airflow and pressure. The supplied row lists 66 dB as an important acoustic selection value. Focus: control interface planning volume-flow figure.

Datasheet:: 9GV0624P1G03 | Sanyo Denki 24VDC 33.6W DC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	606038
Max.Air Flow(m³/h)	142.8
Max.Pressure(Pa)	752.3
Input Power(W)	33.6
Speed(rpm)	16000
Noise(db)	66

Product Features

High Airflow Design

For automation controls, PLC cabinets and drive systems, the SANYO DENKI 9GV0624P1G03 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

Its 142.8 m3/h maximum airflow supports rapid air exchange, while 752.3 Pa pressure capability helps overcome resistance within the finished equipment. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Allow service access for fan replacement. The check aligns mechanical fit with cooling duty. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

SANYO DENKI 9GV0624P1G03 serves automation and electrical control cabinets that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

PLC Systems

9GV0624P1G03 is suitable for PLC and motion-control equipment. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Variable Speed Drives

The San Ace 9GV0624P1G03 supports thermal management in inverters and industrial drive systems. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Frequently Asked Questions

Can 9GV0624P1G03 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 9GV0624P1G03 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 9GV0624P1G03 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 9GV0624P1G03 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 9GV0624P1G03 be matched to an enclosure?

Check its 60 × 60 × 38 mm size, 142.8 m³/h airflow, 752.3 Pa pressure, mounting points, airflow direction, and system resistance.

Is 9GV0624P1G03 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.
