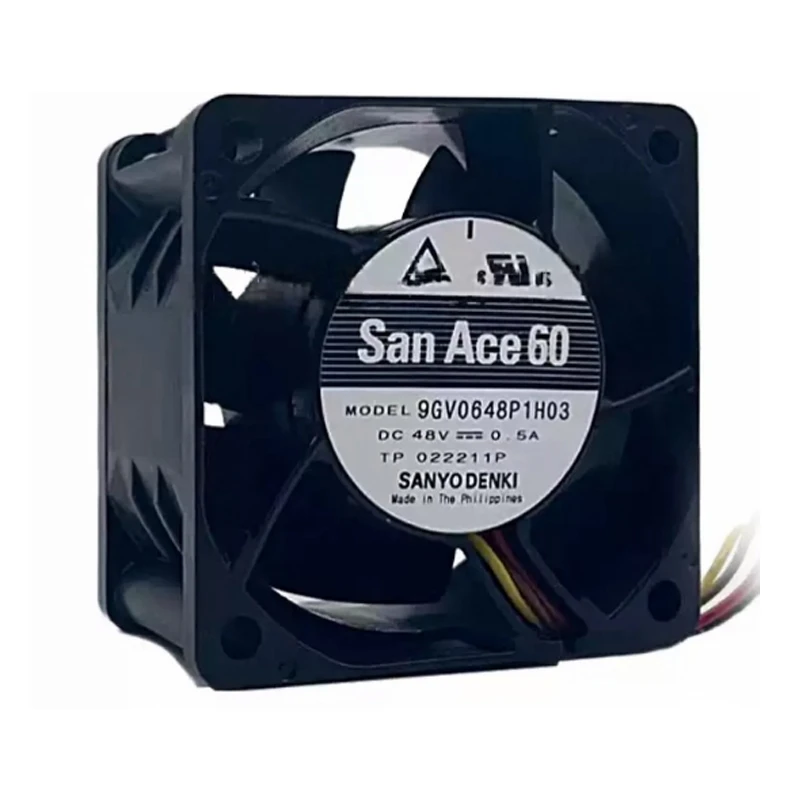

9GV0648P1H03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV0648P1H03 | Sanyo Denki 48VDC 24W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: For industrial controls, power cabinets, and energy systems, 9GV0648P1H03 combines 48 VDC operation with a 60 × 60 × 38 mm DC axial fan design. High airflow is highlighted together with a high-static-pressure design. The supplied row lists 63 dB as an important acoustic selection value. Selection focus: thermal margin assessment frame geometry.

Product Features

Rated Voltage(V)	48
Size(mm)	606038
Max.Air Flow(m³/h)	129.71
Input Power(W)	24
Speed(rpm)	14500
Noise(db)	63

Product Features

High Airflow Design

SANYO DENKI positions 9GV0648P1H03 as a DC axial fan for automation controls, PLC cabinets and drive systems. It helps equipment designers manage local hot spots where natural convection is insufficient.

The specified maximum airflow of 129.71 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Test component temperatures at peak load. It supports a clear fan specification for future servicing. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Control Cabinets

The San Ace 9GV0648P1H03 supports thermal management in automation and electrical control cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

PLC Systems

For PLC and motion-control equipment, 9GV0648P1H03 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Variable Speed Drives

SANYO DENKI 9GV0648P1H03 serves inverters and industrial drive systems that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What certifications apply to 9GV0648P1H03?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 9GV0648P1H03?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

Does 9GV0648P1H03 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 9GV0648P1H03?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 9GV0648P1H03 require?

The worksheet lists 48 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 9GV0648P1H03 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
