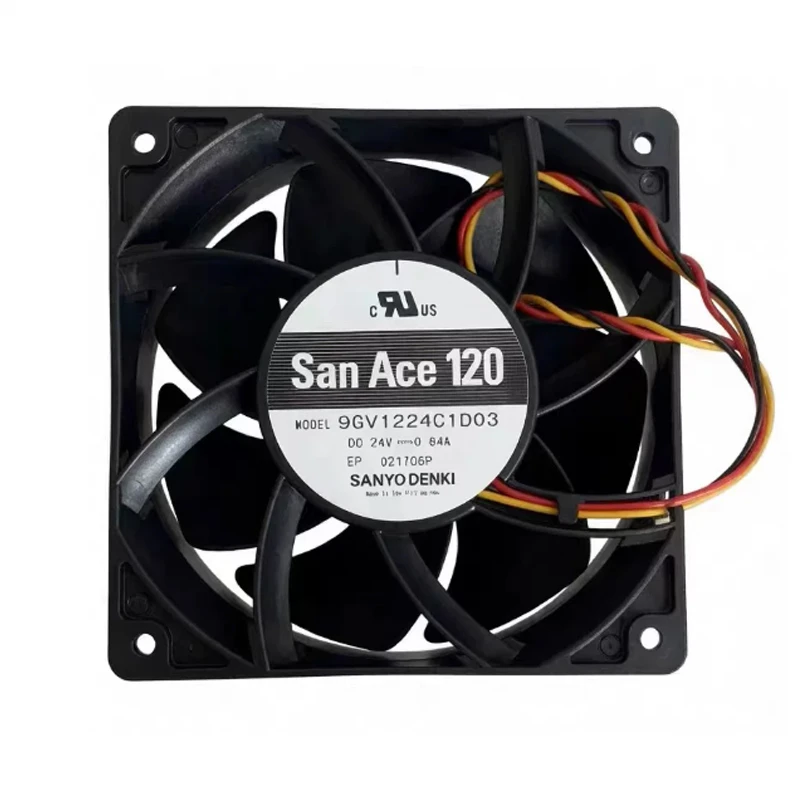

9GV1224C1D03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV1224C1D03 | Sanyo Denki 24VDC DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Configured for industrial controls, power cabinets, and energy systems, Sanyo Denki 9GV1224C1D03 is a 24 VDC DC axial fan in a 120 × 120 × 38 mm frame. The 120 × 120 × 38 mm format is the primary stated selection detail. High airflow is highlighted together with a high-static-pressure design. Focus: mounting geometry validation speed benchmark.

Product Features

Rated Voltage(V)	24
Size(mm)	12012038

Product Features

Stable San Ace Fan

SANYO DENKI positions 9GV1224C1D03 as a DC axial fan for automation controls, PLC cabinets and drive systems. It helps equipment designers manage local hot spots where natural convection is insufficient.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Qualify performance with the production guard. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Control Cabinets

SANYO DENKI 9GV1224C1D03 serves automation and electrical control cabinets that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

PLC Systems

9GV1224C1D03 is suitable for PLC and motion-control equipment. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

Variable Speed Drives

The San Ace 9GV1224C1D03 supports thermal management in inverters and industrial drive systems. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Frequently Asked Questions

How noisy is 9GV1224C1D03?

The supplied row has no noise value. Request model-specific acoustic data when noise control is critical.

What speed is listed for 9GV1224C1D03?

No speed value is provided for this complete model.

What bearing type does 9GV1224C1D03 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 9GV1224C1D03 be matched to an enclosure?

Check its 120 × 120 × 38 mm size, mounting points, airflow direction, and system resistance.

What certifications apply to 9GV1224C1D03?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 9GV1224C1D03?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.
