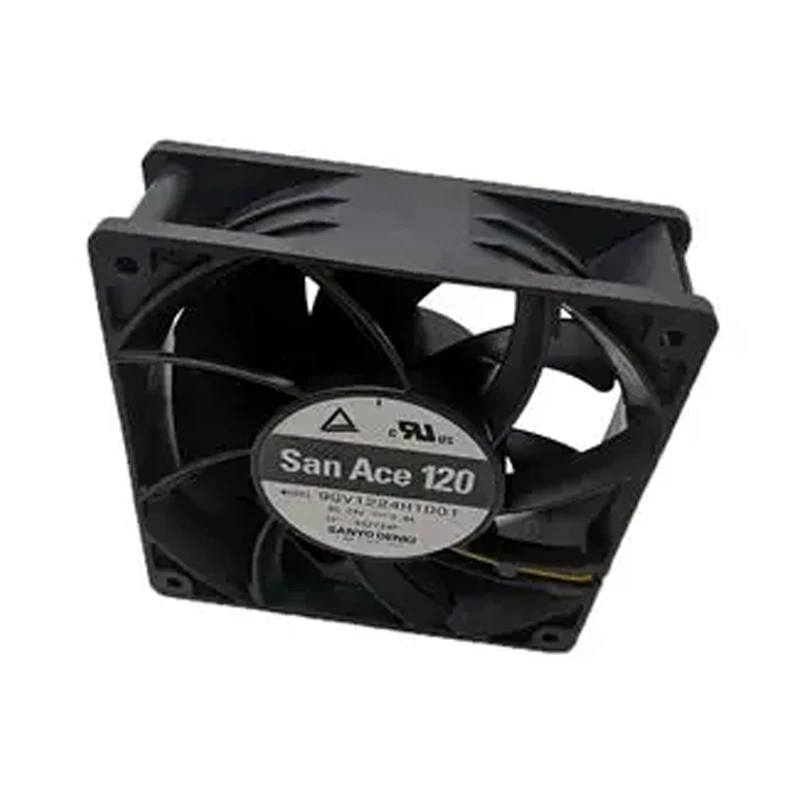

9GV1224H1D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV1224H1D01 | Sanyo Denki 24VDC 19.2W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Applied in industrial controls, power cabinets, and energy systems, Sanyo Denki 9GV1224H1D01 is a 24 VDC DC axial fan in a 120 × 120 × 38 mm frame. Its listed airflow of 306 m³/h is the standout performance value. The supplied reference emphasizes high static pressure and high airflow. Selection focus: compatibility risk checking speed benchmark.

Datasheet:: 9GV1224H1D01 | Sanyo Denki 24VDC 19.2W DC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038
Max.Air Flow(m³/h)	306
Max.Pressure(Pa)	237
Input Power(W)	19.2
Speed(rpm)	5200
Noise(db)	58

Product Features

Pressure Cooling

For automation controls, PLC cabinets and drive systems, the SANYO DENKI 9GV1224H1D01 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

The rated peak airflow of 306 m3/h combines with 237 Pa pressure capability to support useful flow after installation losses are considered. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Review airflow direction before design release. It supports a clear fan specification for future servicing. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

For automation and electrical control cabinets, 9GV1224H1D01 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

PLC Systems

SANYO DENKI 9GV1224H1D01 serves PLC and motion-control equipment that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Variable Speed Drives

9GV1224H1D01 is suitable for inverters and industrial drive systems. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service. Selection should follow the approved full model code.

Frequently Asked Questions

Does 9GV1224H1D01 have a pressure rating?

The worksheet lists 237 Pa. Use the official curve to match it to system resistance.

What equipment is 9GV1224H1D01 suited to?

It is listed for industrial controls, power cabinets, and energy systems. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 9GV1224H1D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What airflow is listed for 9GV1224H1D01?

The worksheet lists 306 m³/h. Compare the operating point with system resistance and the official performance curve.

Why choose 9GV1224H1D01 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 306 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.
