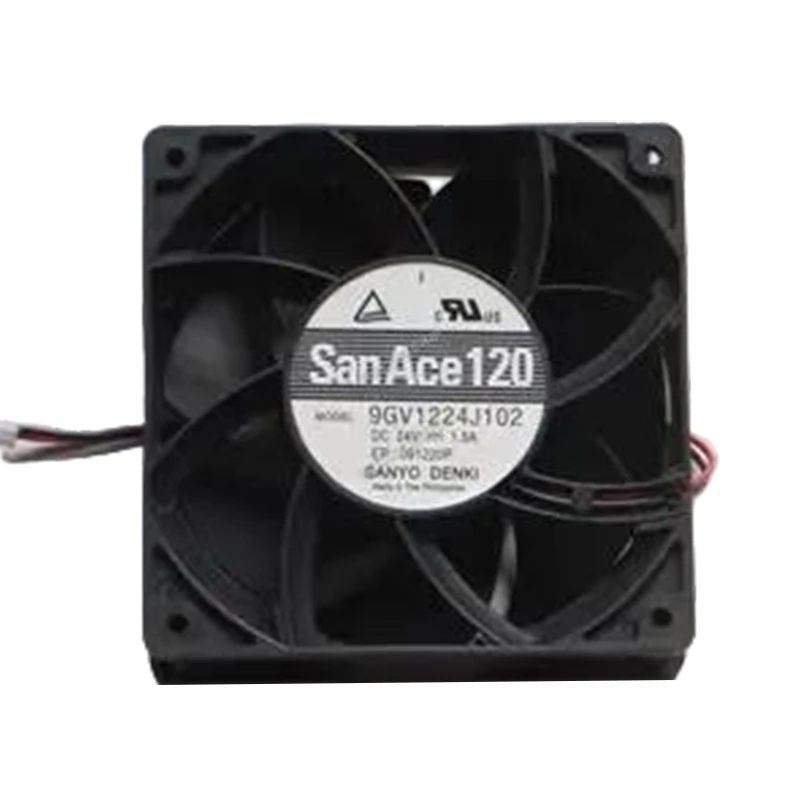

9GV1224J102 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV1224J102 | Sanyo Denki 24VDC 36W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: The 24 VDC Sanyo Denki 9GV1224J102 is a DC axial fan sized 120 × 120 × 38 mm for industrial controls, power cabinets, and energy systems. High airflow is highlighted together with a high-static-pressure design. The supplied row lists 64 dB as an important acoustic selection value. Selection focus: procurement data comparison pressure capability.

Datasheet:: 9GV1224J102 | Sanyo Denki 24VDC 36W DC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038
Max.Air Flow(m³/h)	376.2
Max.Pressure(Pa)	361.2
Input Power(W)	36
Speed(rpm)	6400
Noise(db)	64

Product Features

Stable San Ace Fan

9GV1224J102 is intended for dependable forced-air cooling in automation controls, PLC cabinets and drive systems. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

Its 376.2 m3/h maximum airflow supports rapid air exchange, while 361.2 Pa pressure capability helps overcome resistance within the finished equipment. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Assess vibration transfer into enclosure panels. The process documents the required installation conditions. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

SANYO DENKI 9GV1224J102 serves automation and electrical control cabinets that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

PLC Systems

9GV1224J102 is suitable for PLC and motion-control equipment. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Variable Speed Drives

The San Ace 9GV1224J102 supports thermal management in inverters and industrial drive systems. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Is 9GV1224J102 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 9GV1224J102 be matched to an enclosure?

Check its 120 × 120 × 38 mm size, 376.2 m³/h airflow, 361.2 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 9GV1224J102 suited to?

It is listed for industrial controls, power cabinets, and energy systems. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 9GV1224J102?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

Does 9GV1224J102 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 9GV1224J102?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.
