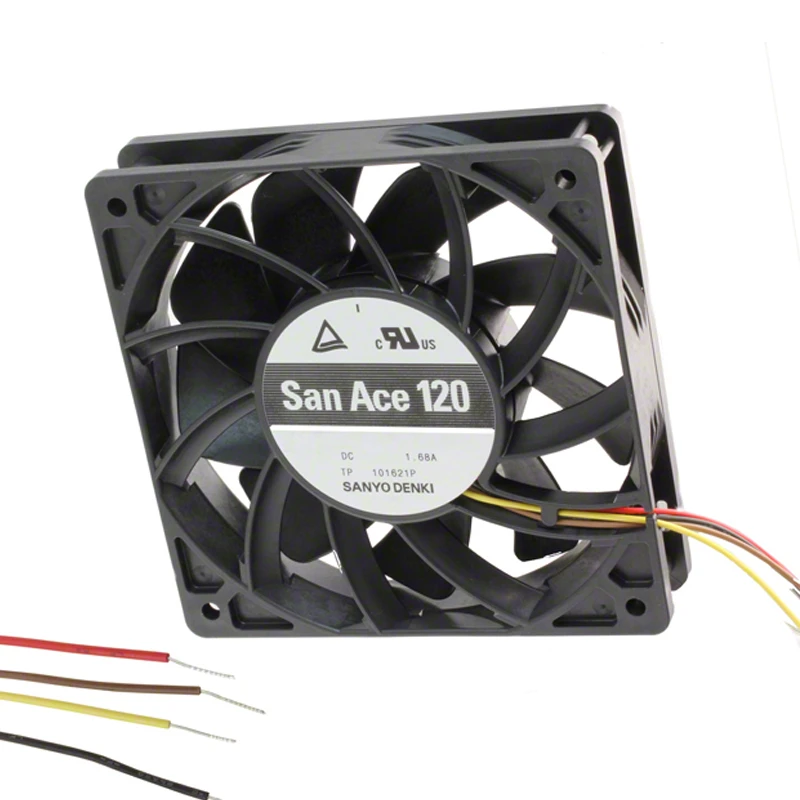

9GV1224P1J01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV1224P1J01 | Sanyo Denki 24VDC 36W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Sanyo Denki configures 9GV1224P1J01 for industrial controls, power cabinets, and energy systems as a 24 VDC DC axial fan with 119 × 119 × 38 mm dimensions. The supplied row lists 64 dB as an important acoustic selection value. Treat the performance curve as a primary input to maintenance preparation. Treat bearing and life data as suffix-specific.

Datasheet:: 9GV1224P1J01 | Sanyo Denki 24VDC 36W DC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	380.8
Max.Pressure(Pa)	361.2
Input Power(W)	36
Speed(rpm)	6400
Noise(db)	64

Product Features

Reliable Fan Cooling

The San Ace 9GV1224P1J01 serves automation controls, PLC cabinets and drive systems as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

The rated peak airflow of 380.8 m3/h combines with 361.2 Pa pressure capability to support useful flow after installation losses are considered. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Test component temperatures at peak load. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Control Cabinets

For automation and electrical control cabinets, 9GV1224P1J01 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

PLC Systems

SANYO DENKI 9GV1224P1J01 serves PLC and motion-control equipment that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Variable Speed Drives

9GV1224P1J01 is suitable for inverters and industrial drive systems. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Frequently Asked Questions

Can 9GV1224P1J01 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 9GV1224P1J01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 9GV1224P1J01?

Use rated voltage, 119 × 119 × 38 mm dimensions, 380.8 m³/h airflow, 6400 rpm, and 36 W input for preliminary comparison.

What equipment is 9GV1224P1J01 suited to?

It is listed for industrial controls, power cabinets, and energy systems. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Which application details matter most for 9GV1224P1J01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.
