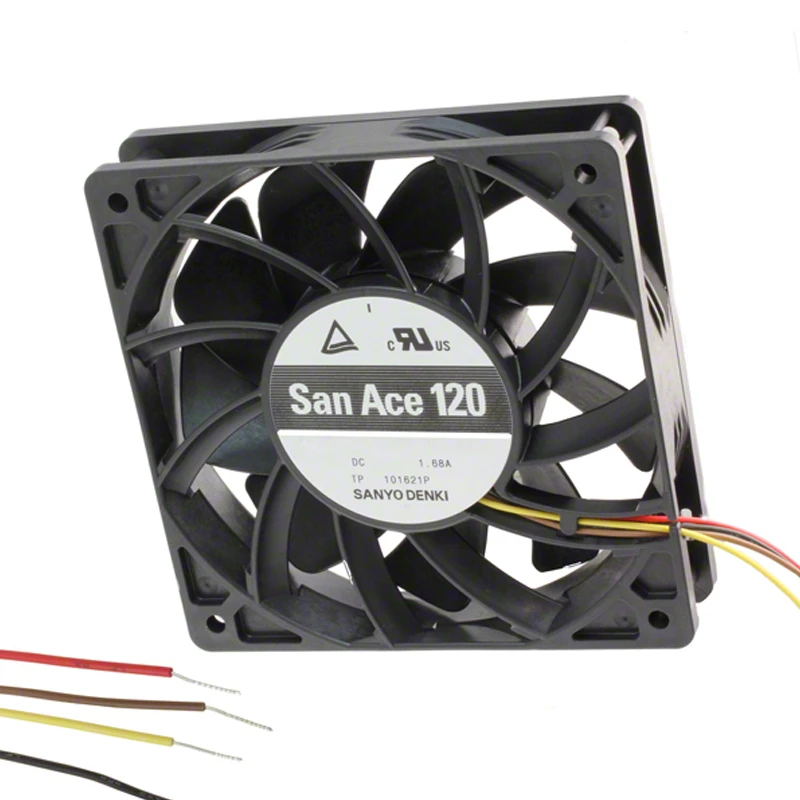

9GV1224P4G01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9GV1224P4G01 | Sanyo Denki 24VDC 20.16W DC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: The 120 × 120 × 25 mm Sanyo Denki 9GV1224P4G01 brings 24 VDC DC axial fan cooling to industrial controls, power cabinets, and energy systems. Series focus: high airflow and pressure. Base service-life planning on the stated suffix definition. Confirm environmental protection for the ordered version. Focus: replacement fit screening.

Datasheet:: 9GV1224P4G01 | Sanyo Denki 24VDC 20.16W DC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012025
Max.Air Flow(m³/h)	290.53
Max.Pressure(Pa)	224.2
Input Power(W)	20.16
Speed(rpm)	5100
Noise(db)	58

Product Features

Efficient Cooling

The San Ace 9GV1224P4G01 serves automation controls, PLC cabinets and drive systems as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

With up to 290.53 m3/h airflow and 224.2 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Confirm inlet clearance around nearby cables. It helps engineering and procurement use one specification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Control Cabinets

The San Ace 9GV1224P4G01 supports thermal management in automation and electrical control cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

PLC Systems

For PLC and motion-control equipment, 9GV1224P4G01 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Variable Speed Drives

SANYO DENKI 9GV1224P4G01 serves inverters and industrial drive systems that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Can 9GV1224P4G01 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 9GV1224P4G01?

The worksheet lists 58 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

Can 9GV1224P4G01 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

What should procurement confirm for 9GV1224P4G01?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 9GV1224P4G01 be matched to an enclosure?

Check its 120 × 120 × 25 mm size, 290.53 m³/h airflow, 224.2 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 9GV1224P4G01 suited to?

It is listed for industrial controls, power cabinets, and energy systems. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.
