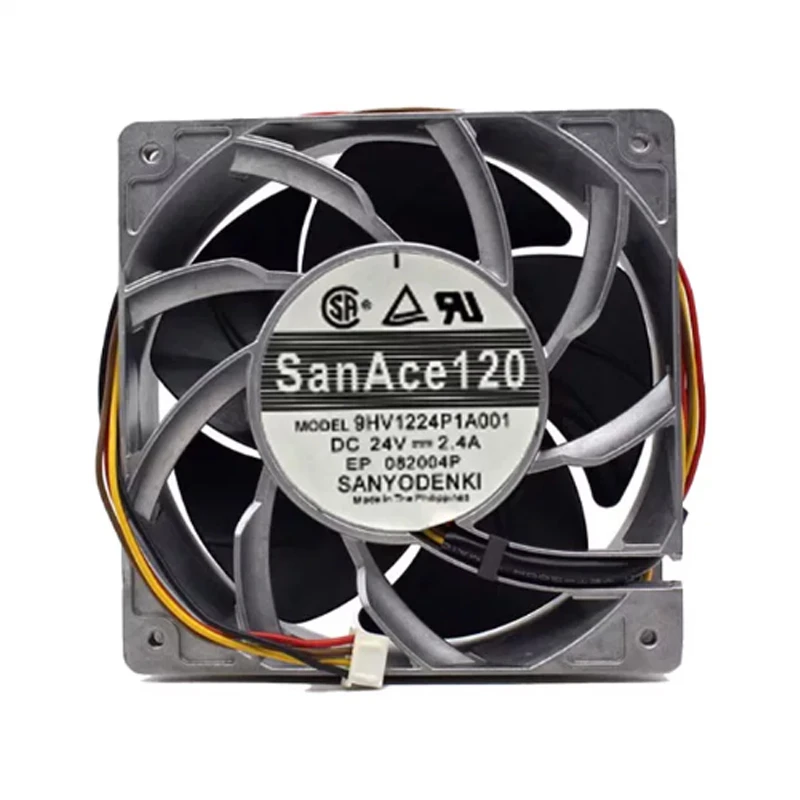

9HV1224P1A001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9HV1224P1A001 | Sanyo Denki 24VDC 57.6W DC Axial Fan for AI servers and high-density equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 9HV1224P1A001 for AI servers and high-density electronics as a 24 VDC DC axial fan with 120×120×38 mm dimensions. The supplied row lists 71 dB as an important acoustic selection value. During fan selection, compare the model's equipment fit. Review connector, alarm, and sensor options separately.

Datasheet:: 9HV1224P1A001 | Sanyo Denki 24VDC 57.6W DC Axial Fan for AI servers and high-density equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120×120×38
Max.Air Flow(m³/h)	420
Max.Pressure(Pa)	950
Input Power(W)	57.6
Speed(rpm)	9600
Noise(db)	71

Product Features

Pressure Cooling

The San Ace 9HV1224P1A001 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

A listed maximum airflow of 420 m3/h and maximum pressure of 950 Pa give engineers a clear basis for matching the fan to enclosure resistance. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Include filter loading in the airflow margin. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

9HV1224P1A001 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

The San Ace 9HV1224P1A001 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 9HV1224P1A001 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

How should 9HV1224P1A001 be matched to an enclosure?

Check its 120×120×38 mm size, 420 m³/h airflow, 950 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 9HV1224P1A001 suited to?

It is listed for AI servers and high-density electronics. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 9HV1224P1A001?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

Does 9HV1224P1A001 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 9HV1224P1A001?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.
