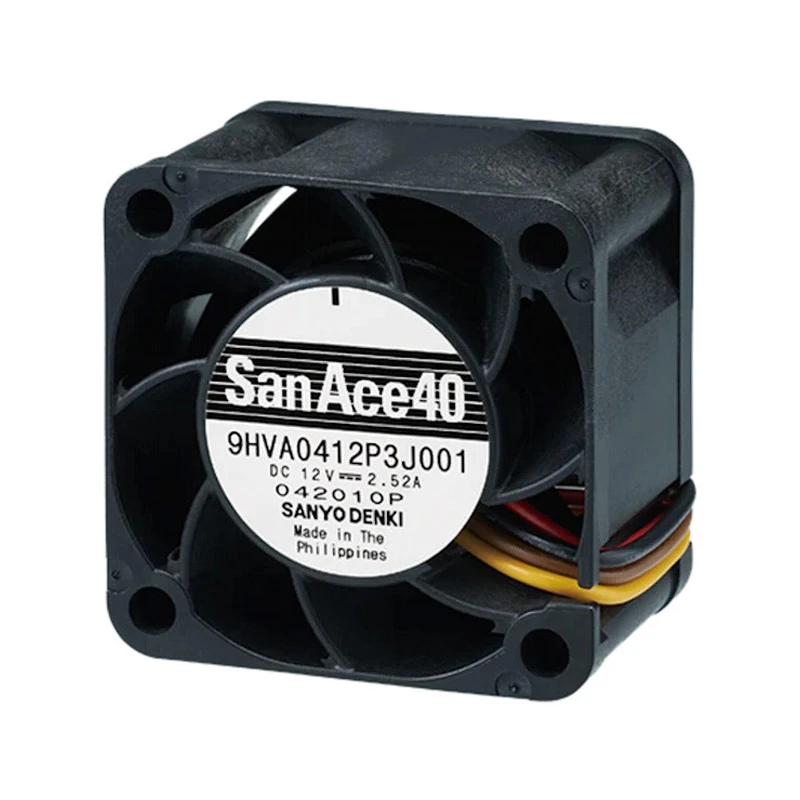

9HVA0412P3J001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9HVA0412P3J001 | Sanyo Denki 12VDC 31.2W DC Axial Fan for AI servers and high-density equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 9HVA0412P3J001 serves AI servers and high-density electronics as a 40 × 40 × 28 mm DC axial fan rated at 12 VDC. Ultra-high static-pressure capability is the representative series characteristic. 2300 Pa maximum pressure is the most distinctive duty-point parameter. Check procurement data comparison rotational rating.

Datasheet:: 9HVA0412P3J001 | Sanyo Denki 12VDC 31.2W DC Axial Fan for AI servers and high-density equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404028
Max.Air Flow(m³/h)	63.07
Max.Pressure(Pa)	2300
Input Power(W)	31.2
Speed(rpm)	38000
Noise(db)	71

Product Features

Pressure Cooling

The San Ace 9HVA0412P3J001 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

A listed maximum airflow of 63.07 m3/h and maximum pressure of 2300 Pa give engineers a clear basis for matching the fan to enclosure resistance. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Verify the mating connector and lead reach. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

9HVA0412P3J001 is suitable for server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Storage Systems

The San Ace 9HVA0412P3J001 supports thermal management in storage arrays and data appliances. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 9HVA0412P3J001 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

How should 9HVA0412P3J001 be matched to an enclosure?

Check its 40 × 40 × 28 mm size, 63.07 m³/h airflow, 2300 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 9HVA0412P3J001?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 9HVA0412P3J001?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

What airflow is listed for 9HVA0412P3J001?

The worksheet lists 63.07 m³/h. Compare the operating point with system resistance and the official performance curve.

Why choose 9HVA0412P3J001 instead of a standard fan?

Its 12 VDC rating and documented 2300 pa maximum pressure is the most distinctive duty-point parameter. provide model-specific selection data without relying on unlisted claims.
