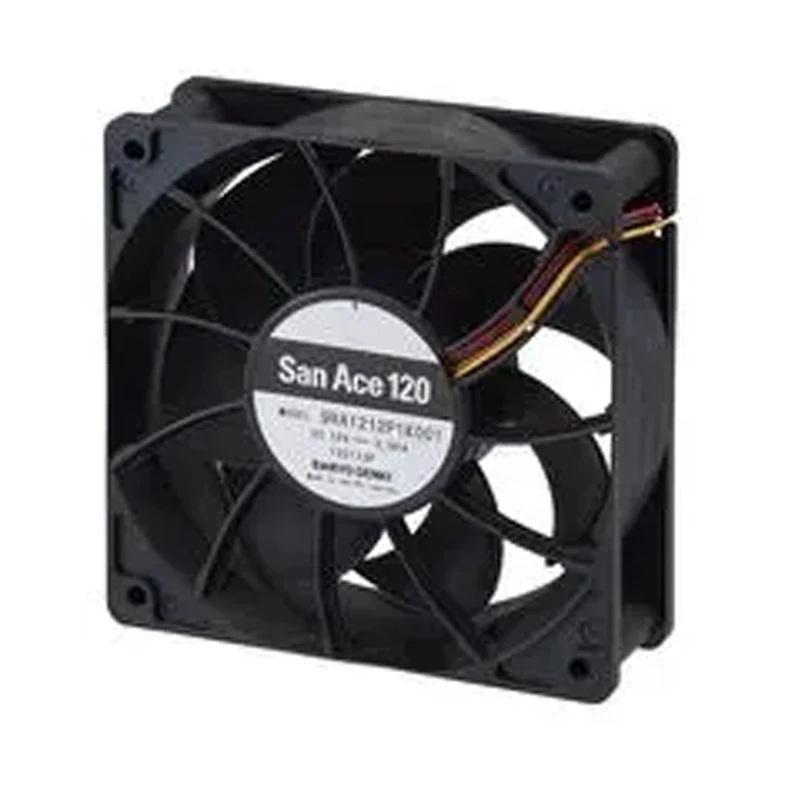

9RA1224H1001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9RA1224H1001 | Sanyo Denki 24VDC 3.1W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Within servers, UPS systems, and telecom equipment, 9RA1224H1001 provides a 120×120×38 mm, 24 VDC DC axial fan configuration. The supplied reference emphasizes high static pressure and high airflow. Its 3000 rpm rating defines a lower-speed operating point. Check service access planning rated dataset. Focus: service access planning rated dataset.

Datasheet:: 9RA1224H1001 | Sanyo Denki 24VDC 3.1W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120×120×38
Max.Air Flow(m³/h)	168
Max.Pressure(Pa)	70
Input Power(W)	3.1
Speed(rpm)	3000
Noise(db)	37

Product Features

High Airflow Design

For servers, storage systems and ICT equipment, the SANYO DENKI 9RA1224H1001 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

Its 168 m3/h maximum airflow supports rapid air exchange, while 70 Pa pressure capability helps overcome resistance within the finished equipment. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Check startup demand against the power supply. The result supports repeatable OEM assembly. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 9RA1224H1001 serves server chassis and computing nodes that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Storage Systems

9RA1224H1001 is suitable for storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service. Selection should follow the approved full model code.

ICT Equipment

The San Ace 9RA1224H1001 supports thermal management in network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

Frequently Asked Questions

Does 9RA1224H1001 have a pressure rating?

The worksheet lists 70 Pa. Use the official curve to match it to system resistance.

What certifications apply to 9RA1224H1001?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 9RA1224H1001?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 9RA1224H1001?

The worksheet lists 168 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 9RA1224H1001?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 9RA1224H1001 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.
