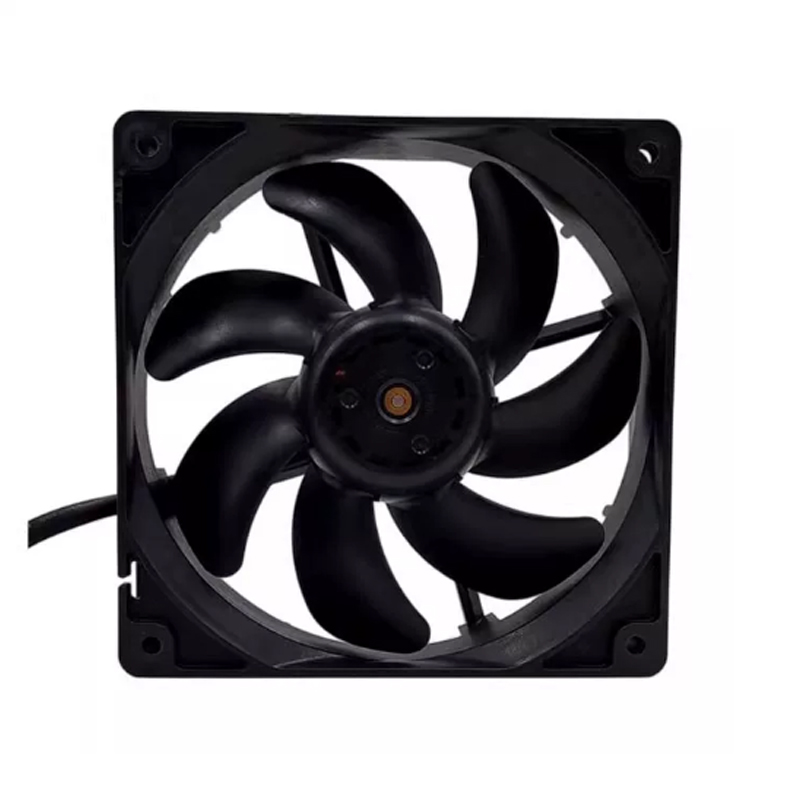

9S1224M4011 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9S1224M4011 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Equipment designers serving servers, UPS systems, and telecom equipment can evaluate Sanyo Denki 9S1224M4011, a DC axial fan rated at 24 VDC and sized 120 × 120 × 25 mm. Its 1850 rpm rating defines a lower-speed operating point. The recorded duty-point values should guide spares assessment. Match the exact part number before approving a substitute.

Datasheet:: 9S1224M4011 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012025 mm
Max.Air Flow(m³/h)	99.6
Max.Pressure(Pa)	22.7
Input Power(W)	1.44
Speed(rpm)	1850
Noise(db)	24

Product Features

High Airflow Design

9S1224M4011 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

Its 99.6 m3/h maximum airflow supports rapid air exchange, while 22.7 Pa pressure capability helps overcome resistance within the finished equipment. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Review airflow direction before design release. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

SANYO DENKI 9S1224M4011 serves server chassis and computing nodes that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Storage Systems

9S1224M4011 is suitable for storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service. Selection should follow the approved full model code.

ICT Equipment

The San Ace 9S1224M4011 supports thermal management in network and other ICT hardware. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

Frequently Asked Questions

What supply voltage does 9S1224M4011 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What should be checked if 9S1224M4011 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 9S1224M4011 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 9S1224M4011?

Use rated voltage, 120 × 120 × 25 mm dimensions, 99.6 m³/h airflow, 1850 rpm, and 1.44 W input for preliminary comparison.

Is 9S1224M4011 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Can 9S1224M4011 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
