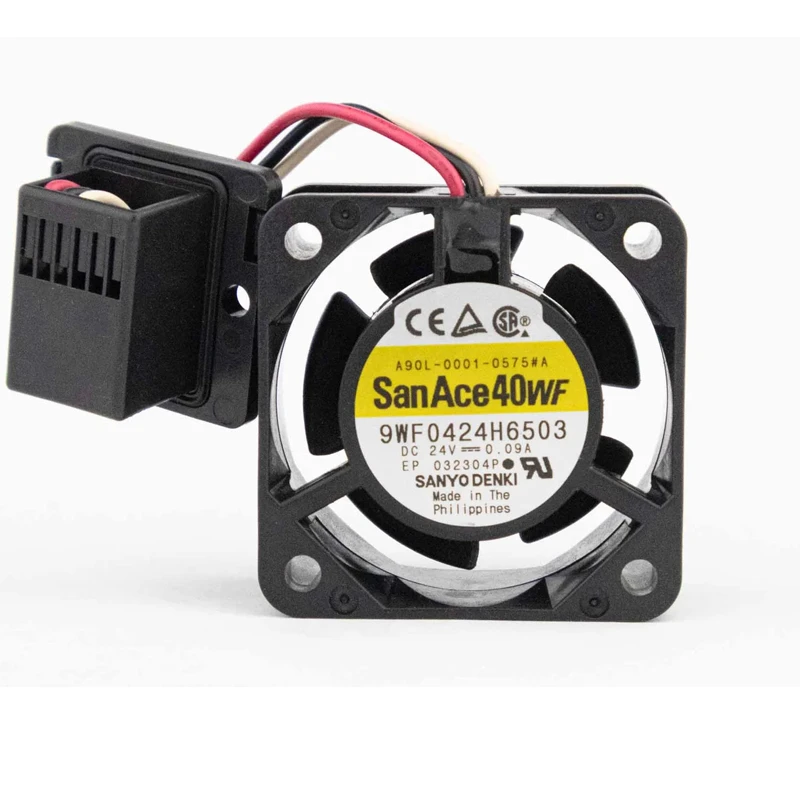

9WF0424H6503 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WF0424H6503 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Sanyo Denki 9WF0424H6503 combines a 40 × 40 × 20 mm DC axial fan platform with a 24 VDC rating for industrial controls, power cabinets, and energy systems. Its oil-resistant fan design and IP20 listing is the defining supplied feature. The 40 × 40 × 20 mm format is the primary stated selection detail. Focus: enclosure space planning.

Product Features

Rated Voltage(V)	24
Size(mm)	404020

Product Features

Reliable Fan Cooling

9WF0424H6503 brings San Ace DC axial fan cooling to industrial machinery and electrical enclosures. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. The referenced configuration is designed for oil-resistant service, supporting cooling in industrial locations where airborne oil may reach the fan. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Check exhaust separation from the intake zone. This confirms cooling margin before volume production.

Application Industry

Industrial Equipment

9WF0424H6503 is suitable for industrial machinery and oil-exposed cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Frequently Asked Questions

What certifications apply to 9WF0424H6503?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 9WF0424H6503?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

What maintenance does 9WF0424H6503 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 9WF0424H6503 instead of a standard fan?

Its 24 VDC rating and documented the 40 × 40 × 20 mm format is the primary stated selection detail. provide model-specific selection data without relying on unlisted claims.

What input power is listed for 9WF0424H6503?

Input power is not stated in the supplied row and requires confirmation.
