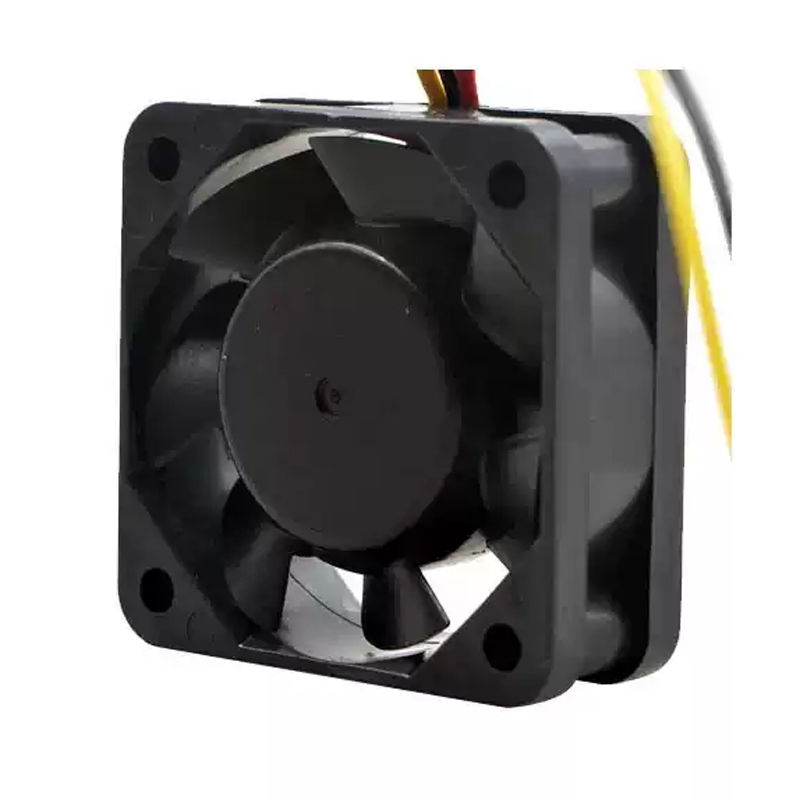

9WF0424H7D03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WF0424H7D03 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Engineered for industrial controls, power cabinets, and energy systems, Sanyo Denki 9WF0424H7D03 is a 24 VDC DC axial fan in a 40 × 40 × 15 mm frame. The 40 × 40 × 15 mm format is the primary stated selection detail. Its oil-resistant fan design and IP20 listing is the defining supplied feature. Focus: resistance curve checking acoustic value.

Datasheet:: 9WF0424H7D03 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404015

Product Features

Stable San Ace Fan

SANYO DENKI positions 9WF0424H7D03 as a DC axial fan for industrial machinery and electrical enclosures. It helps equipment designers manage local hot spots where natural convection is insufficient.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. The referenced configuration is designed for oil-resistant service, supporting cooling in industrial locations where airborne oil may reach the fan. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Map airflow around the hottest components. The review links cooling performance to the approved BOM.

Application Industry

Industrial Equipment

The San Ace 9WF0424H7D03 supports thermal management in industrial machinery and oil-exposed cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Frequently Asked Questions

Is 9WF0424H7D03 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 9WF0424H7D03 be matched to an enclosure?

Check its 40 × 40 × 15 mm size, mounting points, airflow direction, and system resistance.

Is 9WF0424H7D03 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Which application details matter most for 9WF0424H7D03?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

Does 9WF0424H7D03 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Can 9WF0424H7D03 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.
