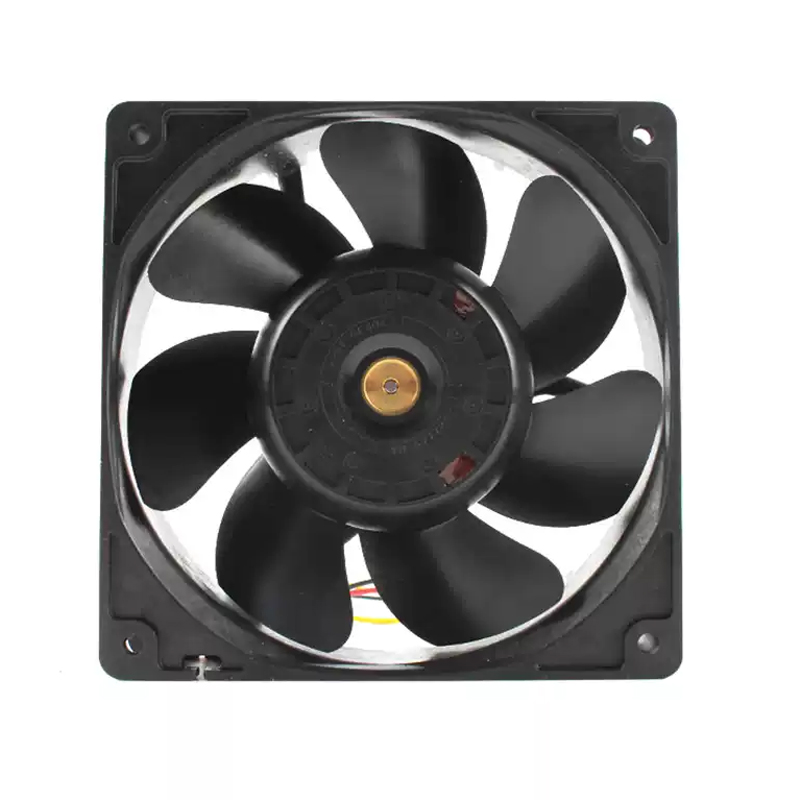

9WF1224H1D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WF1224H1D01 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The 9WF1224H1D01 is a Sanyo Denki 24 VDC, 120 × 120 × 38 mm DC axial fan for industrial controls, power cabinets, and energy systems. Its oil-resistant fan design and IP20 listing is the defining supplied feature. Treat the motor input as a primary input to enclosure sizing. Confirm environmental protection for the ordered version.

Datasheet:: 9WF1224H1D01 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038

Product Features

High Airflow Design

The San Ace 9WF1224H1D01 serves industrial machinery and electrical enclosures as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. The referenced configuration is designed for oil-resistant service, supporting cooling in industrial locations where airborne oil may reach the fan. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Check exhaust separation from the intake zone. The check aligns mechanical fit with cooling duty.

Application Industry

Industrial Equipment

The San Ace 9WF1224H1D01 supports thermal management in industrial machinery and oil-exposed cabinets. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Does 9WF1224H1D01 have a pressure rating?

No pressure value is supplied; request the performance curve if static pressure is important.

What certifications apply to 9WF1224H1D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 9WF1224H1D01?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

What airflow is listed for 9WF1224H1D01?

No airflow value is supplied for this row; obtain the official curve before selection.

Why choose 9WF1224H1D01 instead of a standard fan?

Its 24 VDC rating and documented the 120 × 120 × 38 mm format is the primary stated selection detail. provide model-specific selection data without relying on unlisted claims.

What supply voltage does 9WF1224H1D01 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.
