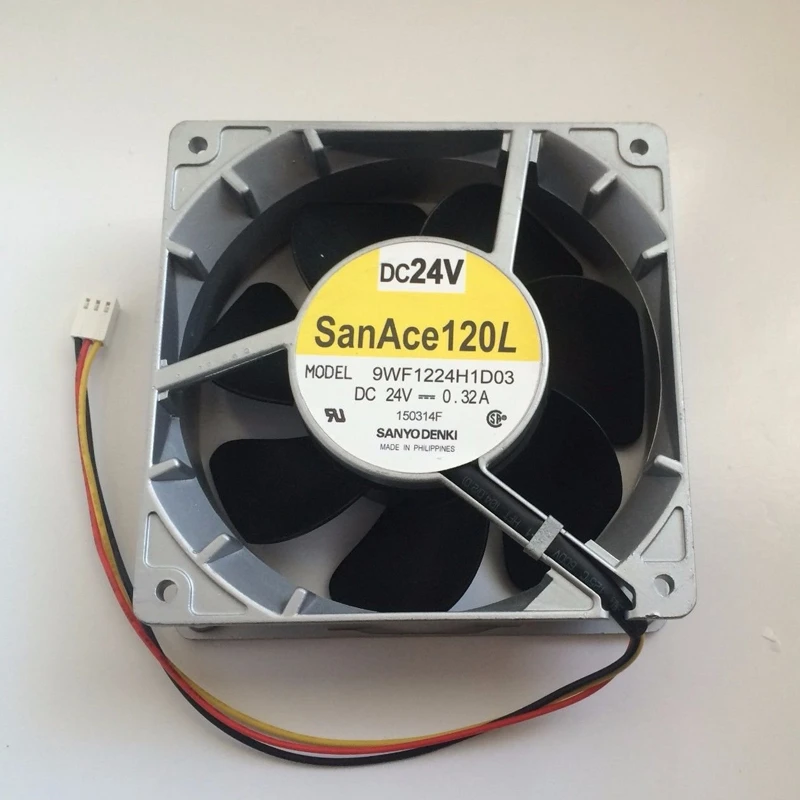

9WF1224H1D03 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WF1224H1D03 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Sanyo Denki 9WF1224H1D03 combines a 120 × 120 × 38 mm DC axial fan platform with a 24 VDC rating for industrial controls, power cabinets, and energy systems. Its oil-resistant fan design and IP20 listing is the defining supplied feature. The 120 × 120 × 38 mm format is the primary stated selection detail. Focus: enclosure space planning.

Datasheet:: 9WF1224H1D03 | Sanyo Denki 24VDC DC Axial Fan for industrial equipment and cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038

Product Features

Efficient Cooling

The SANYO DENKI 9WF1224H1D03 is a DC axial fan developed for industrial machinery and electrical enclosures. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

Engineers should review the model-specific fan curve against filters, grilles and enclosure resistance to confirm the required operating point. The referenced configuration is designed for oil-resistant service, supporting cooling in industrial locations where airborne oil may reach the fan. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Include filter loading in the airflow margin. The check aligns mechanical fit with cooling duty.

Application Industry

Industrial Equipment

The San Ace 9WF1224H1D03 supports thermal management in industrial machinery and oil-exposed cabinets. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What IP protection is documented for 9WF1224H1D03?

The reference lists IP20. Confirm that the exact ordered suffix carries the required environmental rating.

Does 9WF1224H1D03 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Can 9WF1224H1D03 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 9WF1224H1D03 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 9WF1224H1D03 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.

Is 9WF1224H1D03 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.
