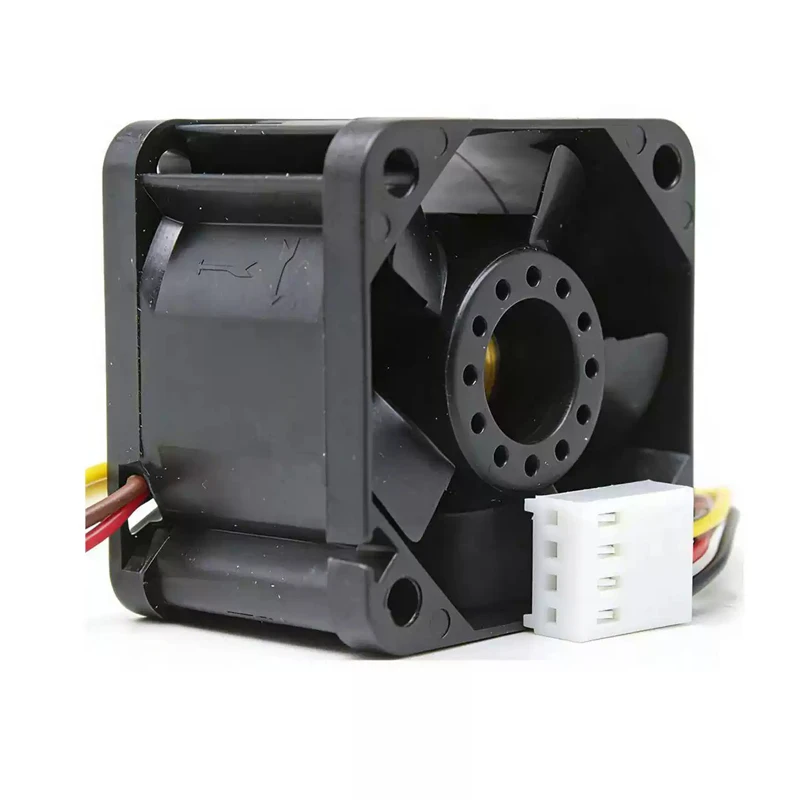

9WL0424P3G001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WL0424P3G001 | Sanyo Denki 24VDC 4.8W DC Axial Fan for solar inverter and energy storage cooling

Type:: Axial Fans

Industry:: New Energy

Description:: Equipment designers serving outdoor equipment and photovoltaic inverters can evaluate Sanyo Denki 9WL0424P3G001, a DC axial fan rated at 24 VDC and sized 40 × 40 × 28 mm. 15500 rpm is the model's most prominent operating value. Base equipment integration on the stated thermal-duty record. Validate mounting and wiring from the model drawing.

Datasheet:: 9WL0424P3G001 | Sanyo Denki 24VDC 4.8W DC Axial Fan for solar inverter and energy storage cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404028
Max.Air Flow(m³/h)	33.6
Max.Pressure(Pa)	310
Input Power(W)	4.8
Speed(rpm)	15500
Noise(db)	47

Product Features

Low Vibration Fan

The SANYO DENKI 9WL0424P3G001 is a DC axial fan developed for energy storage, photovoltaic inverters and charging equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

A listed maximum airflow of 33.6 m3/h and maximum pressure of 310 Pa give engineers a clear basis for matching the fan to enclosure resistance. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Include filter loading in the airflow margin. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment.

Application Industry

Industrial Equipment

9WL0424P3G001 is suitable for industrial machinery and oil-exposed cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What IP protection is documented for 9WL0424P3G001?

The reference lists IP68. Confirm that the exact ordered suffix carries the required environmental rating.

What airflow is listed for 9WL0424P3G001?

The worksheet lists 33.6 m³/h. Compare the operating point with system resistance and the official performance curve.

Why choose 9WL0424P3G001 instead of a standard fan?

Its 24 VDC rating and documented 15500 rpm is the model's most prominent operating value. provide model-specific selection data without relying on unlisted claims.

How noisy is 9WL0424P3G001?

The worksheet lists 47 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 9WL0424P3G001 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.
