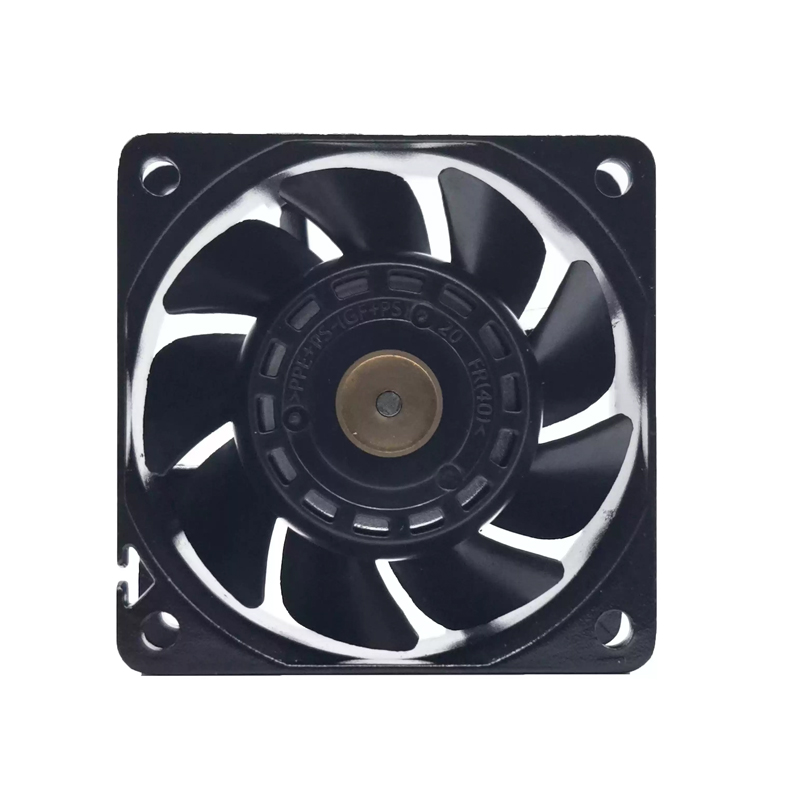

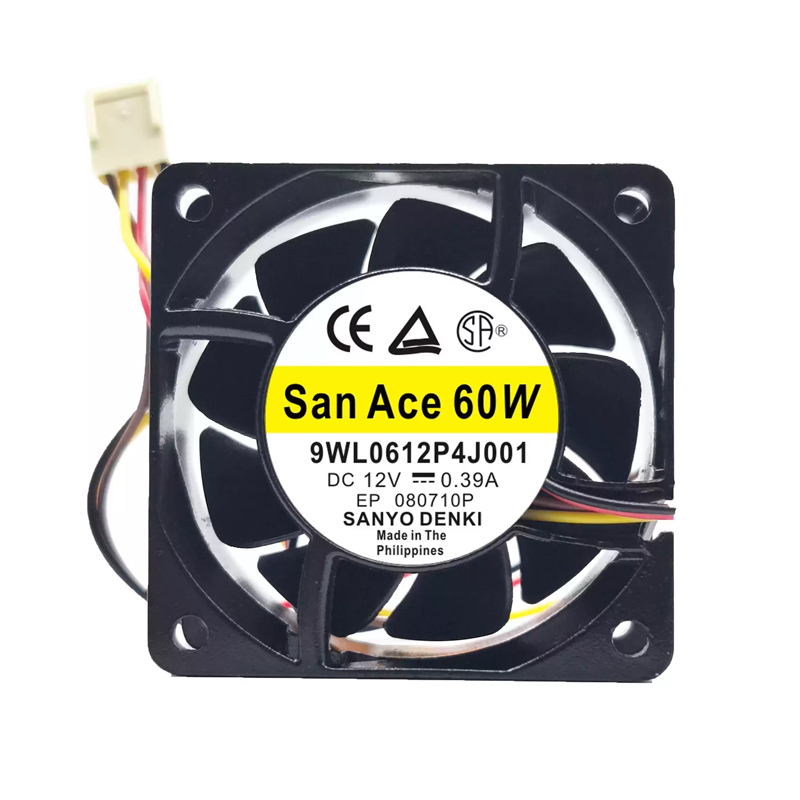

9WL0612P4J001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WL0612P4J001 | Sanyo Denki 12VDC 4.68W DC Axial Fan for solar inverter and energy storage cooling

Type:: Axial Fans

Industry:: New Energy

Description:: The 9WL0612P4J001 is a Sanyo Denki 12 VDC, 60 × 60 × 25 mm DC axial fan for outdoor equipment and photovoltaic inverters. Its oil-resistant fan design and IP68 listing is the defining supplied feature. Use the documented electrical load when planning replacement evaluation. Validate mounting and wiring from the model drawing.

Datasheet:: 9WL0612P4J001 | Sanyo Denki 12VDC 4.68W DC Axial Fan for solar inverter and energy storage cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	606025 mm
Max.Air Flow(m³/h)	66
Max.Pressure(Pa)	182
Input Power(W)	4.68
Speed(rpm)	8650
Noise(db)	47

Product Features

Reliable Fan Cooling

9WL0612P4J001 brings San Ace DC axial fan cooling to energy storage, photovoltaic inverters and charging equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

A listed maximum airflow of 66 m3/h and maximum pressure of 182 Pa give engineers a clear basis for matching the fan to enclosure resistance. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Include filter loading in the airflow margin. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment.

Application Industry

Industrial Equipment

9WL0612P4J001 is suitable for industrial machinery and oil-exposed cabinets. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

Is 9WL0612P4J001 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 9WL0612P4J001?

Use rated voltage, 60 × 60 × 25 mm dimensions, 66 m³/h airflow, 8650 rpm, and 4.68 W input for preliminary comparison.

What certifications apply to 9WL0612P4J001?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 9WL0612P4J001?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 9WL0612P4J001?

The worksheet lists 66 m³/h. Compare the operating point with system resistance and the official performance curve.
