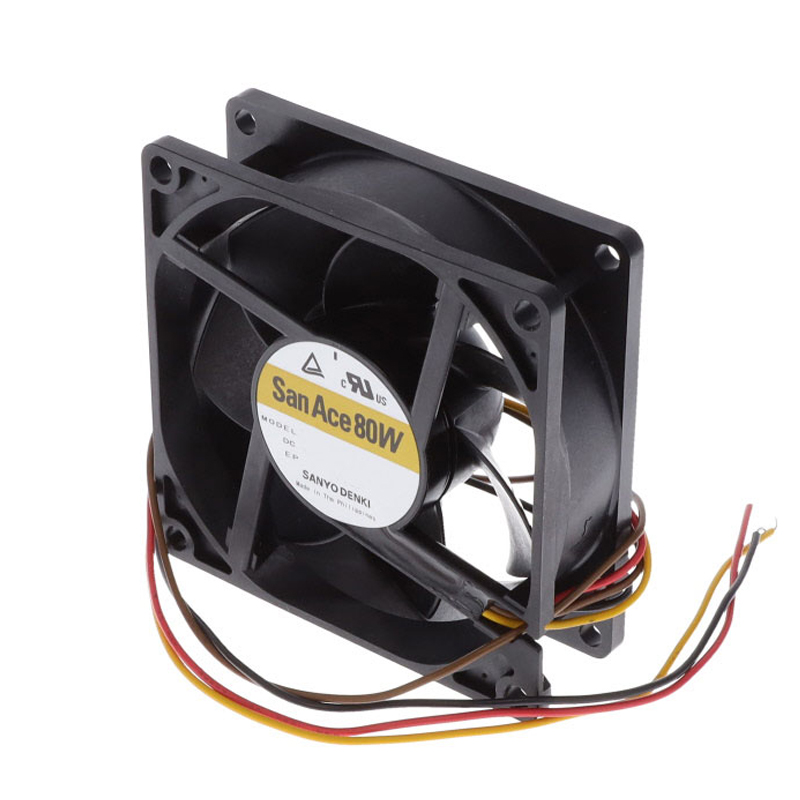

9WL0824P4G001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WL0824P4G001 | Sanyo Denki 24VDC 3.36W DC Axial Fan for solar inverter and energy storage cooling

Type:: Axial Fans

Industry:: New Energy

Description:: The 9WL0824P4G001 is a Sanyo Denki 24 VDC, 80 × 80 × 25 mm DC axial fan for outdoor equipment and photovoltaic inverters. Its oil-resistant fan design and IP68 listing is the defining supplied feature. The recorded airflow profile should guide airflow-path design. Confirm control inputs against the complete ordering code.

Datasheet:: 9WL0824P4G001 | Sanyo Denki 24VDC 3.36W DC Axial Fan for solar inverter and energy storage cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	92.4
Max.Pressure(Pa)	98
Input Power(W)	3.36
Speed(rpm)	5500
Noise(db)	43

Product Features

Pressure Cooling

9WL0824P4G001 is intended for dependable forced-air cooling in energy storage, photovoltaic inverters and charging equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

The rated peak airflow of 92.4 m3/h combines with 98 Pa pressure capability to support useful flow after installation losses are considered. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Qualify performance with the production guard. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment.

Application Industry

Industrial Equipment

For industrial machinery and oil-exposed cabinets, 9WL0824P4G001 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Frequently Asked Questions

What certifications apply to 9WL0824P4G001?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 9WL0824P4G001?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 9WL0824P4G001?

The worksheet lists 92.4 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 9WL0824P4G001?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

How noisy is 9WL0824P4G001?

The worksheet lists 43 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
