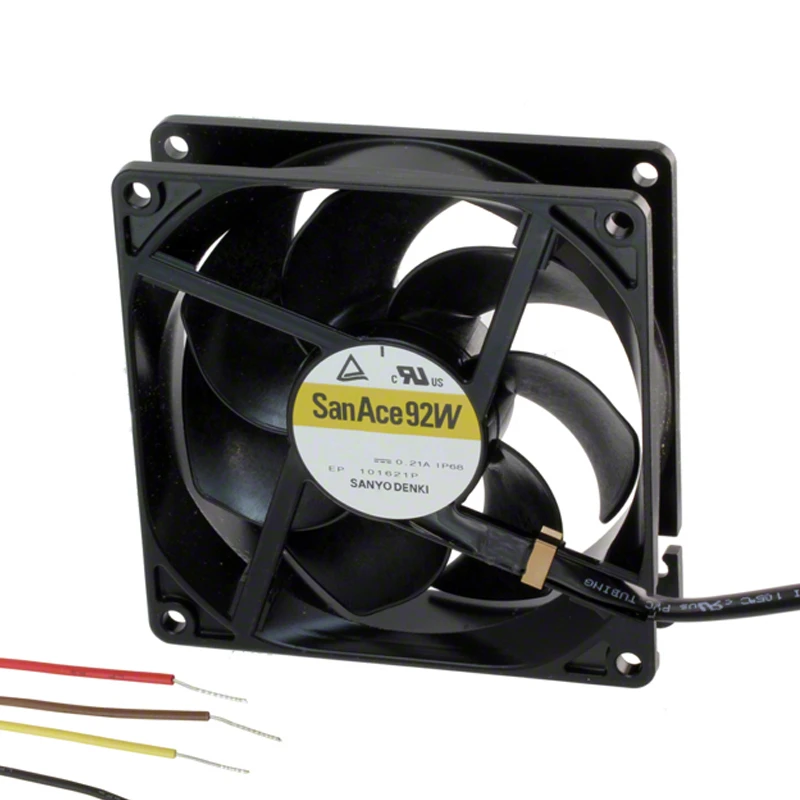

9WL0924P4J001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WL0924P4J001 | Sanyo Denki 24VDC 5.04W DC Axial Fan for solar inverter and energy storage cooling

Type:: Axial Fans

Industry:: New Energy

Description:: Within outdoor equipment and photovoltaic inverters, 9WL0924P4J001 provides a 92 × 92 × 25 mm, 24 VDC DC axial fan configuration. Its oil-resistant fan design and IP68 listing is the defining supplied feature. Its listed airflow of 132.09 m³/h is the standout performance value. Check enclosure space planning installation footprint.

Datasheet:: 9WL0924P4J001 | Sanyo Denki 24VDC 5.04W DC Axial Fan for solar inverter and energy storage cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929225
Max.Air Flow(m³/h)	132.09
Max.Pressure(Pa)	104.6
Input Power(W)	5.04
Speed(rpm)	5000
Noise(db)	44

Product Features

Stable San Ace Fan

9WL0924P4J001 brings San Ace DC axial fan cooling to energy storage, photovoltaic inverters and charging equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 132.09 m3/h airflow and 104.6 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Preserve outlet space to limit recirculation. This improves consistency between prototype and production. Confirm the final fan curve in the assembled equipment.

Application Industry

Industrial Equipment

The San Ace 9WL0924P4J001 supports thermal management in industrial machinery and oil-exposed cabinets. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Frequently Asked Questions

What maintenance does 9WL0924P4J001 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 9WL0924P4J001 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 9WL0924P4J001?

The worksheet lists 5.04 W. Check supply capacity and operating conditions before commissioning.

What speed is listed for 9WL0924P4J001?

The listed speed is 5000 rpm. Confirm control conditions and the actual duty point.

Is 9WL0924P4J001 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Does 9WL0924P4J001 have a pressure rating?

The worksheet lists 104.6 Pa. Use the official curve to match it to system resistance.
