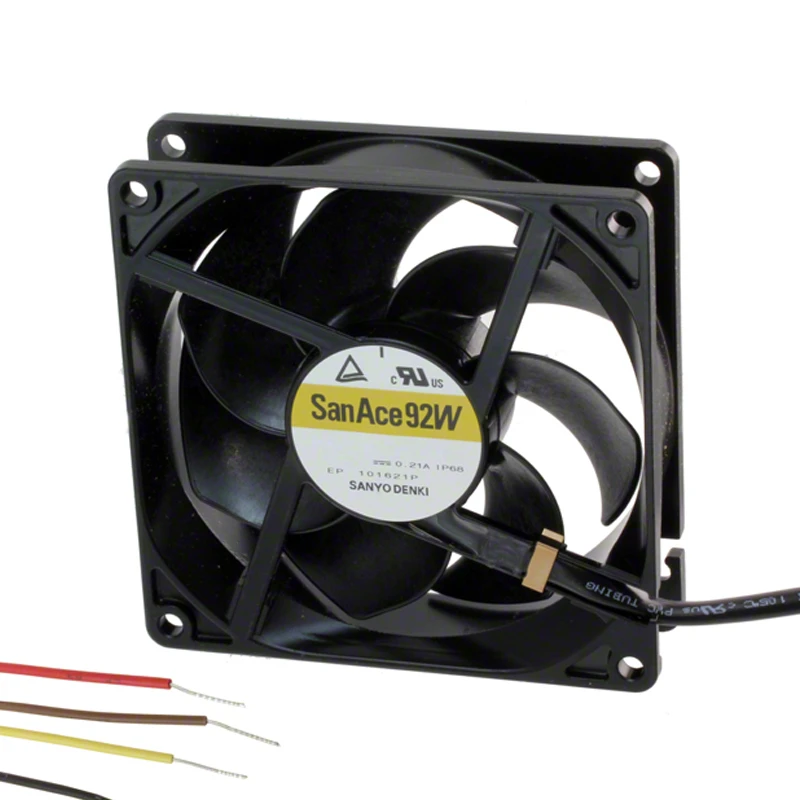

9WL0948P1H601 Sanyo Axial Fan

Brand :: Sanyo

Model:: 9WL0948P1H601 | Sanyo Denki 48VDC 23.04W DC Axial Fan for solar inverter and energy storage cooling

Type:: Axial Fans

Industry:: New Energy

Description:: Within outdoor equipment and photovoltaic inverters, 9WL0948P1H601 provides a 92 × 92 × 38 mm, 48 VDC DC axial fan configuration. Its oil-resistant fan design and IP68 listing is the defining supplied feature. The supplied row lists 61 dB as an important acoustic selection value. Selection focus: wiring scheme review duty-point values.

Datasheet:: 9WL0948P1H601 | Sanyo Denki 48VDC 23.04W DC Axial Fan for solar inverter and energy storage cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	48
Size(mm)	929238
Max.Air Flow(m³/h)	222.02
Max.Pressure(Pa)	429.9
Input Power(W)	23.04
Speed(rpm)	9000
Noise(db)	61

Product Features

Pressure Cooling

The SANYO DENKI 9WL0948P1H601 is a DC axial fan developed for energy storage, photovoltaic inverters and charging equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

The rated peak airflow of 222.02 m3/h combines with 429.9 Pa pressure capability to support useful flow after installation losses are considered. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Keep the impeller path clear of wiring. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Industrial Equipment

For industrial machinery and oil-exposed cabinets, 9WL0948P1H601 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What is the lead time for 9WL0948P1H601?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 9WL0948P1H601 require?

The worksheet lists 48 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What should be checked if 9WL0948P1H601 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

Is 9WL0948P1H601 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Which specifications define 9WL0948P1H601?

Use rated voltage, 92 × 92 × 38 mm dimensions, 222.02 m³/h airflow, 9000 rpm, and 23.04 W input for preliminary comparison.
