EF92252BX-1000U-G99 SUNON Axial Fan

Brand :: SUNON

Model:: EF92252BX-1000U-G99 | SUNON 24V 2.16W 92x92x25mm 93.4m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: For telecom cabinets, base stations, and network equipment, EF92252BX-1000U-G99 combines 24 VDC operation with a 92 × 92 × 25 mm DC axial fan design. Up to 93.4 m³/h is its most prominent listed performance figure. Treat the rated dataset as a primary input to airflow-path design. Obtain the applicable curve before final duty-point approval.

Datasheet:: EF92252BX-1000U-G99 | SUNON 24V 2.16W 92x92x25mm 93.4m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x25mm
Max.Air Flow(m³/h)	93.4
Max.Pressure(Pa)	52.3
Input Power(W)	2.16
Speed(rpm)	3400
Noise(db)	36.9

Product Features

Reliable Fan Cooling

SUNON EF92252BX-1000U-G99 brings active air movement to industrial equipment. This DC brushless axial fan helps equipment designers control thermal conditions around densely arranged parts.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

OEM teams specifying EF92252BX-1000U-G99 should check airflow direction and complete prototype trials during prototype approval. A documented interface review helps purchasing teams control fit, cooling continuity and replacement planning. Verify orientation so heated air does not recirculate through the inlet.

Application Industry

Industrial Equipment

SUNON EF92252BX-1000U-G99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What bearing information is confirmed for EF92252BX-1000U-G99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should EF92252BX-1000U-G99 be matched to an enclosure?

Review its 92 × 92 × 25 mm size, 93.4 m³/h airflow, 52.3 Pa pressure, system resistance, and available mounting space.

What certification information is listed for EF92252BX-1000U-G99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is EF92252BX-1000U-G99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for EF92252BX-1000U-G99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Related Products

EF92252B1-000U-G99 | SUNON 24V 1.52W 92x92x25mm 87.5m3/h DC Axial Fan for Industrial Cooling

The EF92252B1-000U-G99 is SUNON's 24 VDC, 92 × 92 × 25 mm DC axial fan option for telecom cabinets, base stations, and network equipment. Its 3000 rpm rating defines a lower-speed operating point. Review its selection parameters during airflow-path design. Obtain the applicable curve before final duty-point approval.

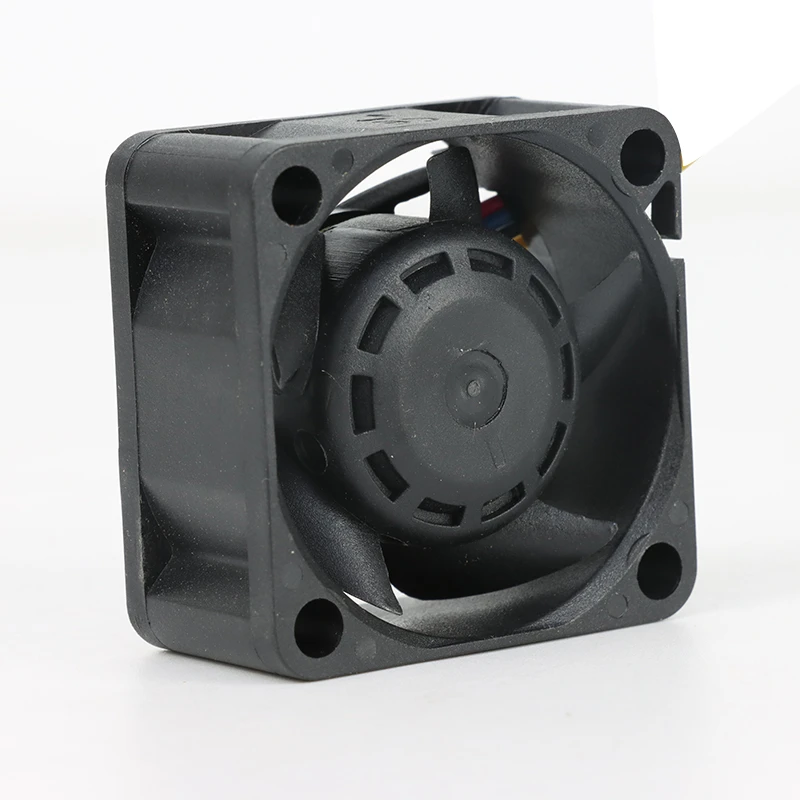

EF40201BX-1000U-G99 | SUNON 12V 0.78W 40x40x20mm 8200rpm DC Axial Fan for Industrial Cooling

EF40201BX-1000U-G99 serves telecom cabinets, base stations, and network equipment as a 40 × 40 × 20 mm DC axial fan rated at 12 VDC. 8200 rpm is the model's most distinctive operating parameter. The recorded static-pressure entry should guide airflow-path design. Obtain the applicable curve before final duty-point approval.

EF50151BX-1L02C-S99 | SUNON 12V 1.8W 50x50x15mm DC Centrifugal Blower for Industrial Cooling

Within telecom cabinets, base stations, and network equipment, EF50151BX-1L02C-S99 provides a 50 × 50 × 15 mm, 12 VDC DC blower configuration. Its 9.2 m³/h airflow rating suits the stated equipment-cooling role. For wiring review, start with the supplied dimensional envelope. Confirm environmental protection for the ordered version.

EF40201BX-1Q140-S99 | SUNON 12V 0.78W 40x40x20mm 18.3m3/h DC Axial Fan for Industrial Cooling

The EF40201BX-1Q140-S99 is SUNON's 12 VDC, 40 × 40 × 20 mm DC axial fan option for telecom cabinets, base stations, and network equipment. 8200 rpm is the model's most distinctive operating parameter. Use the documented cooling specification when planning mounting verification. Validate mounting and wiring from the model drawing.

EF50151BX-1C02C-S99 | SUNON 12V 1.8W 50x50x15mm DC Centrifugal Blower for Industrial Cooling

The 12 VDC SUNON EF50151BX-1C02C-S99 is a DC blower sized 50 × 50 × 15 mm for telecom cabinets, base stations, and network equipment. Its 9.2 m³/h airflow rating suits the stated equipment-cooling role. Treat the installation footprint as a primary input to mounting verification. Validate mounting and wiring from the model drawing.

EF50151BX-1C02C-A99 | SUNON 12V 1.8W 50x50x15mm DC Centrifugal Blower for Industrial Cooling

The EF50151BX-1C02C-A99 is SUNON's 12 VDC, 50 × 50 × 15 mm DC blower option for telecom cabinets, base stations, and network equipment. Its 9.2 m³/h airflow rating suits the stated equipment-cooling role. The recorded mounting size should guide mounting verification. Validate mounting and wiring from the model drawing.
