ME45101V1-000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: ME45101V1-000U-A99 | SUNON 12V 1.32W 45x45x10mm 20m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The ME45101V1-000U-A99 is SUNON's 12 VDC, 45 × 45 × 10 mm DC blower option for industrial electronics and equipment cooling. Its 20 m³/h airflow rating suits the stated equipment-cooling role. Use the documented ventilation capacity when planning procurement comparison. Use the latest specification for frequency and tolerance limits.

Datasheet:: ME45101V1-000U-A99 | SUNON 12V 1.32W 45x45x10mm 20m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	45x45x10mm
Max.Air Flow(m³/h)	20
Max.Pressure(Pa)	44.8
Input Power(W)	1.32
Speed(rpm)	6500
Noise(db)	32.5

Product Features

MagLev Cooling

SUNON ME45101V1-000U-A99 supports industrial equipment with DC brushless axial fan airflow. It is intended for installations where predictable air exchange is central to equipment stability.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

To integrate ME45101V1-000U-A99 effectively, review outlet geometry at equipment level and arrange system-resistance review before ordering. Confirmed system compatibility supports stable cooling and repeatable procurement. Include filters, vents and grilles when checking available airflow.

Application Industry

Industrial Equipment

SUNON ME45101V1-000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Is ME45101V1-000U-A99 compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

How should buyers confirm availability of ME45101V1-000U-A99?

Stock and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What voltage is required by ME45101V1-000U-A99?

The listed rating is 12 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

What airflow value is listed for ME45101V1-000U-A99?

The worksheet lists up to 20 m³/h. Verify the operating point against system resistance.

Does ME45101V1-000U-A99 have a documented pressure rating?

Yes. The worksheet lists up to 44.8 Pa; compare it with the system curve.

How should ME45101V1-000U-A99 be matched to an enclosure?

Review its 45 × 45 × 10 mm size, 20 m³/h airflow, 44.8 Pa pressure, system resistance, and available mounting space.

Related Products

ME50101V1-000U-A99 | SUNON 12V 1.32W 50x50x10mm 23.46m3/h DC Axial Fan for Industrial Cooling

The ME50101V1-000U-A99 is SUNON's 12 VDC, 50 × 50 × 10 mm DC blower option for industrial electronics and equipment cooling. Its 23.46 m³/h airflow rating suits the stated equipment-cooling role. Base thermal validation on the stated model record. Review connector, alarm, and sensor options separately.

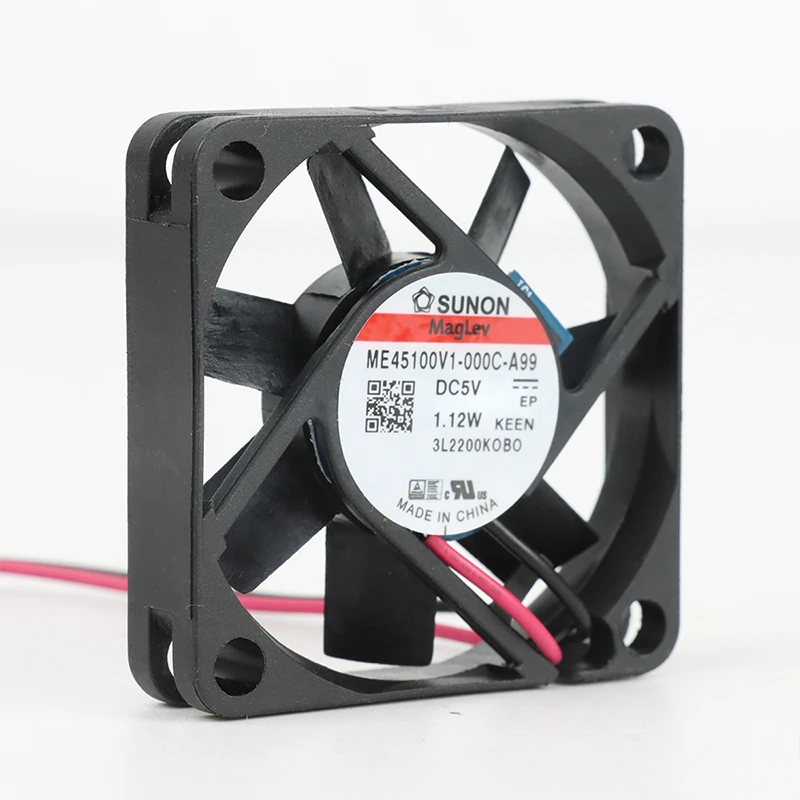

ME45100V1-000U-A99 | SUNON 5V 1.12W 45x45x10mm 18.7m3/h DC Axial Fan for Industrial Cooling

The ME45100V1-000U-A99 is SUNON's 5 VDC, 45 × 45 × 10 mm DC blower option for industrial electronics and equipment cooling. Its 18.7 m³/h airflow rating suits the stated equipment-cooling role. The recorded model record should guide power-budget planning. Confirm control inputs against the complete ordering code.

ME80251V1-000U-A99 | SUNON 12V 1.7W 80x80x25mm 69.7m3/h DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, SUNON ME80251V1-000U-A99 serves as a 80 × 80 × 25 mm DC blower operating at 12 VDC. Its 3200 rpm rating defines a lower-speed operating point. For procurement comparison, start with the supplied product configuration. Use the latest specification for frequency and tolerance limits.

ME70201V1-000U-A99 | SUNON 12V 1.56W 70x70x20mm 49.3m3/h DC Axial Fan for Industrial Cooling

SUNON ME70201V1-000U-A99 combines a 70 × 70 × 20 mm DC blower platform with a 12 VDC rating for industrial electronics and equipment cooling. 34.9 Pa maximum pressure is the standout documented duty-point value. Treat the suffix definition as a primary input to procurement comparison. Use the latest specification for frequency and tolerance limits.

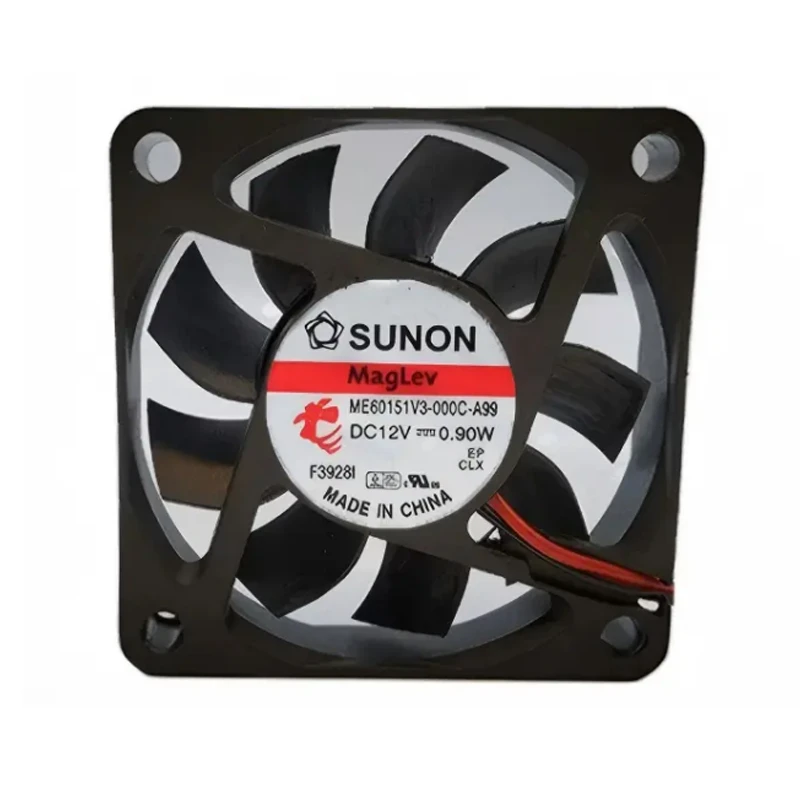

ME60151V3-000U-A99 | SUNON 12V 0.9W 60x60x15mm 30.77m3/h DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, SUNON ME60151V3-000U-A99 serves as a 60 × 60 × 15 mm DC blower operating at 12 VDC. A listed input of 0.9 W is the model's notable electrical characteristic. During mounting verification, compare the model's rated dataset. Validate mounting and wiring from the model drawing.

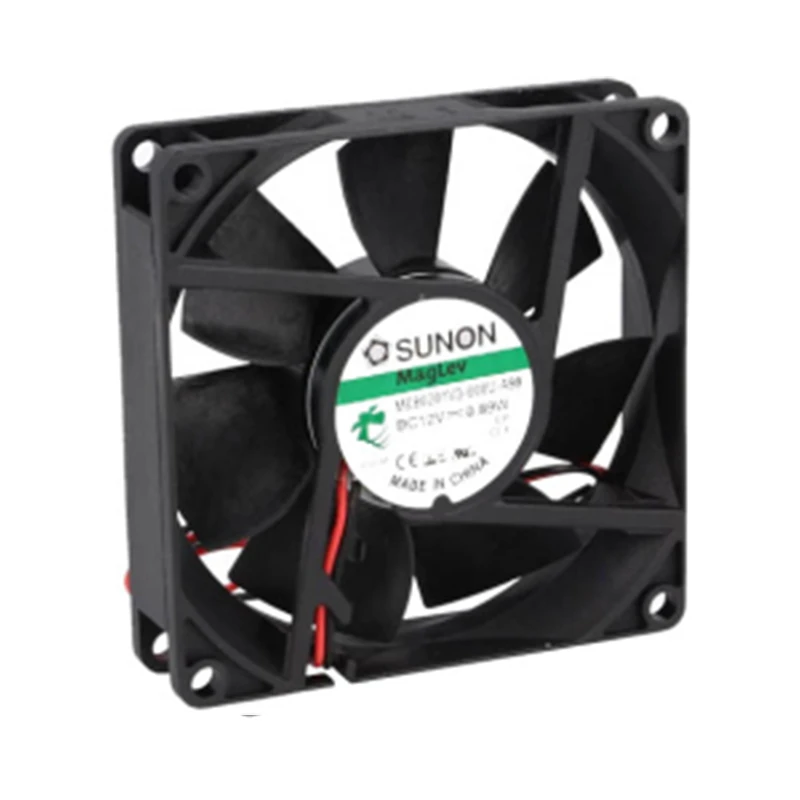

ME80201V3-000U-A99 | SUNON 12V 0.89W 80x80x20mm 49.3m3/h DC Axial Fan for Industrial Cooling
