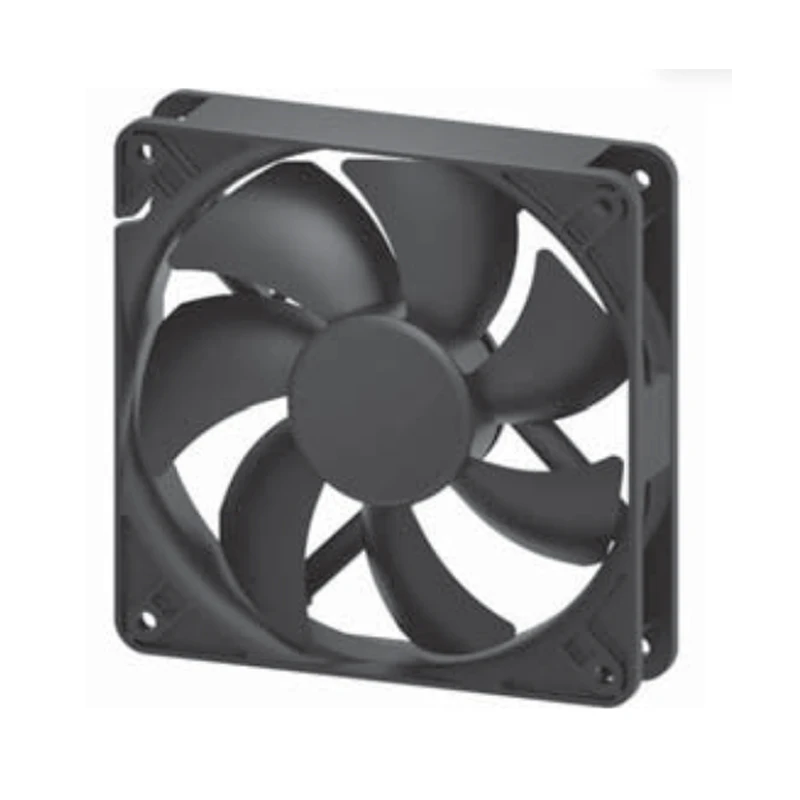

MEC0252V2-0000-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MEC0252V2-0000-A99 | SUNON 24V 3.5W 120x120x25mm 158m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON configures MEC0252V2-0000-A99 as a 120 × 120 × 25 mm DC axial fan for industrial electronics and equipment cooling, operating at 24 VDC. Its 2700 rpm rating defines a lower-speed operating point. During airflow balancing, compare the model's pressure capability. Review connector, alarm, and sensor options separately.

Datasheet:: MEC0252V2-0000-A99 | SUNON 24V 3.5W 120x120x25mm 158m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120x120x25mm
Max.Air Flow(m³/h)	158
Max.Pressure(Pa)	54.8
Input Power(W)	3.5
Speed(rpm)	2700
Noise(db)	40.5

Product Features

MagLev Cooling

The MEC0252V2-0000-A99 from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

A documented free-air delivery of up to 158 m3/h supports heat-removal planning. Filters, guards and restricted passages must be included when selecting the real duty point. A documented PWM input allows system demand to regulate speed, supporting part-load energy use and acoustic control.

A dependable MEC0252V2-0000-A99 installation starts with a review of exhaust separation. Complete system-resistance review in equipment qualification to confirm compatibility, operating margin and the information needed for repeat orders. Separate discharge air from the intake path inside the finished enclosure.

Application Industry

Industrial Equipment

SUNON MEC0252V2-0000-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What airflow value is listed for MEC0252V2-0000-A99?

The worksheet lists up to 158 m³/h. Verify the operating point against system resistance.

Does MEC0252V2-0000-A99 have a documented pressure rating?

Yes. The worksheet lists up to 54.8 Pa; compare it with the system curve.

Which performance figures define MEC0252V2-0000-A99?

Use the listed voltage, size, 158 m³/h airflow, 2700 rpm, and 3.5 W input for preliminary comparison.

What certification information is listed for MEC0252V2-0000-A99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

What protection rating does MEC0252V2-0000-A99 have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

Related Products

MEC0382V3-0000-A99 | SUNON 24V 3.1W 120x120x38mm 158m3/h DC Axial Fan for Industrial Cooling

For ventilation needs in industrial electronics and equipment cooling, the MEC0382V3-0000-A99 provides a 24 VDC DC axial fan configuration measuring 120 × 120 × 38 mm. Its 2100 rpm rating defines a lower-speed operating point. The recorded sound level should guide airflow balancing. Review connector, alarm, and sensor options separately.

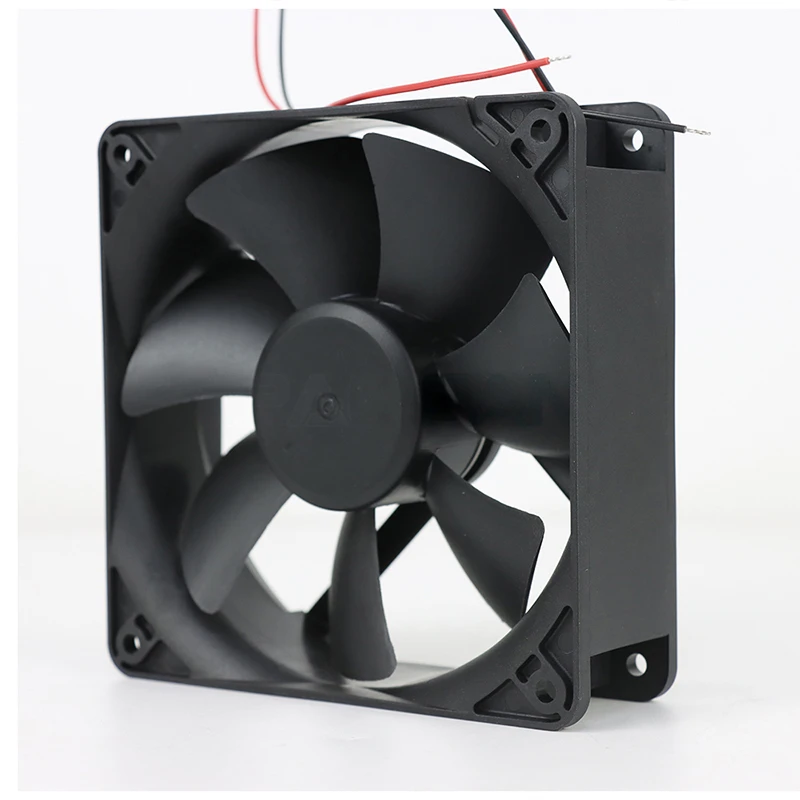

MEC0382V2-0000-A99 | SUNON 24V 5.4W 120x120x38mm 197.1m3/h DC Axial Fan for Industrial Cooling
