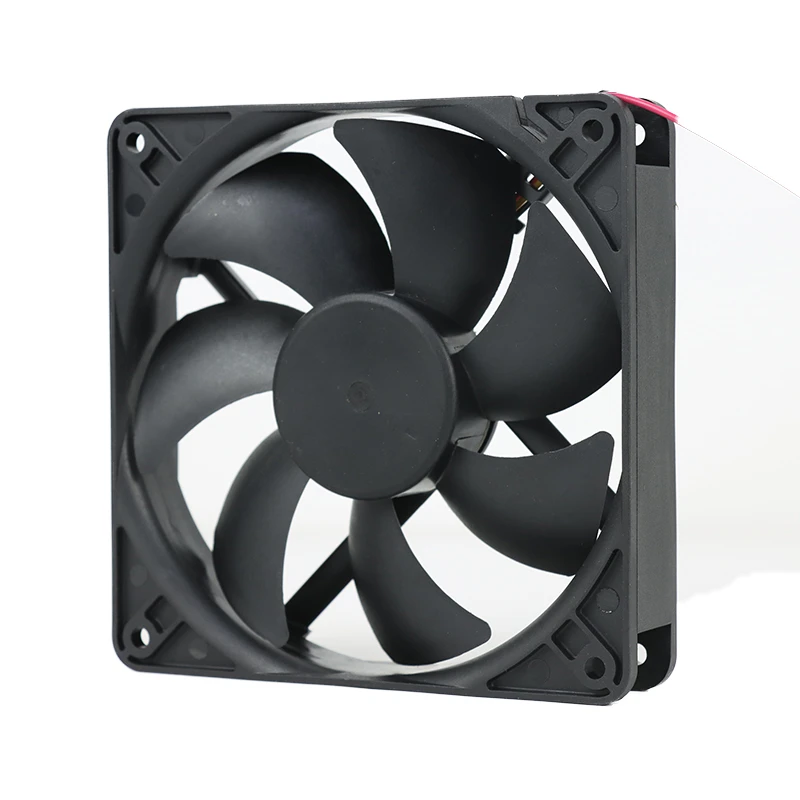

MEC0252V3-0000-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MEC0252V3-0000-A99 | SUNON 24V 2W 120x120x25mm 127.4m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The MEC0252V3-0000-A99 is SUNON's 24 VDC, 120 × 120 × 25 mm DC axial fan option for industrial electronics and equipment cooling. Its 2200 rpm rating defines a lower-speed operating point. Treat the airflow profile as a primary input to airflow balancing. Review connector, alarm, and sensor options separately.

Datasheet:: MEC0252V3-0000-A99 | SUNON 24V 2W 120x120x25mm 127.4m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120x120x25mm
Max.Air Flow(m³/h)	127.4
Max.Pressure(Pa)	39.9
Input Power(W)	2
Speed(rpm)	2200
Noise(db)	34

Product Features

MagLev Cooling

Designed for industrial equipment, the SUNON MEC0252V3-0000-A99 provides DC brushless axial fan cooling in a format suited to equipment integration. It helps limit local heat buildup during operation.

A documented PWM input allows system demand to regulate speed, supporting part-load energy use and acoustic control. Separating cool intake air from warm exhaust limits recirculation and improves heat-transfer effectiveness inside the equipment.

For MEC0252V3-0000-A99 integration, prioritize inlet clearance. Include system-resistance review in engineering approval, and confirm the full model interface in equipment qualification. This supports reliable cooling and traceable purchasing. Include filters, vents and grilles when checking available airflow.

Application Industry

Industrial Equipment

SUNON MEC0252V3-0000-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What noise data are available for MEC0252V3-0000-A99?

The worksheet lists 34 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What airflow value is listed for MEC0252V3-0000-A99?

The worksheet lists up to 127.4 m³/h. Verify the operating point against system resistance.

What bearing information is confirmed for MEC0252V3-0000-A99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should MEC0252V3-0000-A99 be matched to an enclosure?

Review its 120 × 120 × 25 mm size, 127.4 m³/h airflow, 39.9 Pa pressure, system resistance, and available mounting space.

Can MEC0252V3-0000-A99 serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

What protection rating does MEC0252V3-0000-A99 have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.
