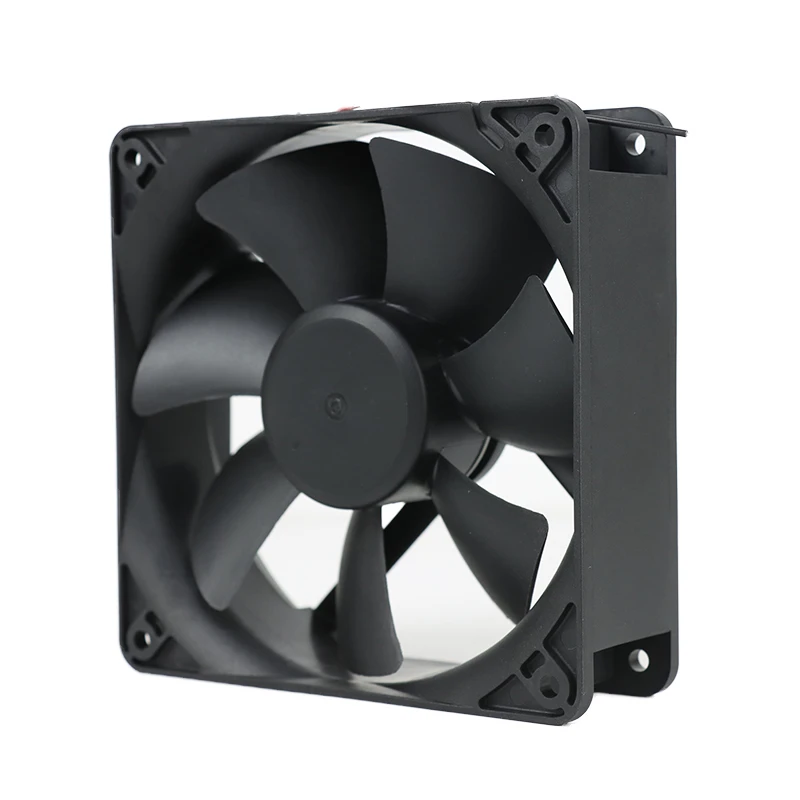

MEC0382V1-000U-G99 SUNON Axial Fan

Brand :: SUNON

Model:: MEC0382V1-000U-G99 | SUNON 24V 9.19W 120x120x38mm 3100rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Equipment designers working with industrial electronics and equipment cooling can evaluate SUNON MEC0382V1-000U-G99, a DC axial fan rated at 24 VDC and sized 120 × 120 × 38 mm. Its 3100 rpm rating defines a lower-speed operating point. Review its speed benchmark during airflow balancing. Review connector, alarm, and sensor options separately.

Datasheet:: MEC0382V1-000U-G99 | SUNON 24V 9.19W 120x120x38mm 3100rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	120x120x38mm
Max.Pressure(Pa)	87.2
Input Power(W)	9.19
Speed(rpm)	3100

Product Features

MagLev Cooling

The SUNON MEC0382V1-000U-G99 positions a DC brushless axial fan for industrial equipment. Its airflow path supports heat removal from enclosed components and toward the equipment exhaust.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats.

OEM teams specifying MEC0382V1-000U-G99 should check airflow direction and complete system-resistance review in equipment qualification. A documented interface review helps purchasing teams control fit, cooling continuity and replacement planning. Verify orientation so heated air does not recirculate through the inlet. The final assembly should be tested under its expected thermal load.

Application Industry

Industrial Equipment

SUNON MEC0382V1-000U-G99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What should be checked if MEC0382V1-000U-G99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What bearing information is confirmed for MEC0382V1-000U-G99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

Which performance figures define MEC0382V1-000U-G99?

Use the listed voltage, size, 3100 rpm, and 9.19 W input for preliminary comparison.

What certification information is listed for MEC0382V1-000U-G99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is MEC0382V1-000U-G99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.
