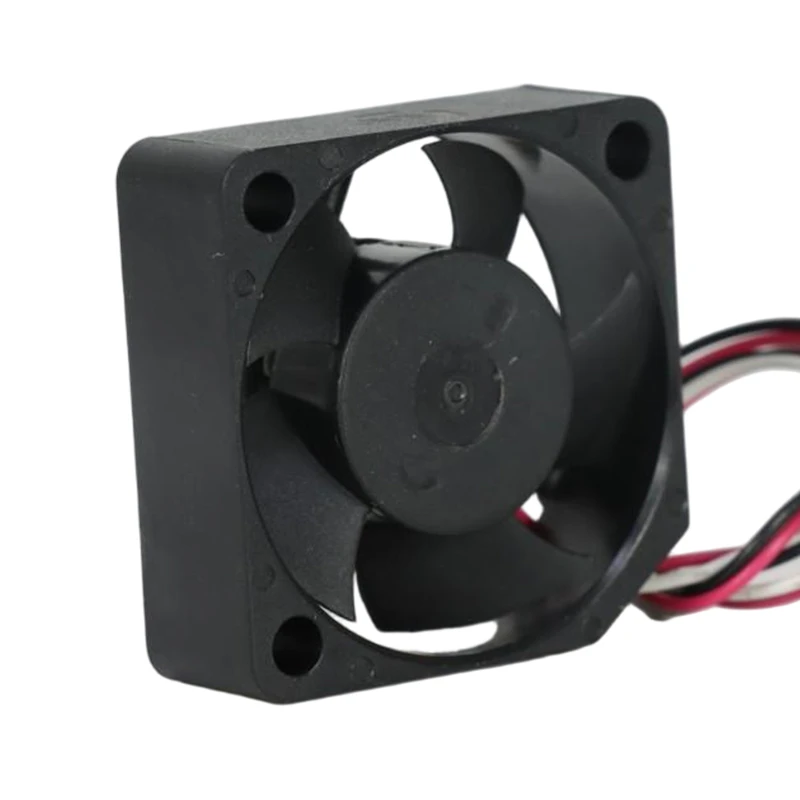

MF30101V1-1Q020-S99 SUNON Axial Fan

Brand :: SUNON

Model:: MF30101V1-1Q020-S99 | SUNON 12V 0.66W 30x30x10mm 9.3m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: SUNON MF30101V1-1Q020-S99 combines a 30 × 30 × 10 mm DC axial fan platform with a 12 VDC rating for telecom cabinets and network equipment. 11500 rpm is the model's most distinctive operating parameter. Use the documented static-pressure entry when planning mounting verification. Validate mounting and wiring from the model drawing.

Datasheet:: MF30101V1-1Q020-S99 | SUNON 12V 0.66W 30x30x10mm 9.3m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	30x30x10mm
Max.Air Flow(m³/h)	9.3
Max.Pressure(Pa)	62.3
Input Power(W)	0.66
Speed(rpm)	11500
Noise(db)	23

Product Features

MagLev Cooling

For telecommunications equipment, SUNON MF30101V1-1Q020-S99 serves as a DC brushless axial fan. The fan supports temperature control in equipment that runs through sustained or repeated duty cycles.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. The enclosure should direct air across the heat source because bypass flow can reduce cooling even when the fan runs normally.

Before adopting MF30101V1-1Q020-S99, engineers should evaluate mounting rigidity. Carry out wiring verification during prototype approval so the chosen fan can be released with clear installation and sourcing requirements. Match polarity, leads and control functions to the equipment harness.

Application Industry

Security Cameras

SUNON MF30101V1-1Q020-S99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF30101V1-1Q020-S99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF30101V1-1Q020-S99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What speed is listed for MF30101V1-1Q020-S99?

The listed speed is 11500 rpm. Confirm frequency, control method, and duty point for the installed system.

What should be checked if MF30101V1-1Q020-S99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to MF30101V1-1Q020-S99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

What input power is listed for MF30101V1-1Q020-S99?

The worksheet lists 0.66 W input. Check supply capacity and operating conditions before commissioning.

What equipment can use MF30101V1-1Q020-S99?

It is listed for telecom cabinets and network equipment. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

What protection rating does MF30101V1-1Q020-S99 have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.
