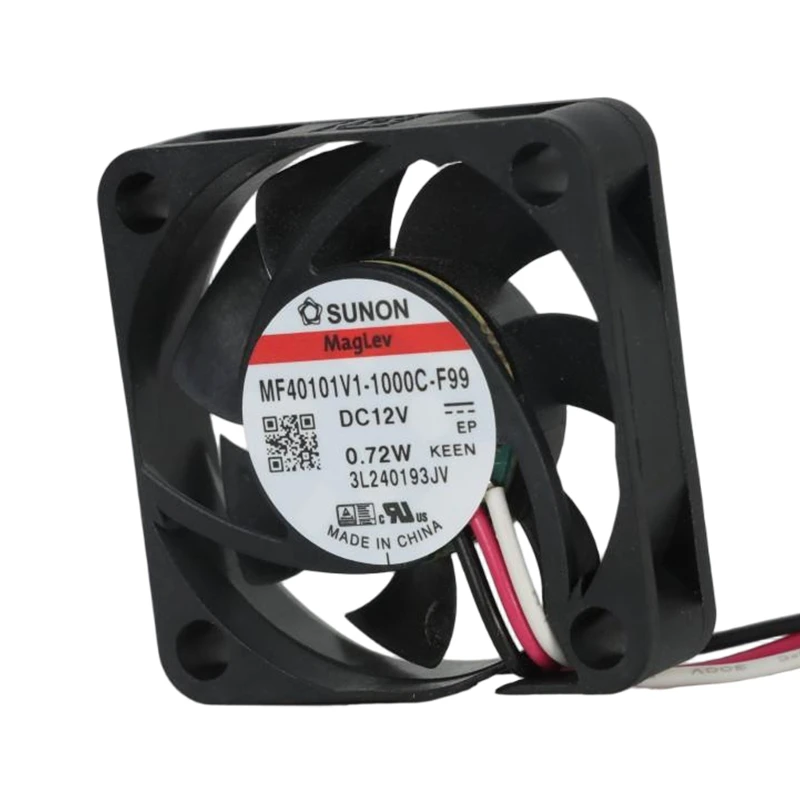

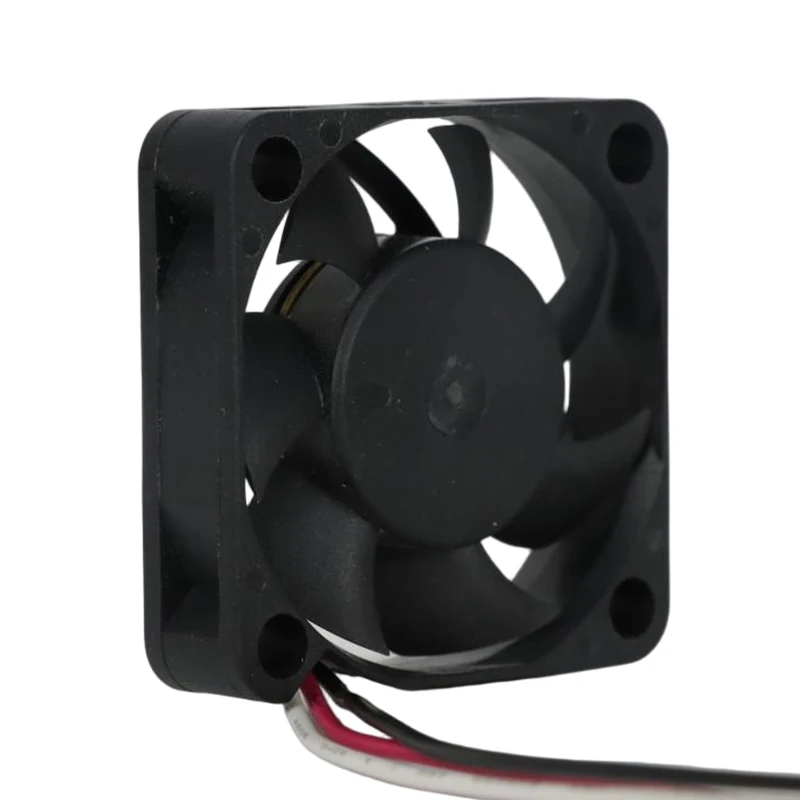

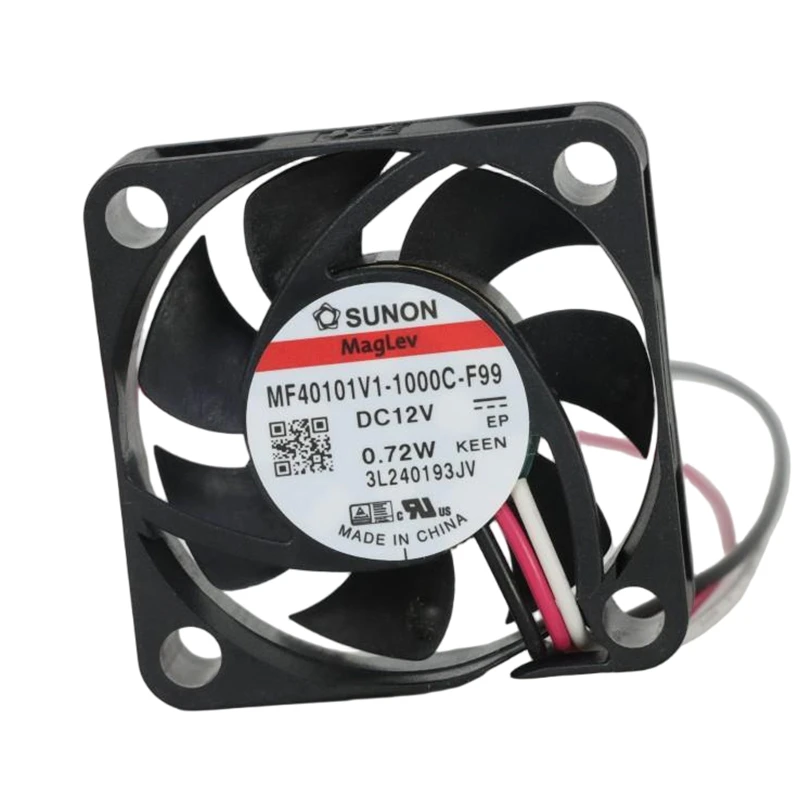

MF40101V1-1000U-F99 SUNON Axial Fan

Brand :: SUNON

Model:: MF40101V1-1000U-F99 | SUNON 12V 0.72W 40x40x10mm 13.6m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: MF40101V1-1000U-F99 serves telecom cabinets and network equipment as a 40 × 40 × 10 mm DC axial fan rated at 12 VDC. A listed input of 0.72 W is the model's notable electrical characteristic. Use the documented electrical load when planning acoustic assessment. Match the exact part number before approving a substitute.

Datasheet:: MF40101V1-1000U-F99 | SUNON 12V 0.72W 40x40x10mm 13.6m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404010
Max.Air Flow(m³/h)	13.6
Input Power(W)	0.72
Speed(rpm)	7000
Noise(db)	27.3

Product Features

MagLev Cooling

The MF40101V1-1000U-F99 from SUNON addresses cooling needs in telecommunications equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Matching the fan curve to the finished airflow path supports efficient cooling without unnecessary speed or power consumption.

Before adopting MF40101V1-1000U-F99, engineers should evaluate mounting rigidity. Carry out thermal-load testing during prototype approval so the chosen fan can be released with clear installation and sourcing requirements. Use a firm support surface to limit movement at the fan frame.

Application Industry

Security Cameras

SUNON MF40101V1-1000U-F99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF40101V1-1000U-F99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF40101V1-1000U-F99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

Is MF40101V1-1000U-F99 compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

How can MF40101V1-1000U-F99 affect operating cost?

Compare its listed 0.72 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What speed is listed for MF40101V1-1000U-F99?

The listed speed is 7000 rpm. Confirm frequency, control method, and duty point for the installed system.

What should be checked if MF40101V1-1000U-F99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to MF40101V1-1000U-F99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Related Products

MF40100V1-1000U-F99 | SUNON 5V 0.68W 40x40x10mm 7000rpm DC Axial Fan for Telecommunications

Positioned for telecom cabinets and network equipment, SUNON MF40100V1-1000U-F99 is a 5 VDC DC axial fan in a 40 × 40 × 10 mm frame. A listed input of 0.68 W is the model's notable electrical characteristic. Use the documented catalog specification when planning maintenance preparation. Confirm temperature and service-life limits from current data.

MF40100V1-100U-F99 | SUNON 5V 0.68W 40x40x10mm 13.6m3/h DC Axial Fan for Telecommunications

Within telecom cabinets and network equipment, SUNON MF40100V1-100U-F99 serves as a 40 × 40 × 10 mm DC axial fan operating at 5 VDC. A listed input of 0.68 W is the model's notable electrical characteristic. Treat the rated dataset as a primary input to maintenance preparation. Confirm temperature and service-life limits from current data.

MF40101VX-1000U-F99 | SUNON 12V 1.05W 40x40x10mm 8500rpm DC Axial Fan for Telecommunications

The MF40101VX-1000U-F99 is SUNON's 12 VDC, 40 × 40 × 10 mm DC axial fan option for telecom cabinets and network equipment. 8500 rpm is the model's most distinctive operating parameter. During maintenance preparation, compare the model's ventilation capacity. Confirm temperature and service-life limits from current data.

MF30060V2-10000-A99 | SUNON 5V 0.36W 30x30x6mm 6.3m3/h DC Axial Fan for Telecommunications

The MF30060V2-10000-A99 is SUNON's 5 VDC, 30 × 30 × 6 mm DC axial fan option for telecom cabinets and network equipment. A listed input of 0.36 W is the model's notable electrical characteristic. Use the documented operating point when planning compatibility checking. Reconcile the model code with the required electrical interface.

MF30060V1-10000-A99 | SUNON 5V 0.56W 30x30x6mm 8.3m3/h DC Axial Fan for Telecommunications

SUNON configures MF30060V1-10000-A99 as a 30 × 30 × 6 mm DC axial fan for telecom cabinets and network equipment, operating at 5 VDC. Its 8.3 m³/h airflow rating suits the stated equipment-cooling role. Review its pressure capability during compatibility checking. Reconcile the model code with the required electrical interface.

MF25150V3-10000-A99 | SUNON 5V 0.18W 25x25x15mm 2.2m3/h DC Axial Fan for Telecommunications

Within telecom cabinets and network equipment, MF25150V3-10000-A99 provides a 25 × 25 × 15 mm, 5 VDC DC axial fan configuration. A listed input of 0.18 W is the model's notable electrical characteristic. Treat the dimensional envelope as a primary input to compatibility checking. Reconcile the model code with the required electrical interface.
