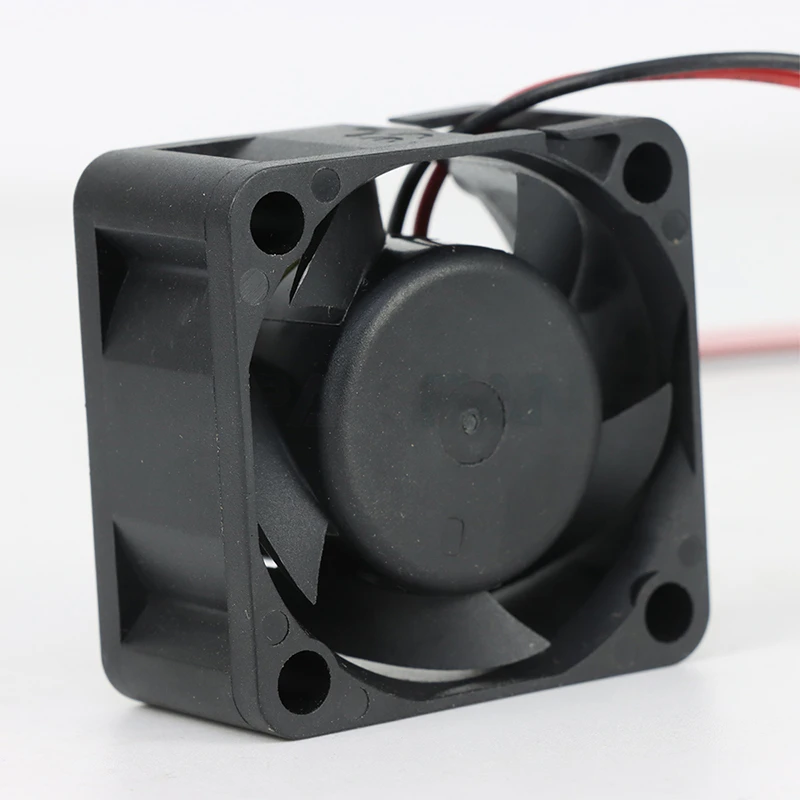

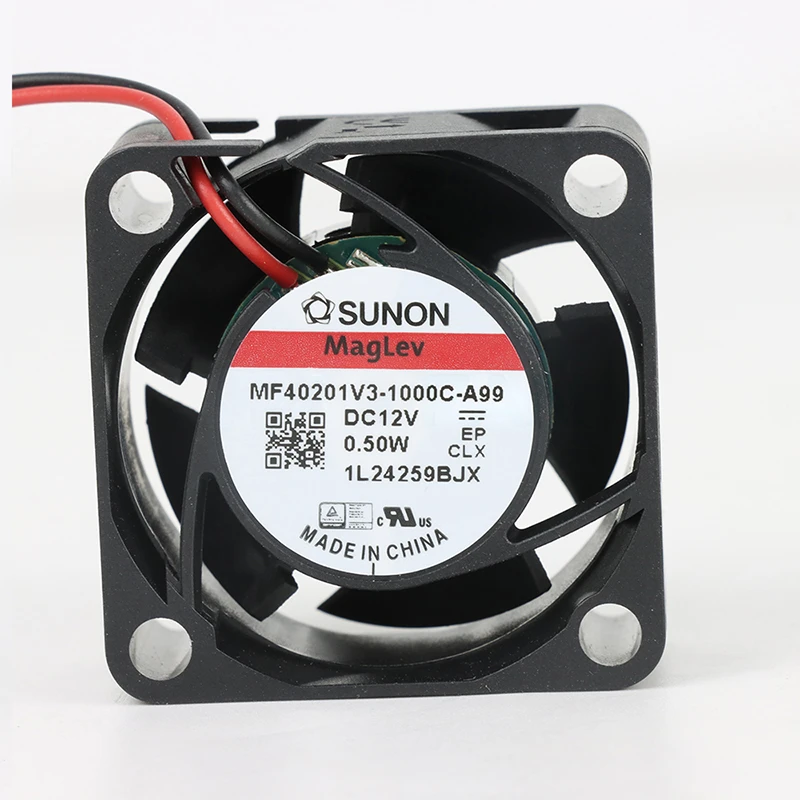

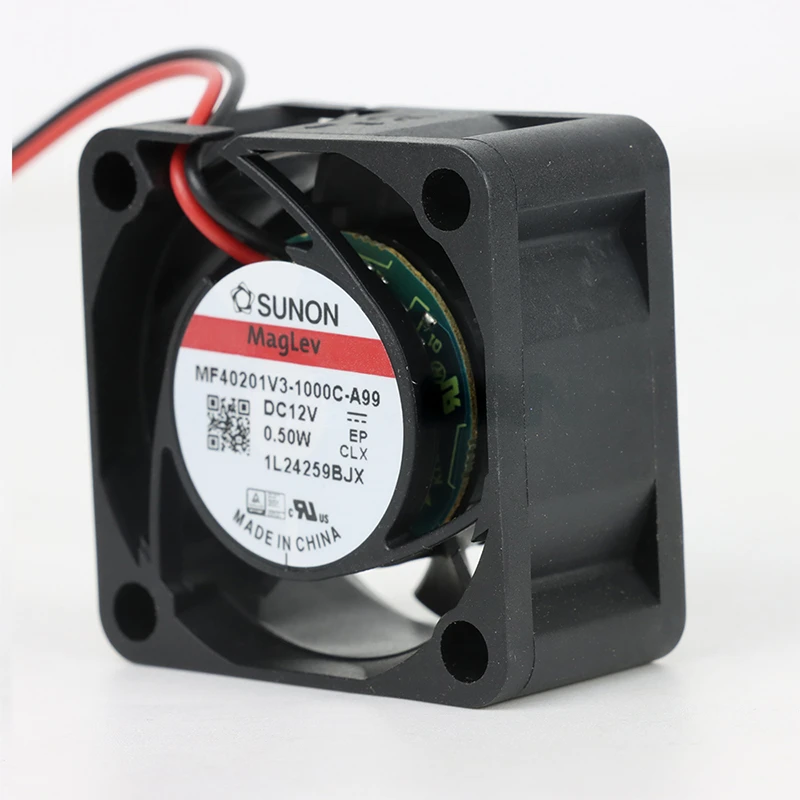

MF40201V3-1000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MF40201V3-1000U-A99 | SUNON 12V 0.5W 40x40x20mm 6.3m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: The 40 × 40 × 20 mm MF40201V3-1000U-A99 brings 12 VDC DC axial fan cooling to telecom cabinets and network equipment. A listed noise value of 16.5 dB is the model's key differentiator. For system-resistance review, start with the supplied equipment fit. Use current model documentation to validate protection choices.

Datasheet:: MF40201V3-1000U-A99 | SUNON 12V 0.5W 40x40x20mm 6.3m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404020
Max.Air Flow(m³/h)	6.3
Input Power(W)	0.5
Speed(rpm)	5000
Noise(db)	16.5

Product Features

MagLev Cooling

The MF40201V3-1000U-A99 from SUNON addresses cooling needs in telecommunications equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Separating cool intake air from warm exhaust limits recirculation and improves heat-transfer effectiveness inside the equipment.

Design approval for MF40201V3-1000U-A99 should cover cable routing together with replacement-fit checks before release. This creates a practical link between thermal validation, purchasing documentation and future servicing. Secure conductors away from the impeller and high-temperature components.

Application Industry

Security Cameras

SUNON MF40201V3-1000U-A99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF40201V3-1000U-A99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF40201V3-1000U-A99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What voltage is required by MF40201V3-1000U-A99?

The listed rating is 12 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

What airflow value is listed for MF40201V3-1000U-A99?

The worksheet lists up to 6.3 m³/h. Verify the operating point against system resistance.

What installation checks apply to MF40201V3-1000U-A99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Which performance figures define MF40201V3-1000U-A99?

Use the listed voltage, size, 6.3 m³/h airflow, 5000 rpm, and 0.5 W input for preliminary comparison.

What certification information is listed for MF40201V3-1000U-A99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.
