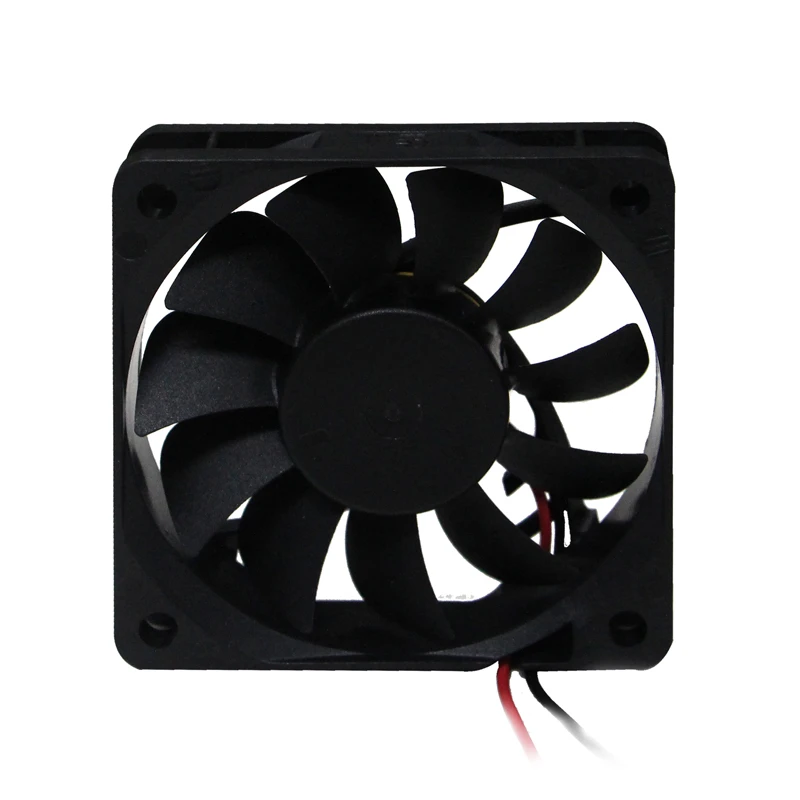

MF60152V1-10000-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MF60152V1-10000-A99 | SUNON 24V 1.8W 60x60x15mm 44.9m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: MF60152V1-10000-A99 addresses telecom cabinets and network equipment through a 24 VDC DC axial fan platform measuring 60 × 60 × 15 mm. 44.8 Pa maximum pressure is the standout documented duty-point value. Base equipment integration on the stated cooling output. Request the exact performance curve for final engineering signoff.

Datasheet:: MF60152V1-10000-A99 | SUNON 24V 1.8W 60x60x15mm 44.9m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	60x60x15mm
Max.Air Flow(m³/h)	44.9
Max.Pressure(Pa)	44.8
Input Power(W)	1.8
Speed(rpm)	4700
Noise(db)	34.2

Product Features

MagLev Cooling

The MF60152V1-10000-A99 from SUNON addresses cooling needs in telecommunications equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Matching the fan curve to the finished airflow path supports efficient cooling without unnecessary speed or power consumption.

When qualifying MF60152V1-10000-A99, give specific attention to service access. Use thermal-load testing before design lock to align enclosure cooling, mechanical integration and lifecycle sourcing expectations. Retain access for inspection, cleaning and replacement after installation.

Application Industry

Security Cameras

SUNON MF60152V1-10000-A99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF60152V1-10000-A99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF60152V1-10000-A99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What installation checks apply to MF60152V1-10000-A99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Which performance figures define MF60152V1-10000-A99?

Use the listed voltage, size, 44.9 m³/h airflow, 4700 rpm, and 1.8 W input for preliminary comparison.

Can MF60152V1-10000-A99 serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

How is MF60152V1-10000-A99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for MF60152V1-10000-A99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.
