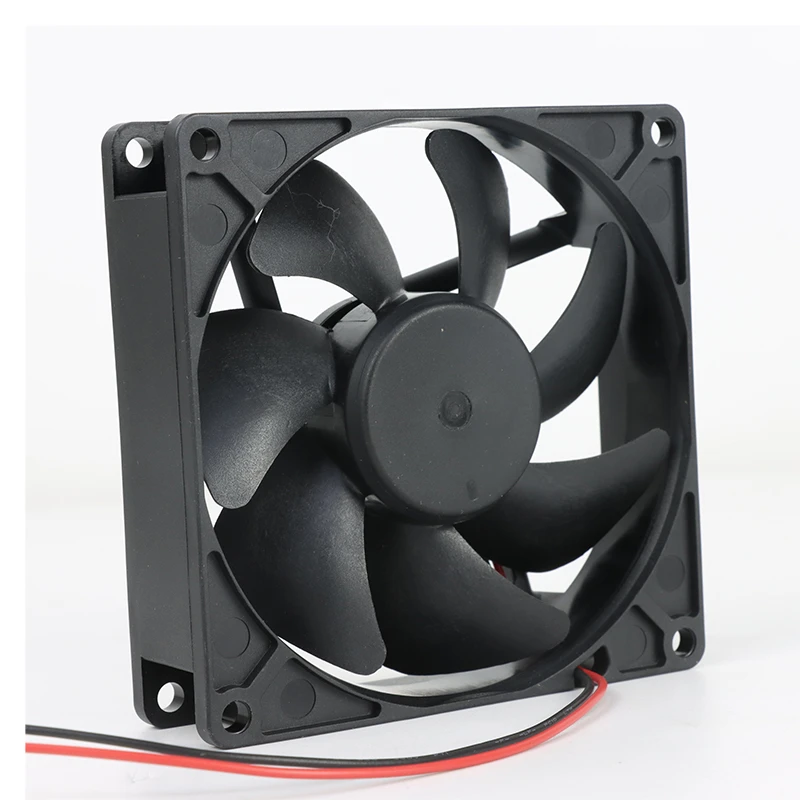

MF92251V3-1000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MF92251V3-1000U-A99 | SUNON 12V 0.9W 92x92x25mm 67.1m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: SUNON MF92251V3-1000U-A99 combines a 92 × 92 × 25 mm DC axial fan platform with a 12 VDC rating for telecom cabinets and network equipment. Its 2400 rpm rating defines a lower-speed operating point. Review its dimensional envelope during thermal validation. Review connector, alarm, and sensor options separately.

Datasheet:: MF92251V3-1000U-A99 | SUNON 12V 0.9W 92x92x25mm 67.1m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	92x92x25mm
Max.Air Flow(m³/h)	67.1
Max.Pressure(Pa)	24.9
Input Power(W)	0.9
Speed(rpm)	2400
Noise(db)	28

Product Features

MagLev Cooling

Equipment builders can integrate SUNON MF92251V3-1000U-A99, a DC brushless axial fan, into telecommunications equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market.

System designers selecting MF92251V3-1000U-A99 should account for filter loading, then schedule environmental checks before ordering. This approach links equipment cooling needs with practical procurement and service decisions. Check that the selected variant suits the specified operating surroundings. The final assembly should be tested under its expected thermal load.

Application Industry

Security Cameras

SUNON MF92251V3-1000U-A99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF92251V3-1000U-A99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF92251V3-1000U-A99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What noise data are available for MF92251V3-1000U-A99?

The worksheet lists 28 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What should be checked if MF92251V3-1000U-A99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What bearing information is confirmed for MF92251V3-1000U-A99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

Which performance figures define MF92251V3-1000U-A99?

Use the listed voltage, size, 67.1 m³/h airflow, 2400 rpm, and 0.9 W input for preliminary comparison.

Can MF92251V3-1000U-A99 serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

How is MF92251V3-1000U-A99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.
