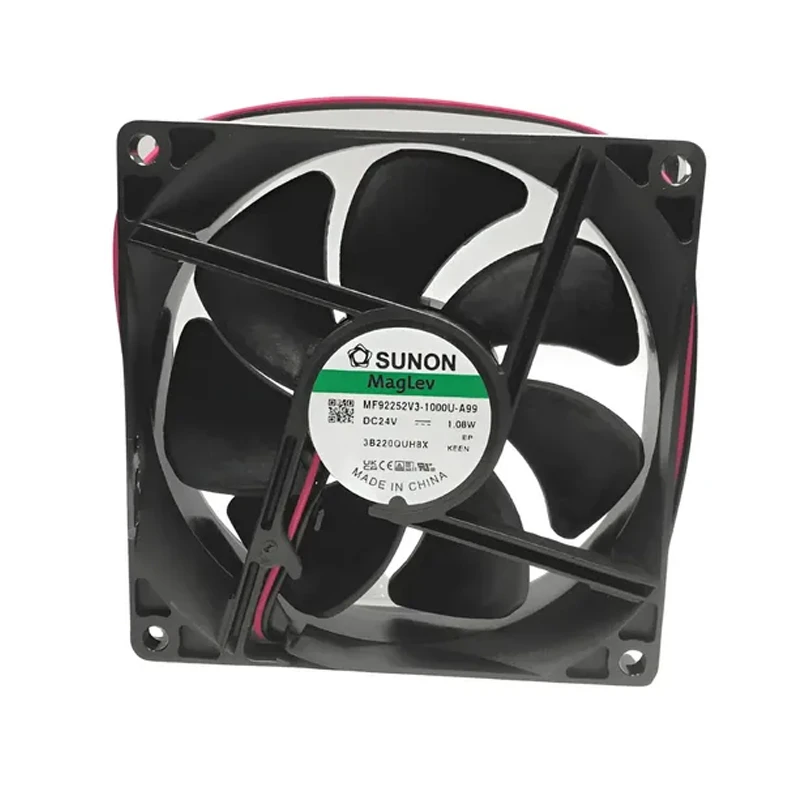

MF92252V3-1000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MF92252V3-1000U-A99 | SUNON 24V 1.01W 92x92x25mm 67.1m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: Within telecom cabinets and network equipment, SUNON MF92252V3-1000U-A99 serves as a 92 × 92 × 25 mm DC axial fan operating at 24 VDC. Its 2400 rpm rating defines a lower-speed operating point. Base procurement comparison on the stated sound level. Use the latest specification for frequency and tolerance limits.

Datasheet:: MF92252V3-1000U-A99 | SUNON 24V 1.01W 92x92x25mm 67.1m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x25mm
Max.Air Flow(m³/h)	67.1
Max.Pressure(Pa)	24.9
Input Power(W)	1.01
Speed(rpm)	2400
Noise(db)	28

Product Features

MagLev Cooling

Equipment builders can integrate SUNON MF92252V3-1000U-A99, a DC brushless axial fan, into telecommunications equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market.

For MF92252V3-1000U-A99 integration, prioritize inlet clearance. Include system-resistance review in engineering approval, and confirm the full model interface before ordering. This supports reliable cooling and traceable purchasing. Include filters, vents and grilles when checking available airflow. The final assembly should be tested under its expected thermal load.

Application Industry

Security Cameras

SUNON MF92252V3-1000U-A99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF92252V3-1000U-A99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF92252V3-1000U-A99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What should be checked if MF92252V3-1000U-A99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to MF92252V3-1000U-A99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

How should MF92252V3-1000U-A99 be matched to an enclosure?

Review its 92 × 92 × 25 mm size, 67.1 m³/h airflow, 24.9 Pa pressure, system resistance, and available mounting space.

What equipment can use MF92252V3-1000U-A99?

It is listed for telecom cabinets and network equipment. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

What protection rating does MF92252V3-1000U-A99 have?

The exact IP or protection option is not stated in the supplied row. Confirm the full suffix in the applicable SUNON datasheet.

What maintenance is recommended for MF92252V3-1000U-A99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.
