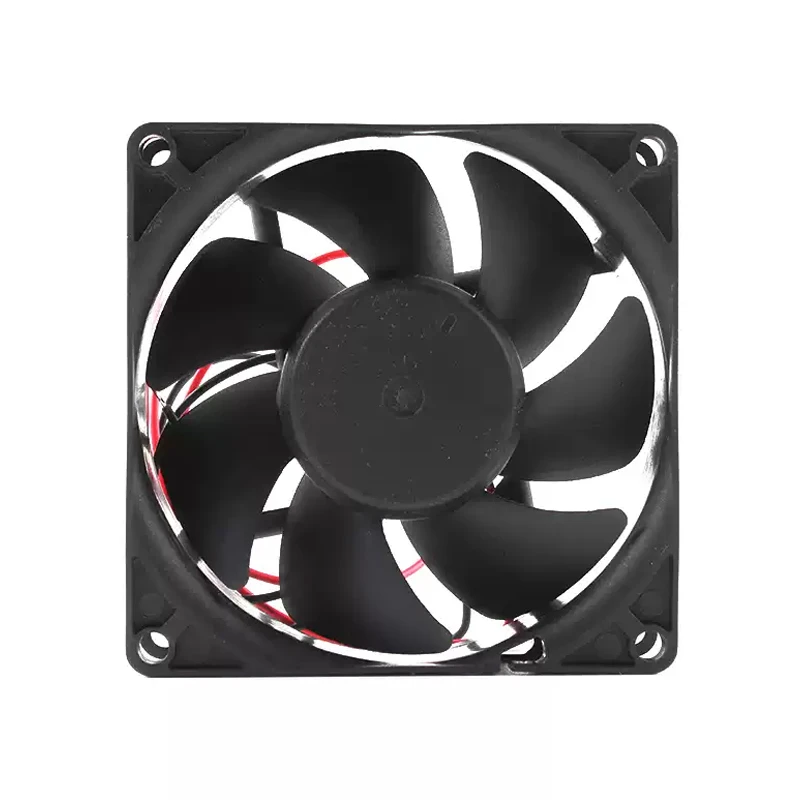

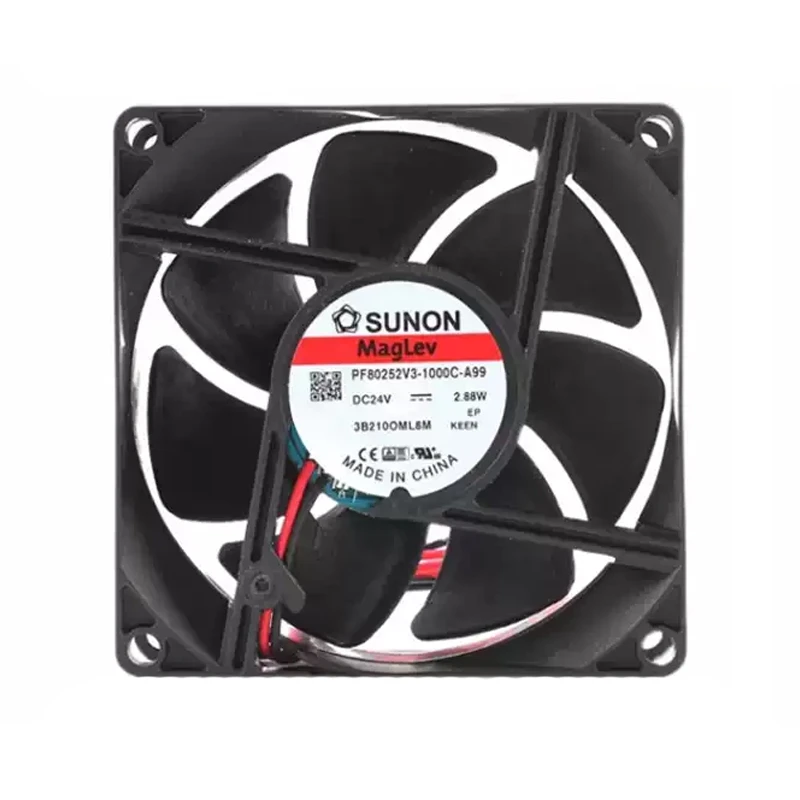

PF80252V3-1000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: PF80252V3-1000U-A99 | SUNON 24V 2.88W 80x80x25mm 90.1m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Sized for servers and data-center electronics, SUNON PF80252V3-1000U-A99 is a 24 VDC DC axial fan in a 80 × 80 × 25 mm frame. Up to 90.1 m³/h is its most prominent listed performance figure. The recorded catalog specification should guide acoustic assessment. Match the exact part number before approving a substitute.

Datasheet:: PF80252V3-1000U-A99 | SUNON 24V 2.88W 80x80x25mm 90.1m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	90.1
Input Power(W)	2.88
Speed(rpm)	4200
Noise(db)	41.5

Product Features

MagLev Cooling

The PF80252V3-1000U-A99 from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

When qualifying PF80252V3-1000U-A99, give specific attention to service access. Use acoustic evaluation during prototype approval to align enclosure cooling, mechanical integration and lifecycle sourcing expectations. Retain access for inspection, cleaning and replacement after installation.

Application Industry

Industrial Equipment

SUNON PF80252V3-1000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Why choose PF80252V3-1000U-A99 over a general cooling fan?

Its documented 24 VDC rating and up to 90.1 m³/h is its most prominent listed performance figure. allow comparison with the required duty point without assuming unlisted options.

What voltage is required by PF80252V3-1000U-A99?

The listed rating is 24 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

What should be checked if PF80252V3-1000U-A99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to PF80252V3-1000U-A99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Which performance figures define PF80252V3-1000U-A99?

Use the listed voltage, size, 90.1 m³/h airflow, 4200 rpm, and 2.88 W input for preliminary comparison.
