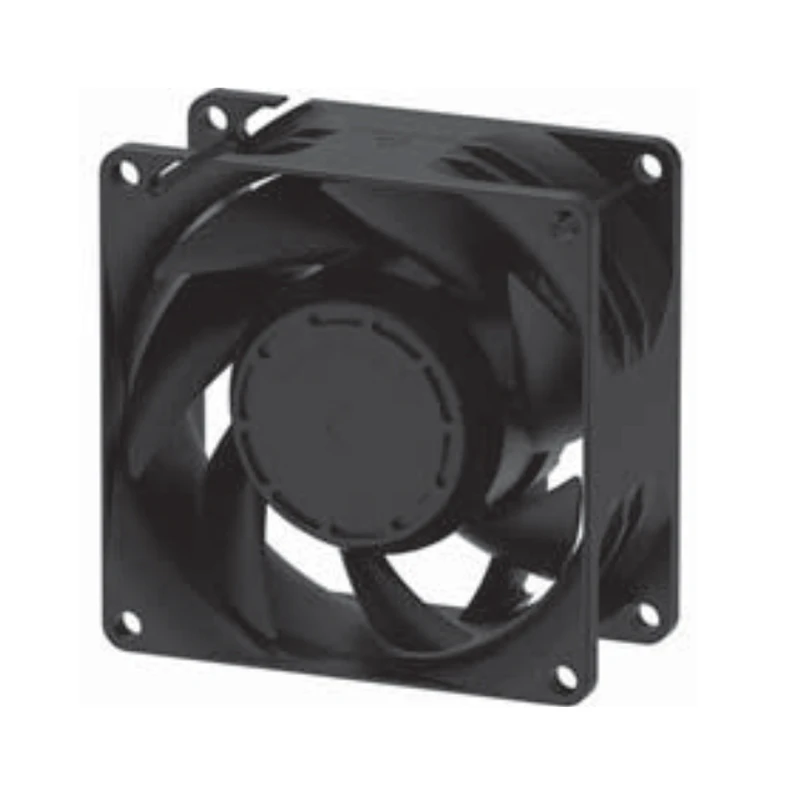

PF80381B1-10000-A9H SUNON Axial Fan

Brand :: SUNON

Model:: PF80381B1-10000-A9H | SUNON 12V 21.6W 80x80x38mm 193.5m3/h DC Axial Fan for Data Center Cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For thermal management in servers and data-center electronics, the PF80381B1-10000-A9H provides a 12 VDC DC axial fan configuration measuring 80 × 80 × 38 mm. 667.6 Pa maximum pressure is the standout documented duty-point value. Review its electrical load during operating-cost analysis. Validate mounting and wiring from the model drawing.

Datasheet:: PF80381B1-10000-A9H | SUNON 12V 21.6W 80x80x38mm 193.5m3/h DC Axial Fan for Data Center Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	80x80x38mm
Max.Air Flow(m³/h)	193.5
Max.Pressure(Pa)	667.6
Input Power(W)	21.6
Speed(rpm)	11200
Noise(db)	63.4

Product Features

Reliable Fan Cooling

SUNON PF80381B1-10000-A9H is a DC brushless axial fan for server and data-center equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

Before adopting PF80381B1-10000-A9H, engineers should evaluate mounting rigidity. Carry out duty-point validation in equipment qualification so the chosen fan can be released with clear installation and sourcing requirements. Use a firm support surface to limit movement at the fan frame.

Application Industry

Server Cooling

SUNON PF80381B1-10000-A9H serves server platforms. Airflow around processors, memory and power components helps address sustained computing loads. The fan gives OEM equipment a defined air route and supports stable server operation. It supports reliable equipment cooling.

Storage Systems

SUNON PF80381B1-10000-A9H serves storage equipment. Airflow around drives, controllers and power assemblies helps address continuous data workloads. The fan gives OEM equipment a defined air route and supports reliable storage availability. It supports reliable equipment cooling.

Edge Computing

SUNON PF80381B1-10000-A9H serves edge-computing systems. Airflow around compact processing and communication modules helps address high heat density. The fan gives OEM equipment a defined air route and supports consistent thermal control. It supports reliable equipment cooling.

Data Center Equipment

SUNON PF80381B1-10000-A9H serves data-center equipment. Airflow around critical computing assemblies helps address round-the-clock heat generation. The fan gives OEM equipment a defined air route and supports infrastructure availability. It supports reliable equipment cooling.

Frequently Asked Questions

What installation checks apply to PF80381B1-10000-A9H?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

What input power is listed for PF80381B1-10000-A9H?

The worksheet lists 21.6 W input. Check supply capacity and operating conditions before commissioning.

What certification information is listed for PF80381B1-10000-A9H?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is PF80381B1-10000-A9H electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for PF80381B1-10000-A9H?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.
